6.6.5 ExcutingAdvance

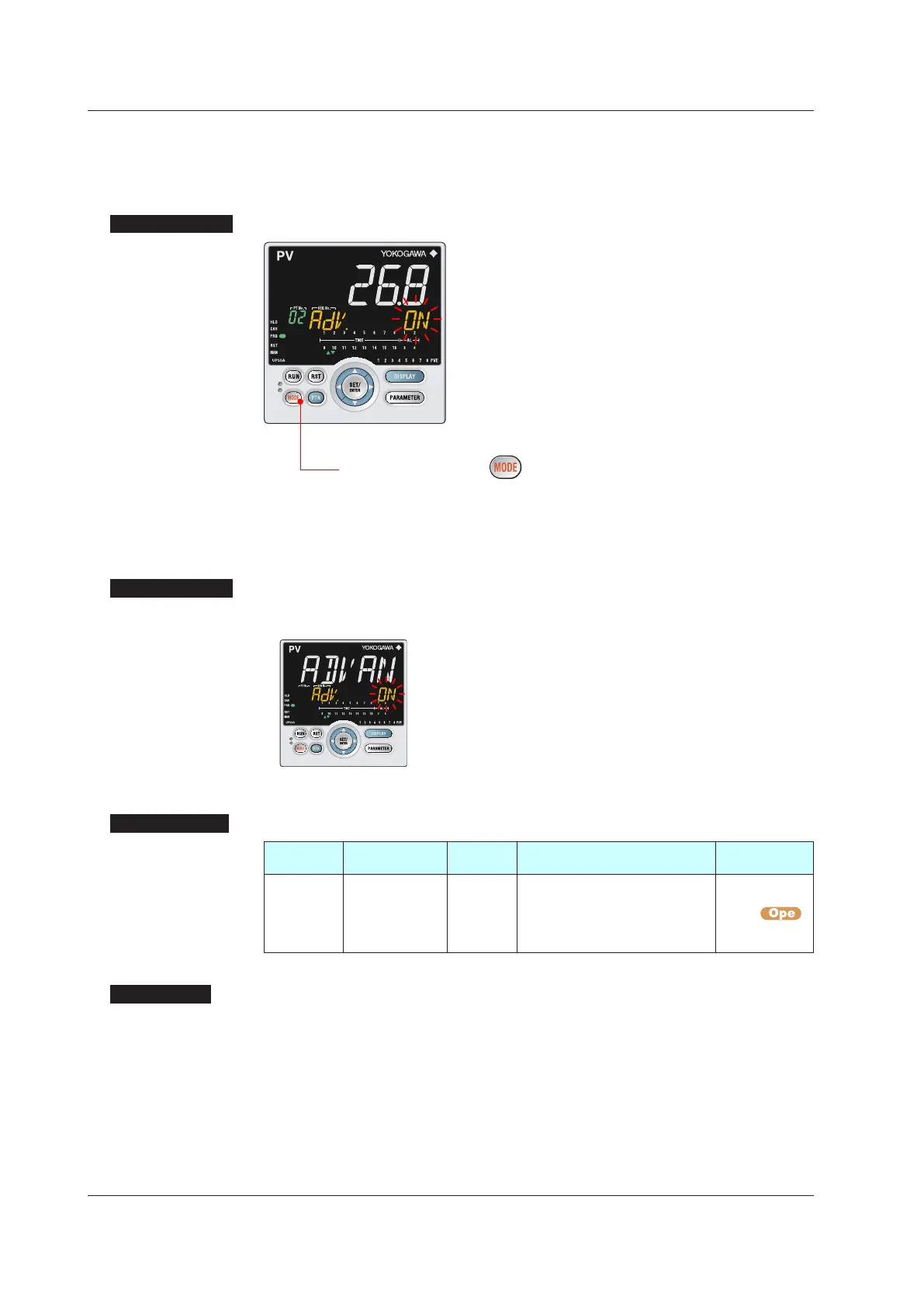

SelectingbyMODEKey
SettingDisplay
Each time you press the key,
Operation modes is switched.
Display ADV ON (blinking), and press the SET/ENTER key.
SelectingbyOperationModeParameter
SettingDisplay
Parameter Setting Display
Operation Display > PARAMETER key for 3 seconds (to
[MODE] Menu Display) > SET/ENTER key (The setting
parameter is displayed.) > Downarrow key (The setting
parameter is displayed.)
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
ADV.
Advance of
segment
EASY
OFF: -
Display during program operation.
Set as “ADV = ON” to advance
from the current segment to the
next segment.
MODE
Description
Advance switching can be performed during program operation.
Advance switching can be performed by any of the following:
(1) MODE key
(2) Operation mode parameter
(3) Contact input
(4) Communication
After switching is performed by the above (1) or (2), the display is switched to SP Display.
► Switch by contact input: 12.1 Setting Contact Input Function
