Program Pattern Functions
9
9.8.5 Segmentswitching(thecontrollerswitchestoalocalsetpointwhenthe
segmentiscompletedafterrelease)(JC=W.SL1toW.SL5)

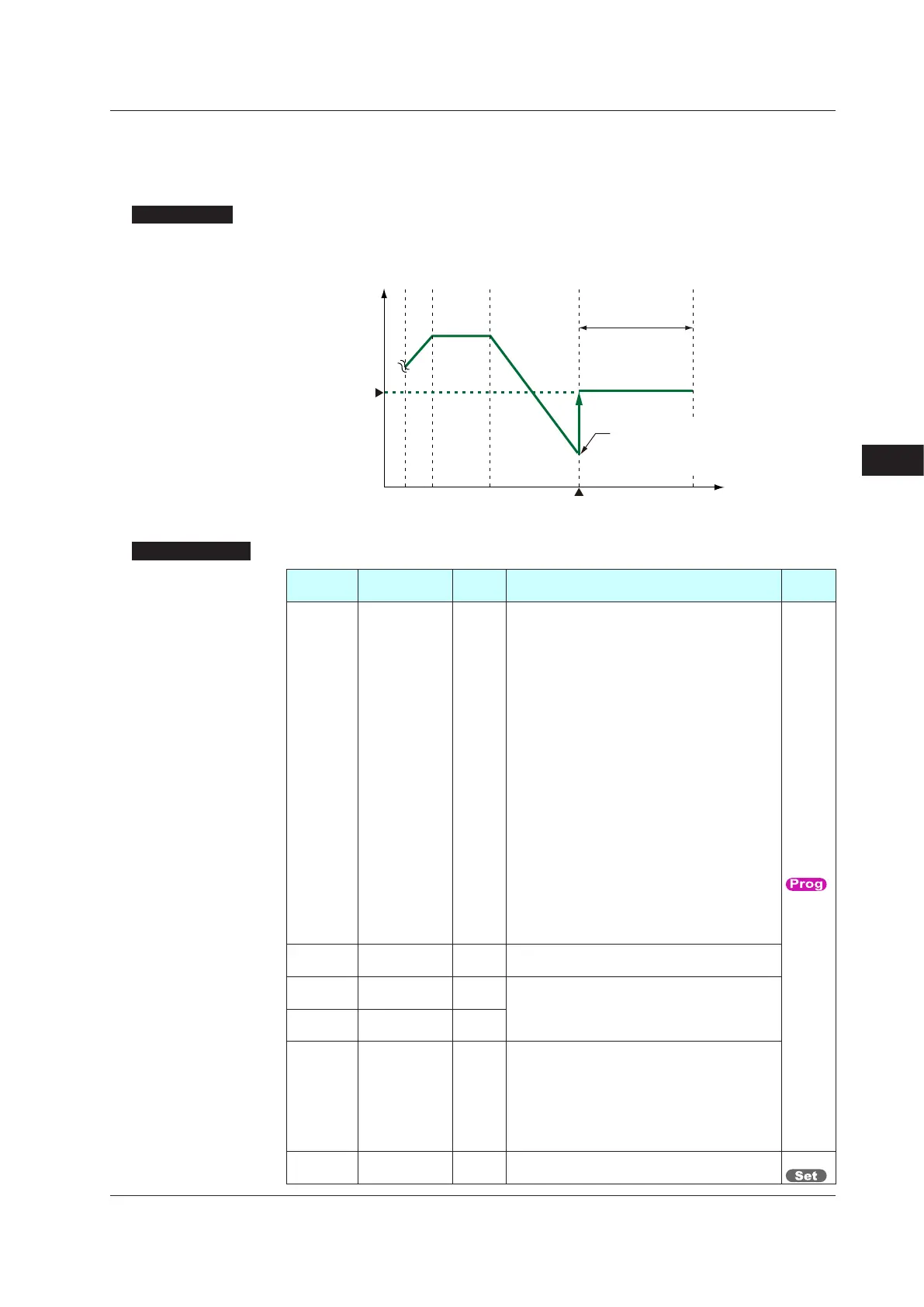

Description
The stand-by action is performed in the last segment of program operation and the state
becomes the local operation state after the stand-by state is released.
The wait operation works.
Local operation starts after
releasing wait action.
Setpoint
Time
Program pattern operation stop
Local operation
Local target
setpoint (LSP)
(for control)
Program pattern
for control
Last segment
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange
Menu
symbol
JC Junction code STD
CONT: Switching for continuation
HOLD: Hold-on switching (the controller holds the
end-of-segment setpoint when the segment is
completed, to perform control).
LOC: Local-mode switching (the controller switches to
a local setpoint when the segment is completed).
REM: Remote-mode switching (the controller
switches to a remote setpoint when the segment
is completed).
W.SW1 to W.SW5: Wait during switching between
segments.
W.IV1 to W.IV5: Wait within a segment interval.
W.SL1 to W.SL5: Segment switching (the controller
switches to a local setpoint when the segment is
completed after release.) (5 groups)
W.SR1 to W.SR5: Segment switching (the controller
switches to a remote setpoint when the segment
is completed after release.) (5 groups)
PLK.1 to PLK.30 (PLK.99): Linked to patterns 1 to 30 (99).
INS.: Allows a segment to be added to the end of a
speciedsegment.
DEL.:Allowsaspeciedsegmenttobedeleted.
PROG
WT.SW1to
WT.SW5
Wait function
ON/OFF 1 to 5
STD
OFF: Disable
ON: Enable
WT.UP1to
WT.UP5
Upper-side wait
zone1to5
STD
0.0 to 10.0% of PV input range (EU)
WT.LO1to
WT.LO5
Lower-side wait
zone1to5
STD
WT.TM1to
WT.TM5
Wait time 1 to 5 STD
OFF: No function
0.00 to 999.59 (“hour.minute” or “minute.
second”)
* Available only for the wait time at the segment
switching.
* Use the parameter TMU to set the time unit.
(Common in the instrument.)
TMU
Program time
unit
EASY
HH.MM: hour.minute
MM.SS: minute.second
CTL
9.8SettingtheOperationinSegmentSwitching
