4-5
IM 05P02C41-01EN
Basic Operation
4
4.2
HowtoSetParameters

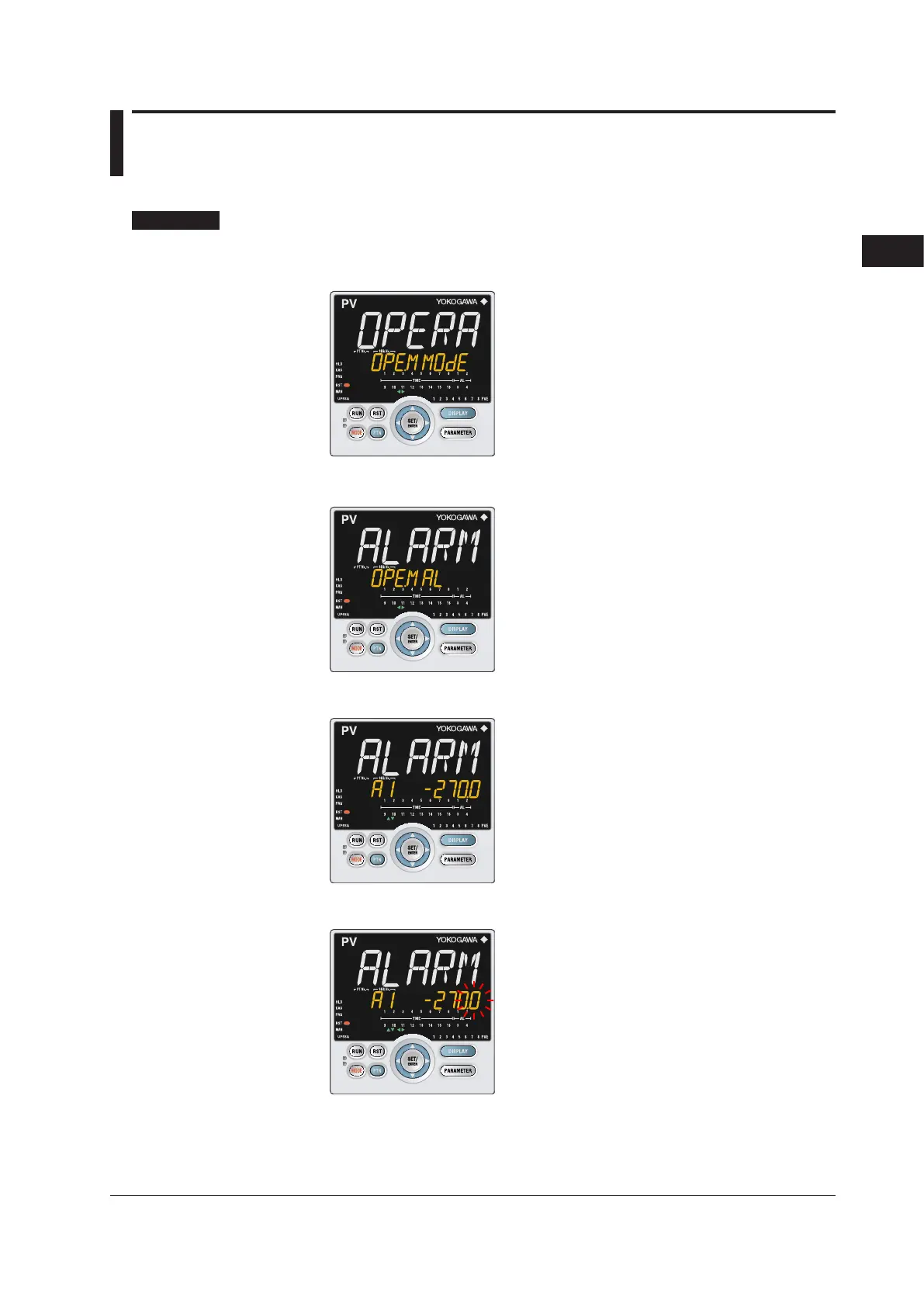

The following operating procedure describes an example of setting alarm setpoint (A1).
Operation
1.
Hold down the
P
ARAMETER
key for 3 seconds in the Operation Display to call up
the [
MODE
] Menu Display
.
2.
Press
the
Rightarrow
key to display the [
AL
] Menu Display
.
3.
Press
the
SET/ENTER
key to display the [
A1
] Parameter Setting Display
.
4.
Press
the
SET/ENTER
key to blink the setpoint.
51
53
