13.1.2 MaskingArbitraryDisplayValueinOperationDisplay
Description
Display/non-display of the PV display, Setpoint display, and Status display in the
Operation Display can be set.
Items that you do not want to display can be set to non-display. For example, when the
Setpoint display is set to non-display, SP of the SP Display and OUT of the OUT Display
are not displayed.
When an error at power-on or hardware malfunction error occurs, Operation display
cannot be set to non-display.

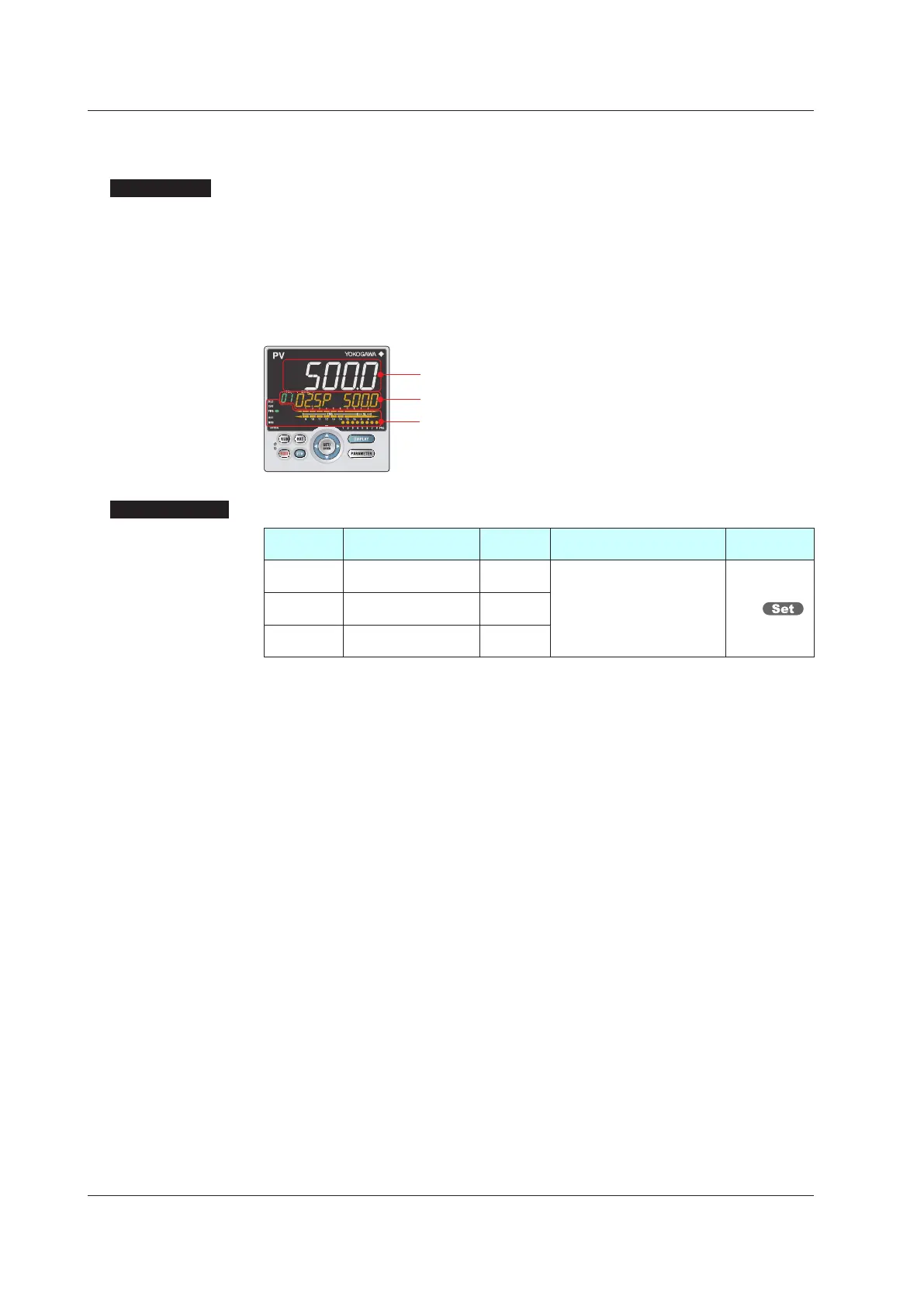

PV display
Setpoint display
Status display
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
PV.D
PV display area ON/
OFF
PRO
OFF: Nondisplay
ON: Display
DISP
SP.D
Setpoint display area
ON/OFF
PRO
STS.D
Status display area
ON/OFF
PRO
