6-20
IM 05P02C41-01EN

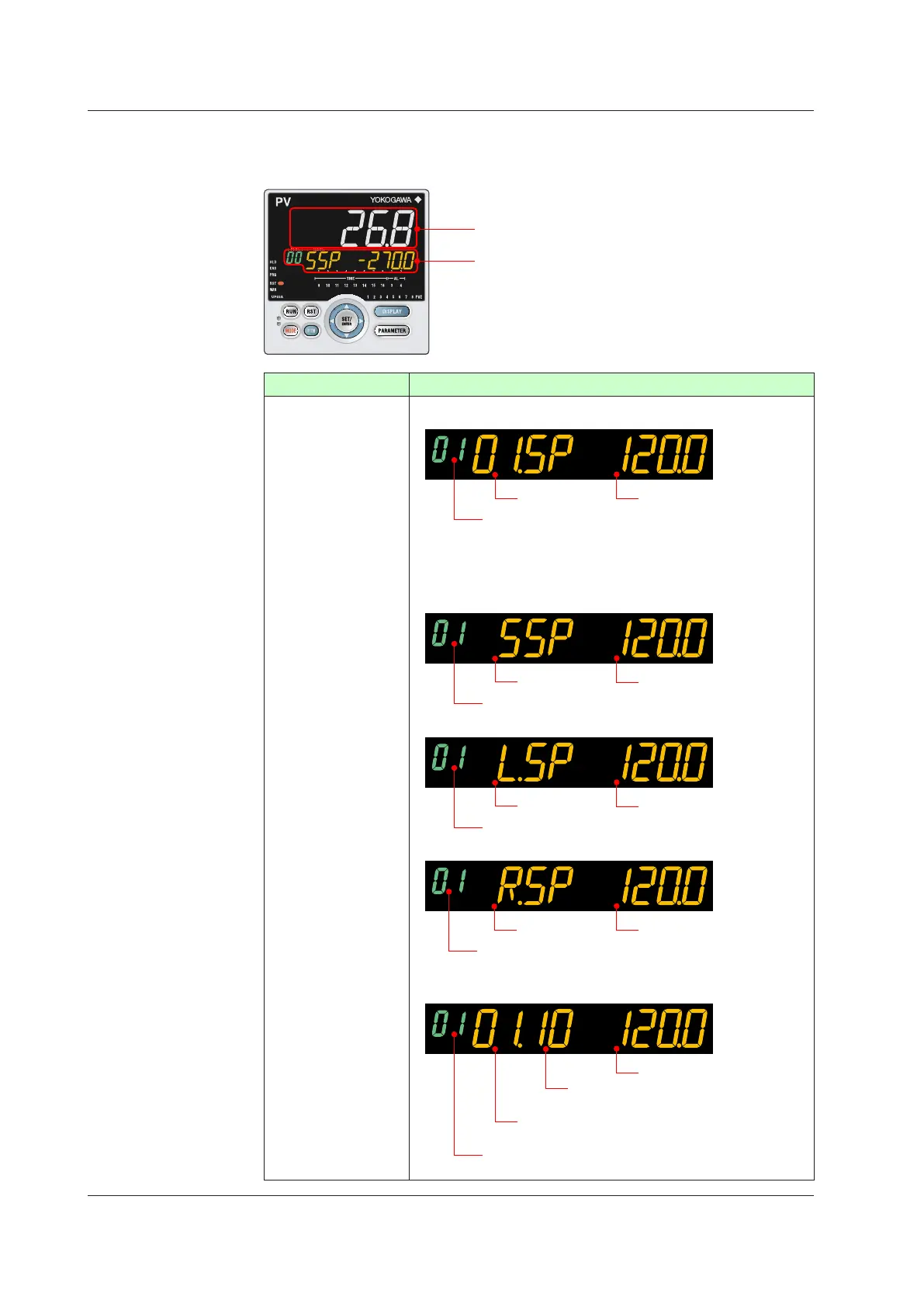

6.1.3 DetailsoftheOperationDisplay
The following is the Operation Display types and each display and operation description.
PV display
Setpoint display
OperationDisplay Displayandoperationdescription
SPDisplay
PV display: Displays measured input value (PV).
Setpoint display: Displays and changes target setpoint (SP).
Symbol
Program setpoint
Program pattern number (PTNO.)
The Display is switched to the SP Display if the operation mode is
switched to AUTO, CAS, LOC, or REM when other Operation Display is
shown.
When the operation mode is reset:
Starting target setpoint
Symbol
Program pattern number (PTNO.)
When the operation mode is local:
Local setpoint
Symbol
Program pattern number (PTNO.)
When the operation mode is remote (REM lamp is lit):
Program pattern number (PTNO.)
Remote setpoint
Symbol
Thegurebelowisdisplayedwhiletherightarrowkeyishelddownon
SP Display.
Program setpoint
The number of segments included
in the selected program pattern.
The segment number for which
operation is in progress.
Program pattern number (PTNO.)
6.1MonitoringandControlofOperationDisplays
To Next Page
