Monitoring and Control of Regular Operations
6

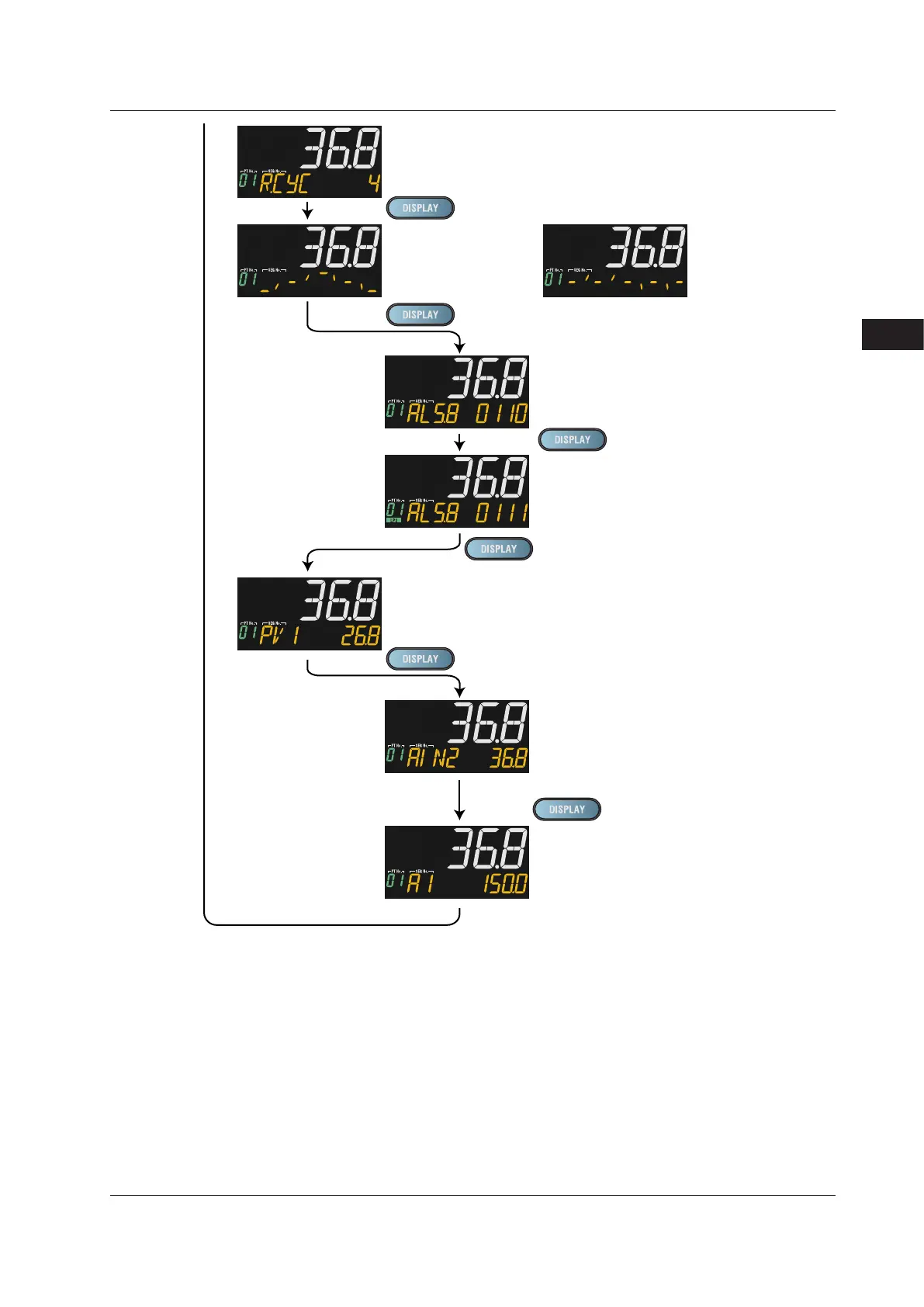

TSP Display
Remaining Segment-time Display
Segment Number Display
Remaining Repetition Display
Program Pattern Display
program pattern (overview)
Can be changed by parameter PTSL.
Soak and ramp display
(Factory default: non-display)
Loop-1 Alarm-5 to -8 Status Display (display only)
Displays "SSP" during reset-mode.
Displays "L.SP" during local-mode operation.
Displays "R.SP" during remote-mode operation.
Displays during program operation.
Displays during program operation.
When the pattern number is 0, 0/0 is displayed.
When pattern number is
0, pattern is not
displayed.
0: On, 1: On
Ex.: Alarm 5: Off, Alarm 6: On, Alarm 7: On,
Alarm 8: Off
(Factory default: non-display) LP2 lamp is lit.
Loop-2 Alarm-5 to -8 Status Display (display only)
0: On, 1: On
Ex.: Alarm 5: Off, Alarm 6: On, Alarm 7: On,
Alarm 8: On
Loop-1 SP Display
Loop-2 SP Display
SELECT Displays 1 to 5
(Displayed only when SELECT Display is registered.
(The figure on the left is the example of
the parameter A1 (alarm-1 setpoint).)
Analog Input Displays (display only)
(Factory default: non-display)
PV: PV analog input,
RSP: RSP analog input (E1-terminal area),
AIN2: AIN2 analog input (E2-terminal area),
AIN4: AIN4 analog input (E4-terminal area)
(Only for each aux. analog input)
PV display: Loop-2 PV
LP2 lamp is lit.
Loop-1 PID Number Display (display only)
(Factory default: non-display)
PV display: Loop-2 PV
Loop-2 PID Number Display (display only)
(Factory default: non-display)
PV display: Loop-2 PV
LP2 lamp is lit.
Loop-2/Loop-1 PV Display (display only)
PV display: Loop-2 PV
Setpoint display: Loop-1 PV
Loop-2 Heating/cooling OUT Display
(OUT can be changed.)
PV display: Loop-2 PV
C: cooling-side OUT, H: heating-side OUT
LP2 lamp is lit.
Dispalys the number of remaining repetitions (R.CYC) on Setpoint display.
This display is displayed only when the repeat function is set and the
operation mode is PROG.
6.1MonitoringandControlofOperationDisplays
