Monitoring and Control of Regular Operations
6

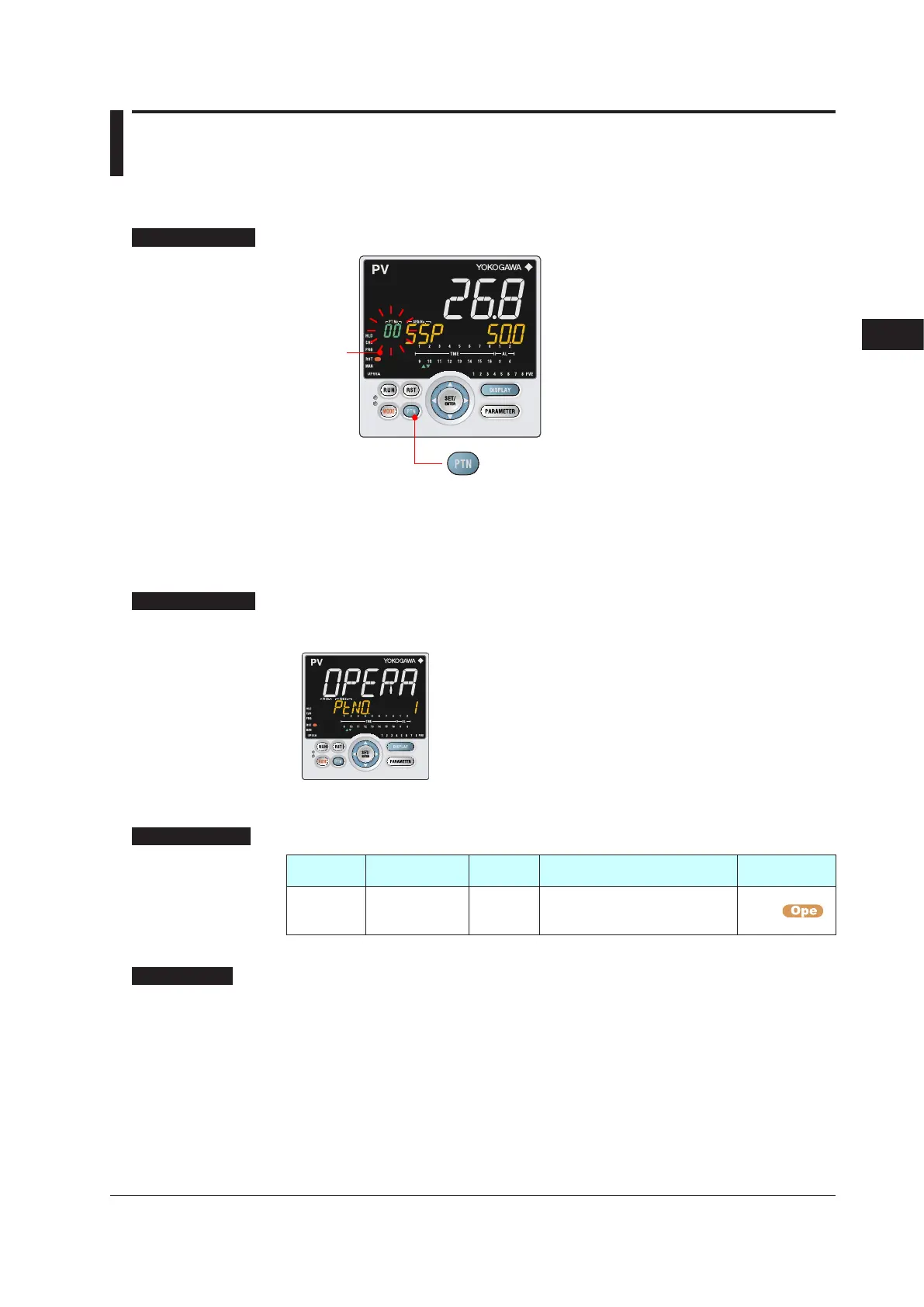

6.5 SelectingProgramPatternNumber(PTNO.)
SelectingbyPTNKey
SettingDisplay
When the PTN key is pressed, the program pattern number
is blinking.
Press the Up or Down arrow key to select the pattern
number.
Press the SET/ENTER key to register the pattern number.
PRG lamp
is unlit.
SelectingbyOperationModeParameter
SettingDisplay
Parameter Setting Display
Operation Display > PARAMETER key for 3 seconds (to
[MODE] Menu Display) > SET/ENTER key (The setting
parameter is displayed.) > Downarrow key (The setting
parameter is displayed.)
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
PTNO.
Program pattern
number selection
EASY
0: Not select program pattern
1 to 30 or 99(99 when the option “/
AP”isspecied)
MODE
Description
Before starting program operation, select the program pattern number to execute.
When a program pattern is not created, or when program operation is being performed,
the program pattern number cannot be selected.
Selecting the program pattern number can be performed by any of the following:
(1) PTN key (The PTN key action can be changed by a parameter)
(2) Operation mode parameter
(3) Contact input
(4) Communication
► Selectionbycontactinput:12.1SettingContactInputFunction
