9.3 SettingtheProgramStartingConditions(STC)
9.3.1 Startingoperationatstartingtargetsetpoint(SSP)(STC=SSP)
Description
The start target setpoint is the target setpoint at which programmed operation starts.
When selected as the start condition, the target setpoint can be changed from the
starting target setpoint (SSP) to the target setpoint (TSP.) This change is made totally
independent of PV, using the (TSP - SSP)/TIME ramp.

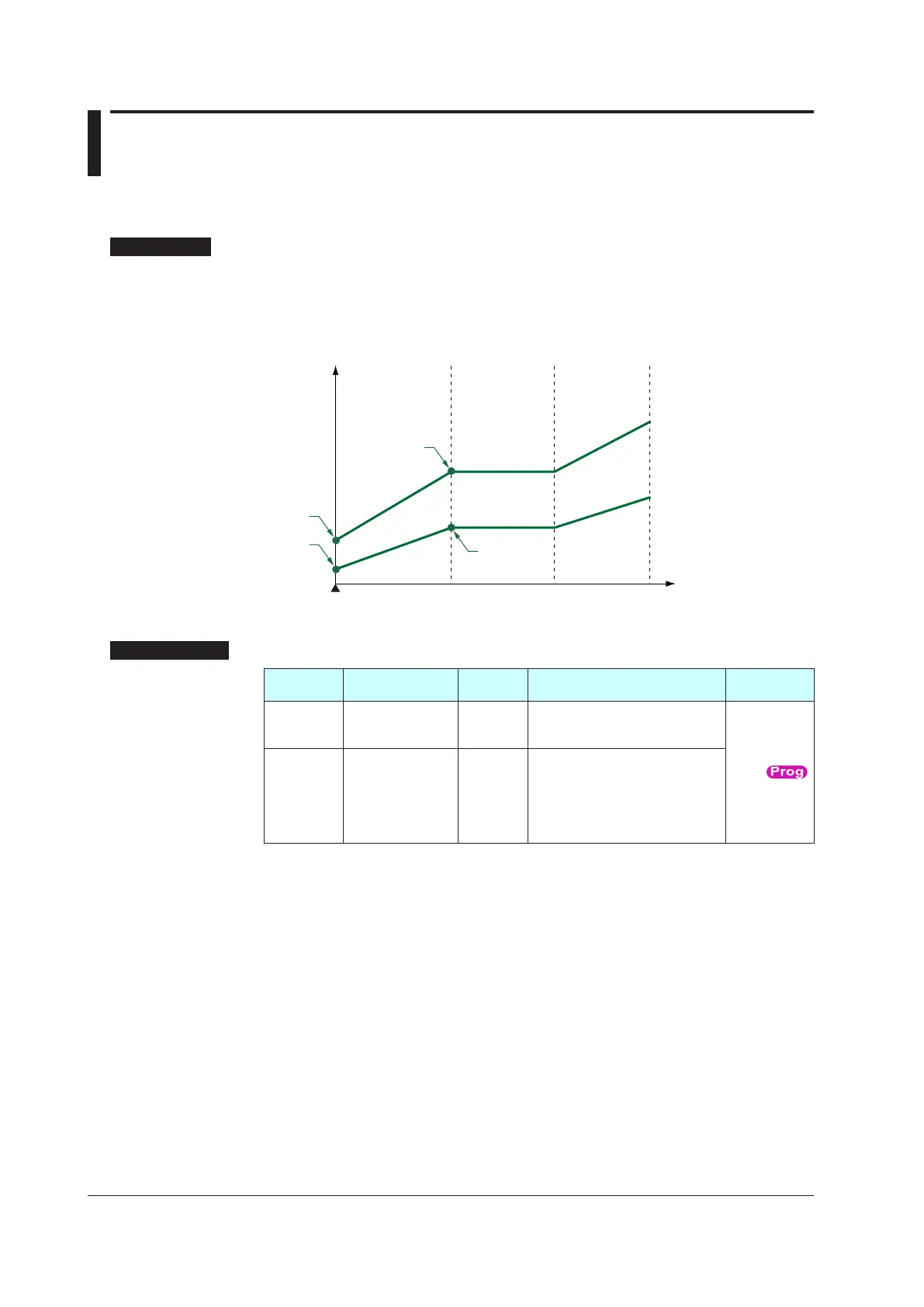

Program operation start (PRG)
Time
TSP
SSP
SSP
Segment 1
Program pattern
for control
Program pattern
for retransmission
Segment 2 Segment 3
Setpoint
TSP
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
SSP
Starting target
setpoint
EASY
0.0 to 100.0% of PV input range
(EU)
(Setting range: P.RL to P.RH)
PROG
STC Start code EASY
SSP: Program operation begins
with the starting target setpoint.
RAMP:Ramp-prioritizedPVstart
TIME:Time-prioritizedPVstart
LSP: Local-mode start
RSP: Remote-mode start
Note 1: When the program pattern-2 retransmission is selected (PT2.G=ON), the second loop is
also displayed for the parameter SSP. (LP2 lamp is lit.)
