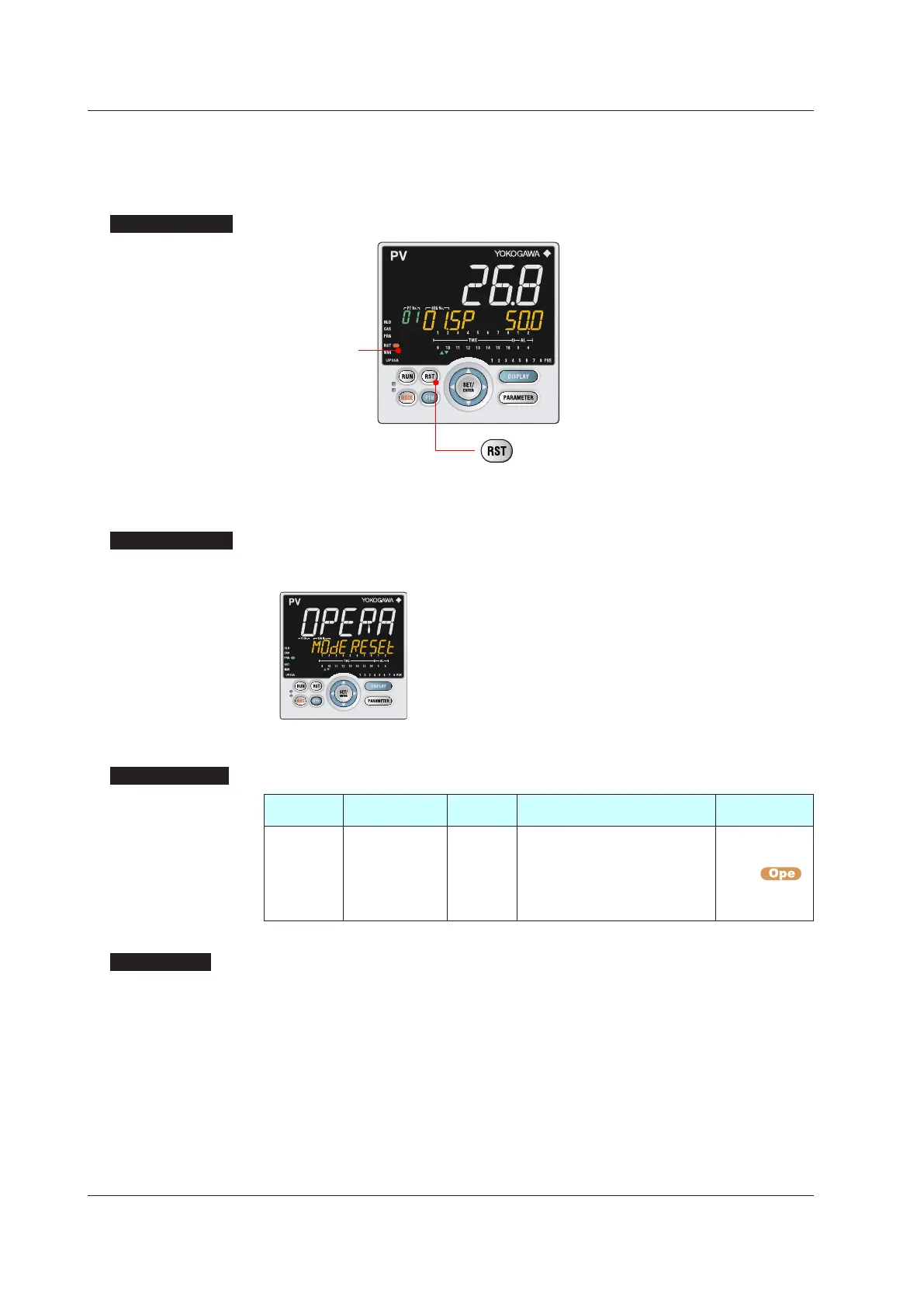

6.6.3 SwitchingtoRESETOperation
SelectingbyRSTKey
SettingDisplay
Press RST key for 1 s.
RST lamp is lit in
RESET mode.
SelectingbyOperationModeParameter
SettingDisplay
Parameter Setting Display
Operation Display > PARAMETER key for 3 seconds (to
[MODE] Menu Display) > SET/ENTER key (The setting
parameter is displayed.) > Downarrow key (The setting
parameter is displayed.)
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
MODE Operation mode EASY
RESET: Stop of program operation
PROG: Start of program operation
LOCAL: Start of local-mode
operation
REM: Start of remote-mode
operation
MODE
Description
Local operation and Remote operation are also stopped.
Switching to RESET can be performed by any of the following:
(1) RST key
(2) Operation mode parameter
(3) Contact input
(4) Communication
(5) MODE key (Can be used when the user function key is not set to "RESET".)
After switching is performed by the above (2) or (5), the display is switched to SP Display.
► Switchbycontactinput:12.1SettingContactInputFunction
► Switchbyuserfunctionkey:13.2AssigningFunctiontoUserFunctionKey
6.6SwitchingOperationModes
