6.9 ChangingSP,TSP,orRemainingSegment-time
(R.TIM)inHOLD-mode
ChangingSPinHOLDOperation
Operation
1

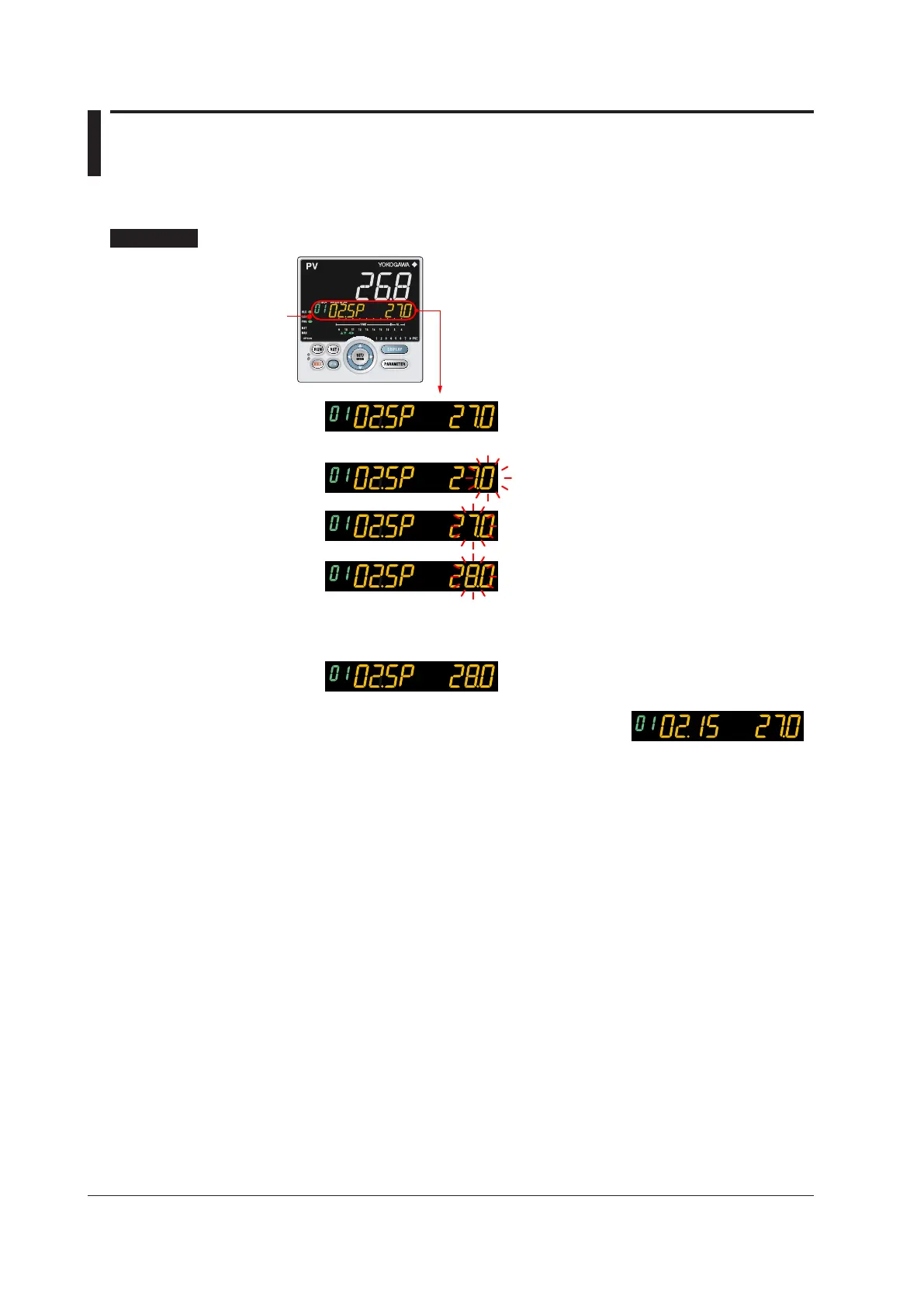

. Display the SP Display, switch to HOLD mode.
See “6.6.4 Enabling/Disabling Hold Mode of
Program Operation.”
2
. Press the SET/ENTER key to move to the
setting mode (the setpoint blinks).
3
. Press the Left arrow key to move one digit to
the left. (Press the Right arrow key to move
one digit to the right.)
4
. Press the Up or Down arrow key to change the
setpoint. Press the Up arrow key when 9 is
displayed to move one digit to the left. Press
the Down arrow key when 0 is displayed to
move one digit to the right.
5
. Press the SET/ENTER key to register the
setpoint.
HLD lamp
is lit
The figure right is displayed while the right arrow key is
held down on SP Display.
(1) The number of segments included in the selected
program pattern.
(2) The segment number for which operation is in
progress.
(2) (1)
