YOKOGAWA UP55A User Manual

6-29
IM 05P02C41-01EN
Monitoring and Control of Regular Operations
6

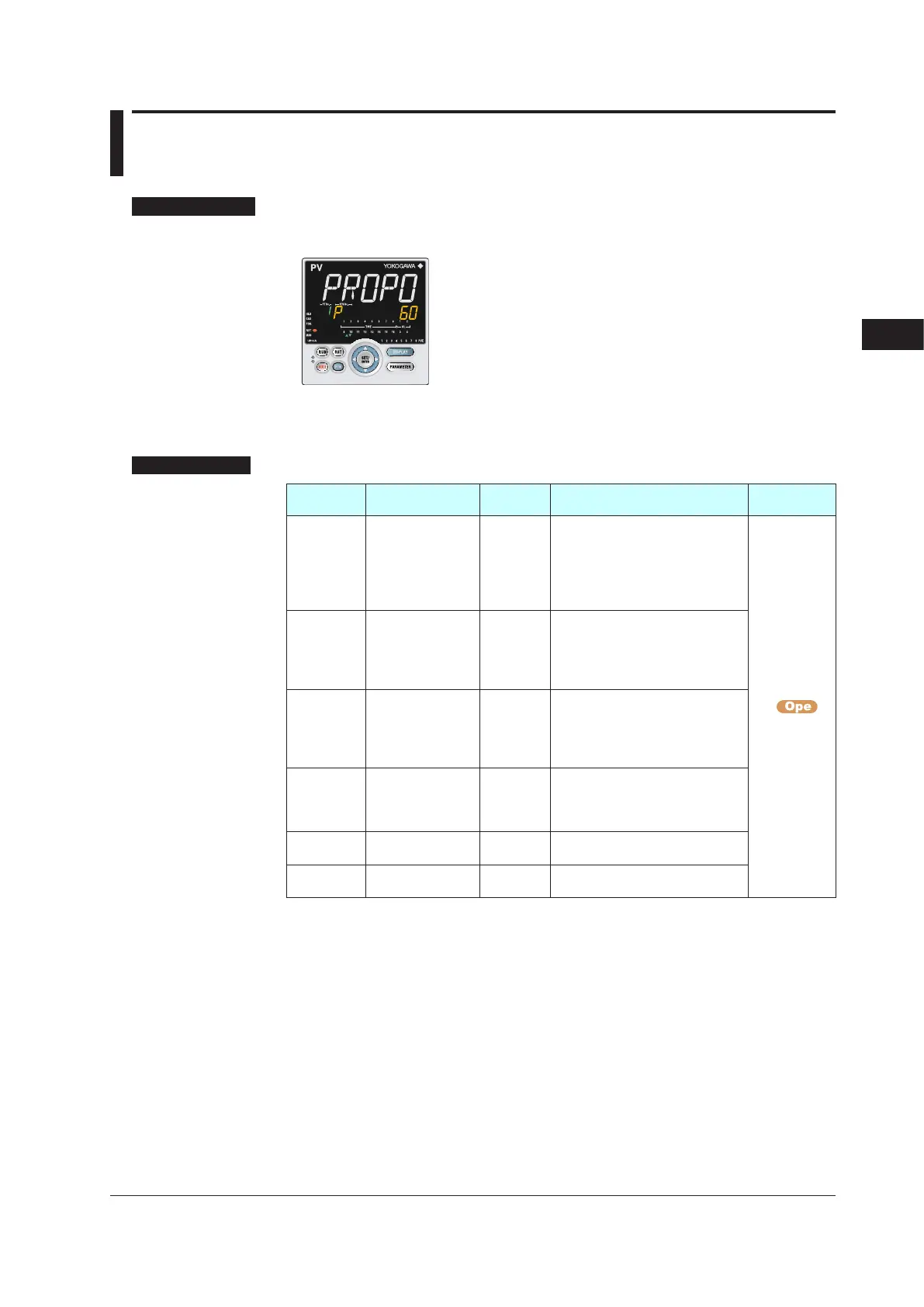

6.3 AdjustingPIDManually
SettingDisplay
Parameter Setting Display
Operation Display > PARAMETER key for 3 seconds (to
[MODE] Menu Display) > Rightarrow key (to [PID] Menu
Display ) > SET/ENTER key (The setting parameter is
displayed.) > Downarrow key (The setting parameter is
displayed.)
In the Setting Display for the PID parameters, Displays can
be arbitrarily switched using the Up, Down, Left or Right arrow
key. Pressing the Left or Right arrow key changes the group.
(The group number is displayed on Group display.)
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
P
Proportional band
Heating-side
proportional band
(in Heating/cooling
control)
EASY
0.0 to 999.9%
When 0.0% is set, it operates as
0.1%.
Heating-side ON/OFF control
applies when 0.0% in Heating/
cooling control
PID
I
Integral time
Heating-side
integral time (in
Heating/cooling
control)
EASY
OFF: Disable
1 to 6000 s
D
Derivative time
Heating-side
derivative time (in
Heating/cooling
control)
EASY
OFF: Disable
1 to 6000 s
Pc
Cooling-side
proportional band
EASY
0.0 to 999.9%
Cooling-side ON/OFF control
applies when 0.0% in Heating/
cooling control
Ic
Cooling-side
integral time
EASY
OFF: Disable
1 to 6000 s
Dc
Cooling-side
derivative time
EASY
OFF: Disable
1 to 6000 s
Note1: In Cascade control, the LP2 lamp is lit while the Loop-2 parameter is displayed.
There are eight groups of PID parameters.
In Cascade control, both Loop 1 and Loop 2 have eight groups.
The PID parameters can be selected by using the following two methods:
(1)SegmentPIDnumberselection
(2)ZonePIDselection
(3) Local PID selection
► Selection by contact input: 12.1 Setting Contact Input Function
► Selection by each Zone: 8.4 Switching PID
