17-27
IM 05P02C41-01EN
Installation and Wiring
17
17.4.15


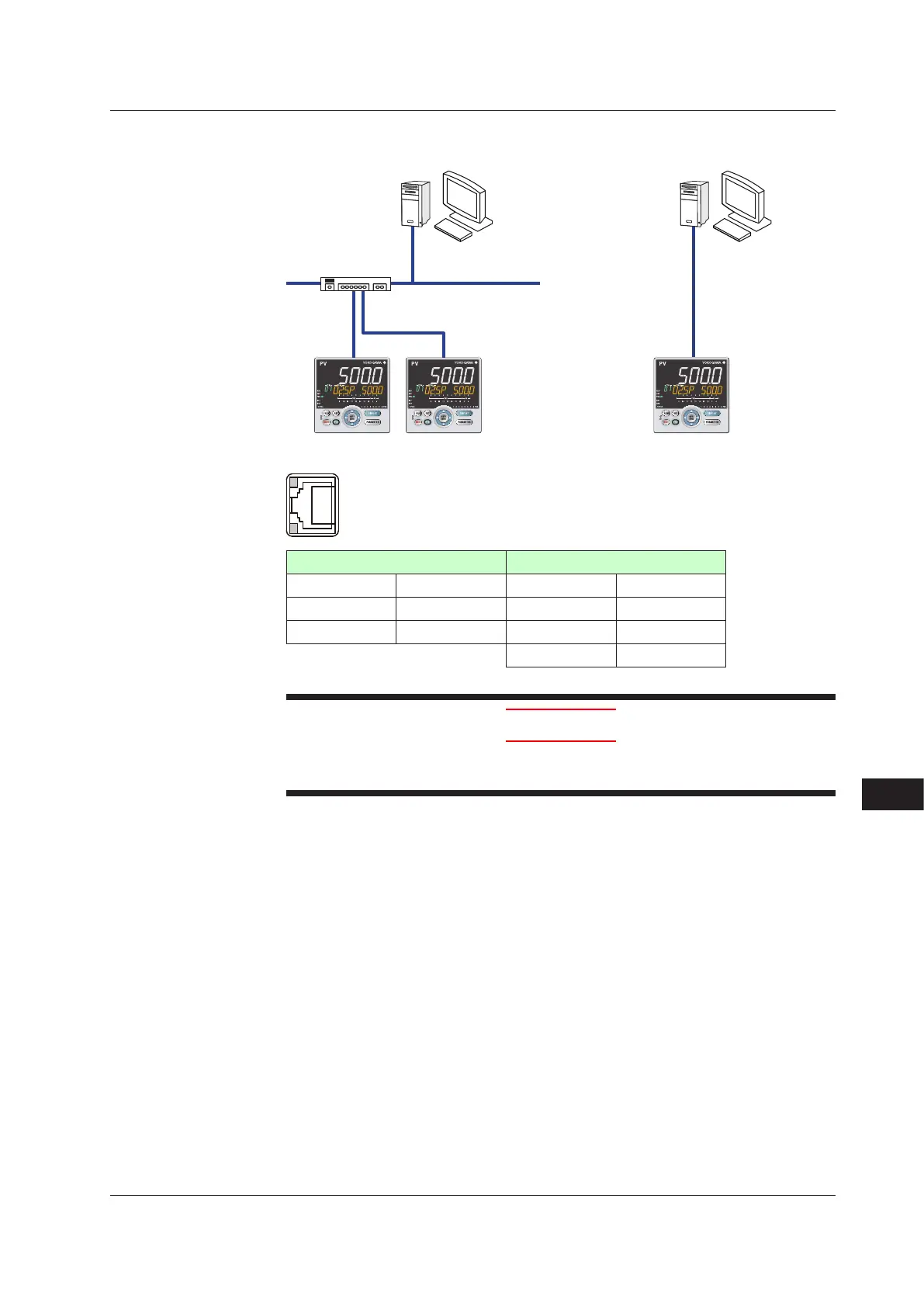

EthernetCommunicationInterfaceWiring
Ethernet
Straight cable
HUB
UP55A
UP55A
Crossing cable
*Devices that can be
connected via Ethernet
*Devices that can be
connected via Ethernet
UP55A
Upper side LED (baud rate)
LowersideLED(linkactivity)
Color
Amber
Color
Green
Lit
100M bps
Lit
Linked
Unlit
10M bps
Blink
Active
Unlit
Link failure

CAUTION
BesuretoconnectalightningarresterforEthernet(100BASE-TX/10BASE-T)inan
environment where a surge voltage may be induced by a lightning discharge.
17.4Wiring
429
431
