IncreasingSegment-timeinSoakSegment
The remaining segment time from the time when the hold state is released can be
changed during the hold operation.
When the remaining segment time is changed in the soak segment and the hold state is
released, the program pattern operation restarts from the changed segment time.
When the segment time is decreased, the segment time and the time of the time event
are shortened by the decreased amount of time.
When the on time or off time of the time event is larger than the changed remaining
segment time, the program works according to the changed remaining segment time.
Seg.1
Seg.2
Seg.2
Seg.3
Seg.3
Seg.4
Seg.4
Seg.5
Seg.5

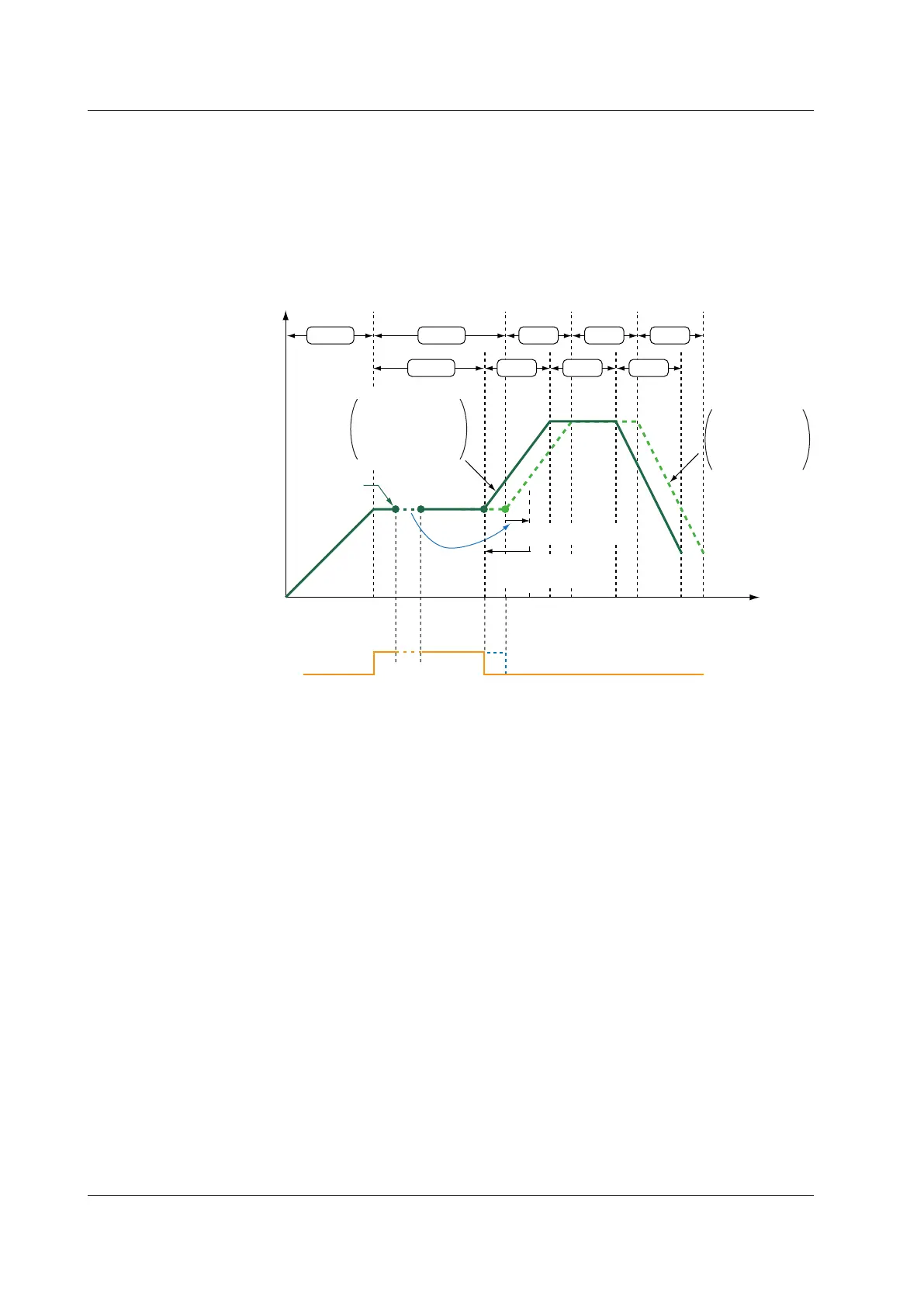

Segment pattern
before the
segment time is
decreased
Decreased remaining
segment-time
Time-event decreased by a
decrement of segment time.
Seg：Segment
Setpoint
Time
Hold interval
（Timer stops）
Time event
TSP：Final target setpoint
On
Off
Current
setpoint
Time delayed by timer stops
Segment pattern
after the segment
time has been
decreased
Before
After
6.9ChangingSP,TSP,orRemainingSegment-time(R.TIM)inHOLD-mode
