YOKOGAWA UP55A User Manual

9-38
IM 05P02C41-01EN

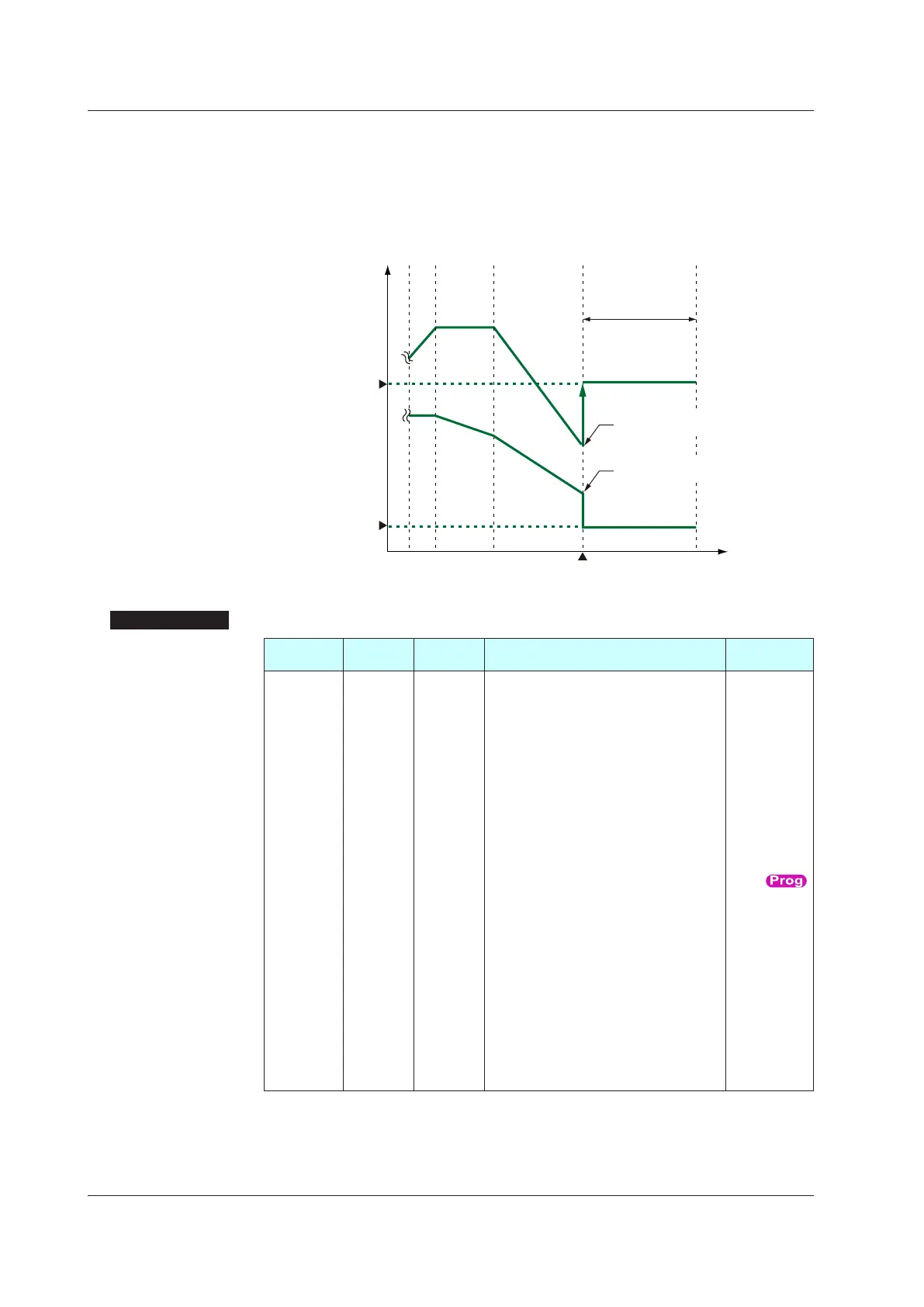

WhensetpointtrackingisOFF
The remote setpoint (RSP) is the target setpoint at the time when the program ends. The
PV event is enabled according to the local event type and setpoint (L.TY1 to LTY8 and
L.EV1 to L.EV8). The time event turns off.
With the retransmission program pattern, the local setpoint (LSP) is the target setpoint at
the time when program operation ends.
SP tracking OFF
SP tracking OFF
Setpoint
Time
Last segment
Program pattern operation stop (PRG→REM)
Remote operation
Local target
setpoint (LSP) in
Local mode.
(for retransmission)
Remote
setpoint (RSP)
(for control)
Program pattern
for control
Program pattern
for retransmission
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
JC
Junction
code
STD
CONT: Switching for continuation
HOLD: Hold-on switching (the controller holds
the end-of-segment setpoint when the
segment is completed, to perform control).
LOC: Local-mode switching (the controller
switches to a local setpoint when the
segment is completed).
REM: Remote-mode switching (the controller
switches to a remote setpoint when the
segment is completed).
W.SW1 to W.SW5: Wait during switching
between segments.
W.IV1 to W.IV5: Wait within a segment interval.
W.SL1 to W.SL5: Segment switching (the
controller switches to a local setpoint when
the segment is completed after release.) (5
groups)
W.SR1 to W.SR5: Segment switching (the
controller switches to a remote setpoint
when the segment is completed after
release.) (5 groups)
PLK.1 to PLK.30 (PLK.99): Linked to patterns
1 to 30 (99).
INS.: Allows a segment to be added to the end
ofaspeciedsegment.
DEL.:Allowsaspeciedsegmenttobe
deleted.
PROG
9.8SettingtheOperationinSegmentSwitching
