YOKOGAWA UP55A User Manual

9-24
IM 05P02C41-01EN

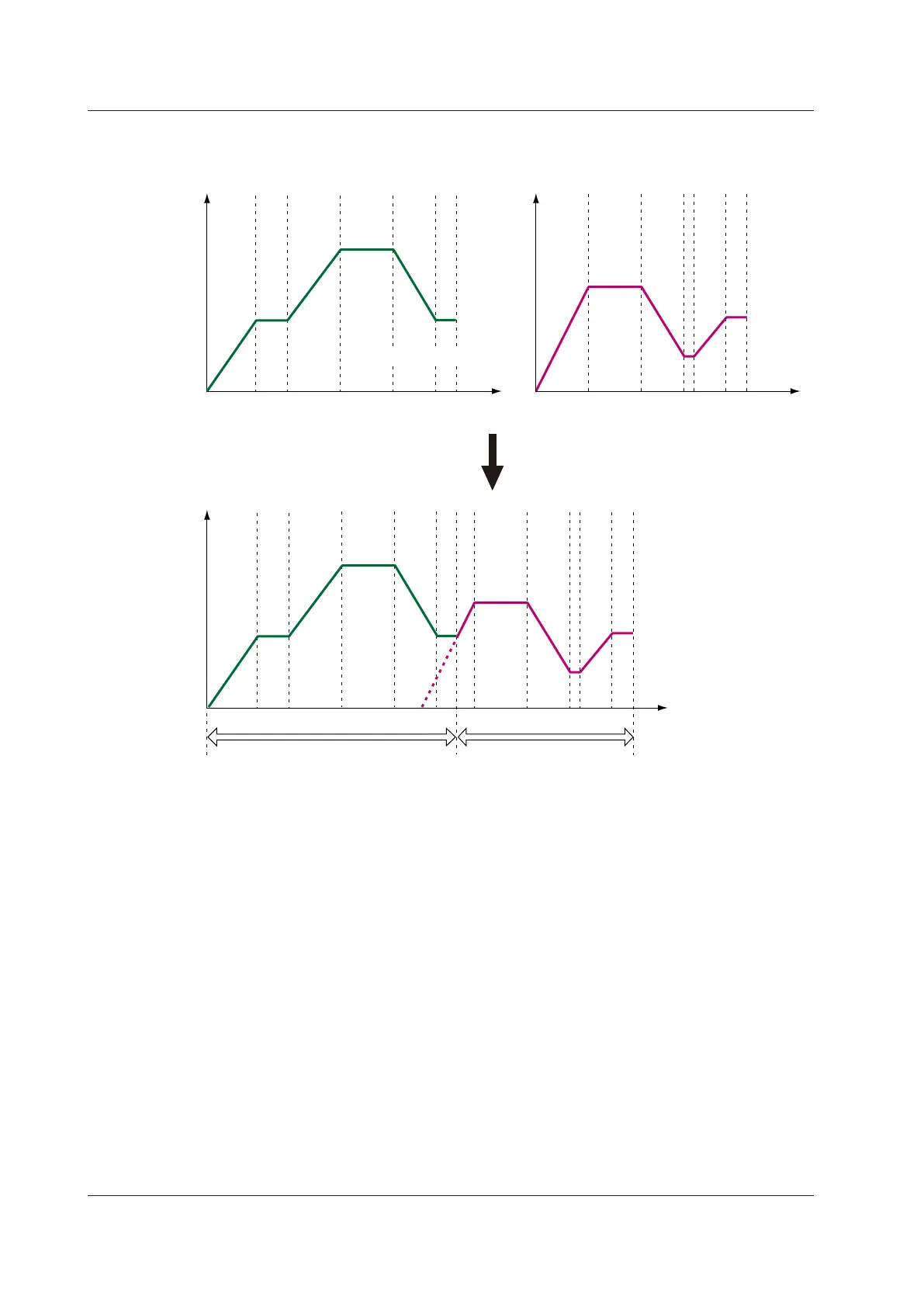

The following shows an example of linking the program patterns 2 and 5 (pattern-link).
However,thestartcode(STC)issettoRAMP(Ramp-prioritizedPVstarat.)
Setpoint
Setpoint
Setpoint
TimeTime
2 3 4 5 6
2 3 4 5 6
Pattern-link
Pattern 2
Segment 1 Segment 1
Pattern 2 Pattern 5
Time
Pattern 5
When ramp-prioritized PV start is selected, the start code (STC) setting for pattern 5 becomes enabled
at the time when pattern 5 starts.
JC of segment 6 = PLK.5
9.6OperationwithLinkedProgramPatterns
