9-12
IM 05P02C41-01EN

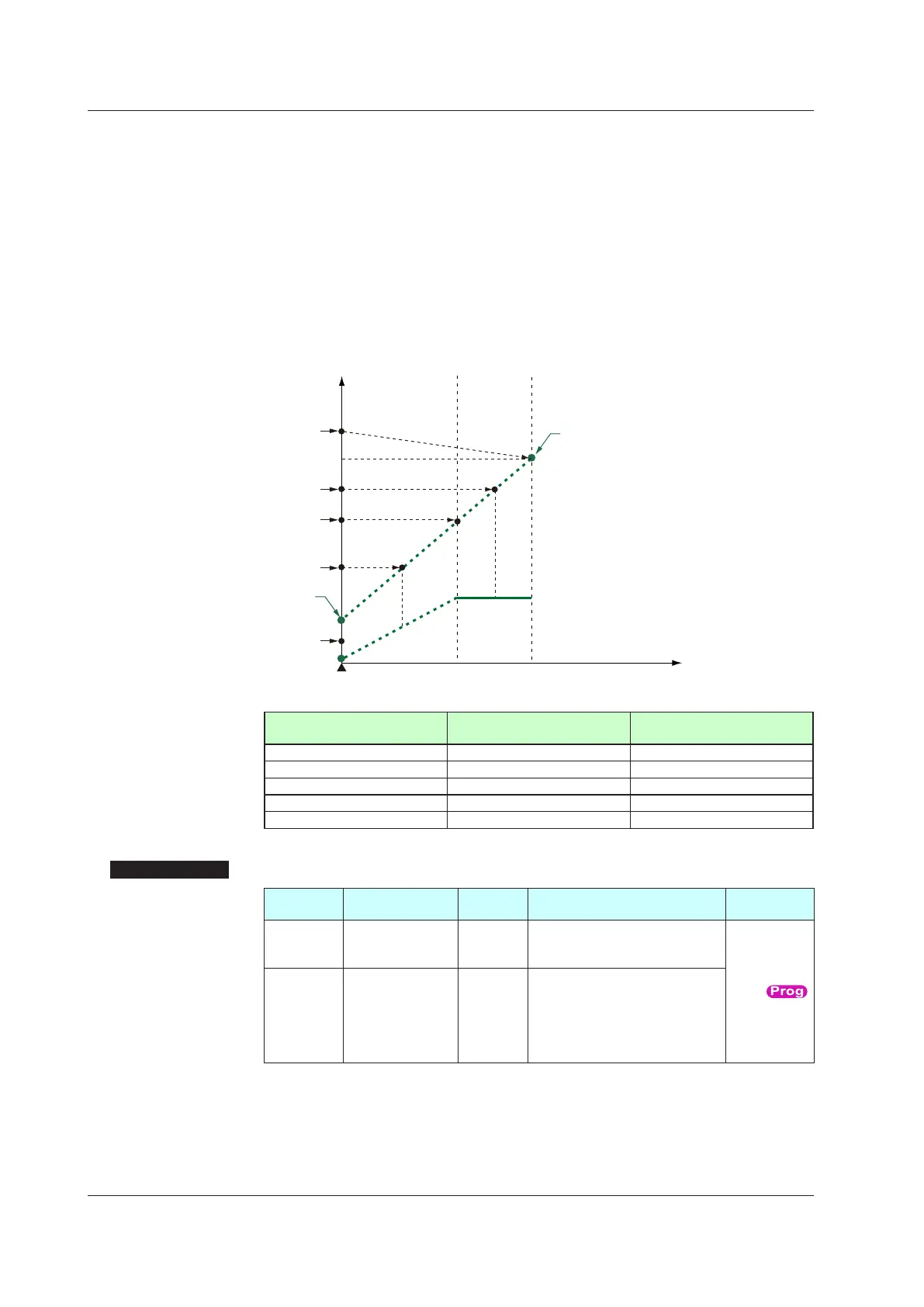

Exampleofprogramswithonlyramp-upsegments
WhenRamp-prioritizedPVstartistheselectedstartcondition,thecontrolprogram
pattern ramp is the start trigger. The control program pattern contains points A1 to E1.
For some PV, the program advances through the segments up to the point at which the
ramp is reversed.
The retransmission program pattern will start at the same time as the control program
pattern does. For example, if B1 is the selected start point for the control program
pattern, B2 will be that for the retransmission program pattern.
When the program operation starting point is set to A1, program operation is performed
foronecontrolperiod,andprogramoperationendsaccordingtothejunctioncode(JC)
for segment 2.
D1
E1
E2
D2
B1
C1
C2
B2
TSP
SSP
Segment 1 Segment 2
a
b
c
d
e
A1
A2
Program pattern
for control
Program pattern
for retransmission
Program operation start (PRG)
Time
Setpoint
PV at start Operation-startingpointfor
control
Operation-startingpointfor
retransmission
a A1 A2
b B1 B2
c C1 C2
d D1 D2
e E1 (SSP) E2 (SSP)
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
SSP
Starting target
setpoint
EASY
0.0 to 100.0% of PV input range
(EU)
(Setting range: P.RL to P.RH)
PROG
STC Start code EASY
SSP: Program operation begins
with the starting target setpoint.
RAMP:Ramp-prioritizedPVstart
TIME:Time-prioritizedPVstart
LSP: Local-mode start
RSP: Remote-mode start
Note 1: When the program pattern-2 retransmission is selected (PT2.G=ON), the second loop is
also displayed for the parameter SSP. (LP2 lamp is lit.)
9.3SettingtheProgramStartingConditions(STC)
