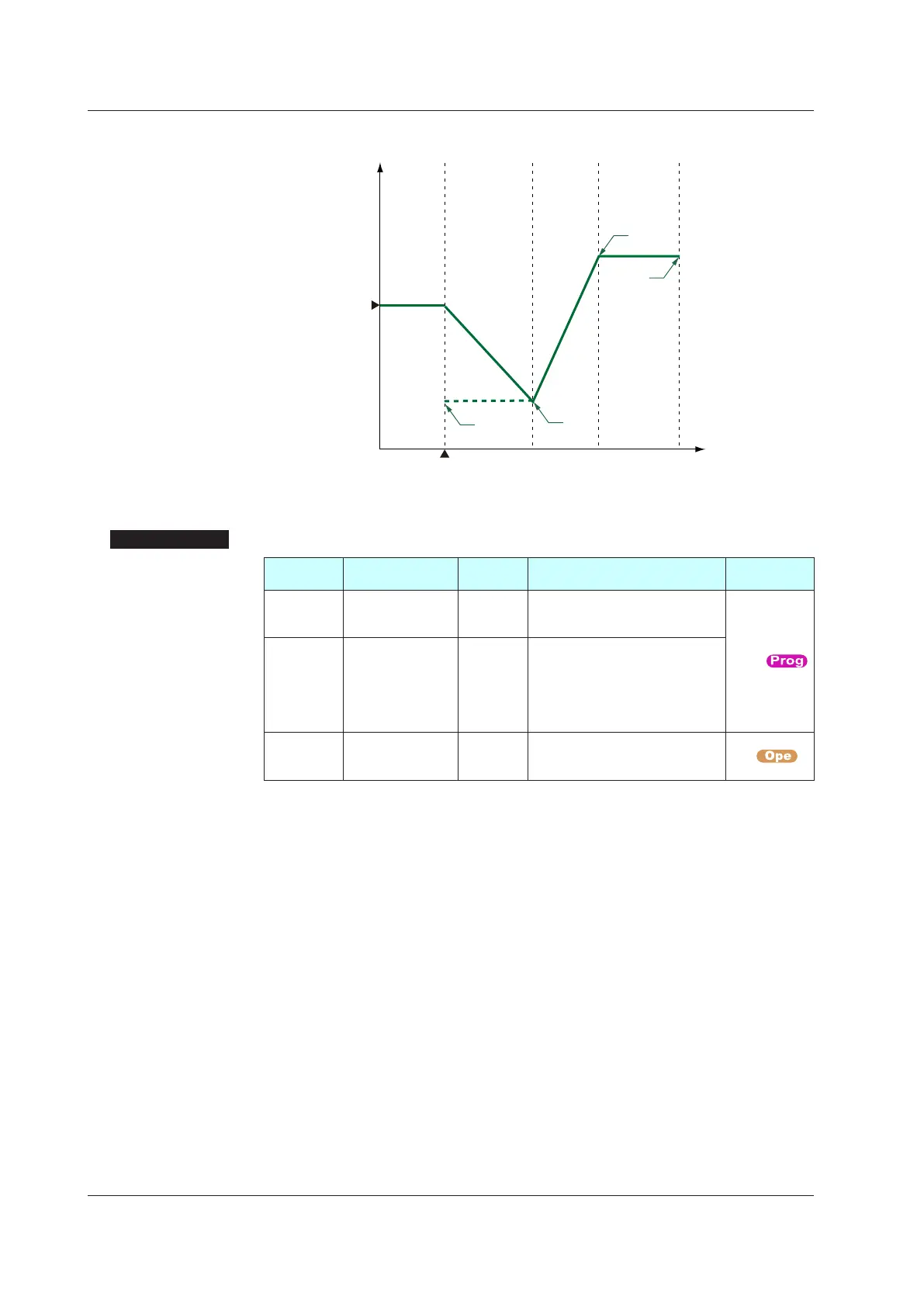

(2)WhenLSPandSSParedifferent
Seg.1 Seg.2 Seg.3
TSP
SSP
TSP
TSP
Local target
setpoint (LSP) in
Local operation
Seg.: Segment
Program pattern
for control
Program operation start (LOC → PRG)
Time
Setpoint
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
SSP
Starting target
setpoint
EASY
0.0 to 100.0% of PV input range
(EU)
(Setting range: P.RL to P.RH)
PROG
STC Start code EASY
SSP: Program operation begins
with the starting target setpoint.
RAMP:Ramp-prioritizedPVstart
TIME:Time-prioritizedPVstart
LSP: Local-mode start
RSP: Remote-mode start
LSP
Local target
setpoint
EASY
0.0 to 100.0% of PV input range
(EU)
(Setting range: P.RL to P.RH)
LOC
Note 1: When the program pattern-2 retransmission is selected (PT2.G=ON), the second loop is
also displayed for the parameter SSP. (LP2 lamp is lit.)
