YOKOGAWA UP55A User Manual

5-2
IM 05P02C41-01EN

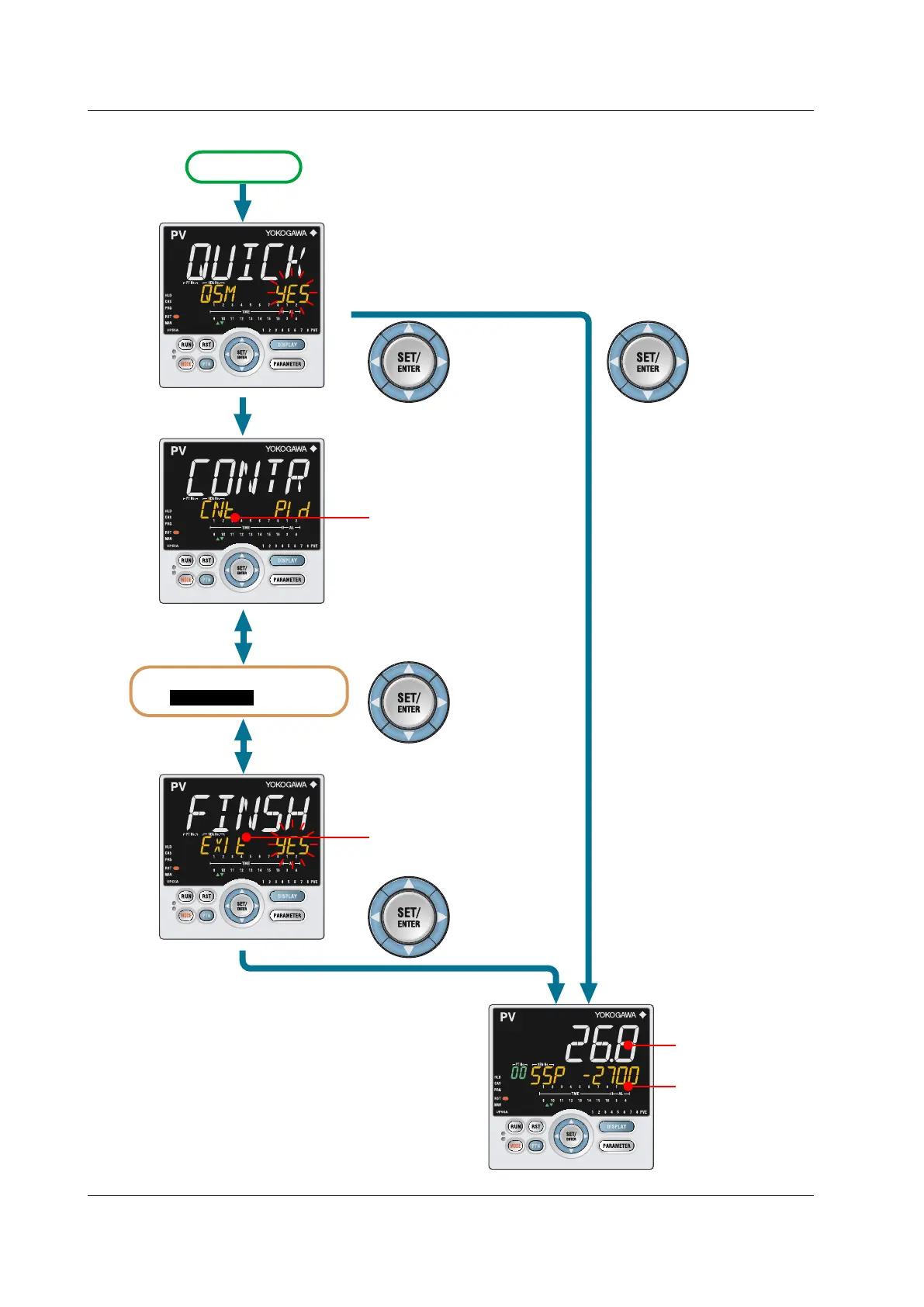

FlowchartofQuickSettingFunction
Decide whether or not to use the Quick setting function.
Press the UP arrow key to select YES.
Press the SET/ENTER key to start the Quick setting function.
Press the Down arrow key to select NO.
Press the SET/ENTER key not to start the Quick setting function.
The Operation Display is displayed.
Select YES.
Press the SET/ENTER key.
The Quick setting function is started.
Each parameter is displayed in turn.
See described later.
Select NO.
Press the SET/ENTER key.
Operation Display
Power ON
The parameter CNT (control type)
is displayed first.
PV is displayed.
SP is displayed.
Finally EXIT is displayed.
Select YES and press the
SET/ENTER key to complete the
setup of basic functions.
The Operation Display is displayed.
Select NO to continue the Quick
setting functionn.
Setting Method
(1) Press the Up or Down arrow key to
display a parameter to set.
(2) Press the SET/ENTER key.
(The setpoint blinks).
(3) Press the UP or Down arrow key to
change a setpoit.
(4) Press the SET/ENTER key to
register the setpoint.
(The setpoint stops blinkng.)
Setting Details
* If NO is selected and the
parameter IN (PV input type) is set
to OFF, the Quick setting function
starts when the power is turned on
again.
「NO」
5.1SettingUsingQuickSettingFunction
