YOKOGAWA UP55A User Manual

6-23
IM 05P02C41-01EN
Monitoring and Control of Regular Operations
6
(Continued)

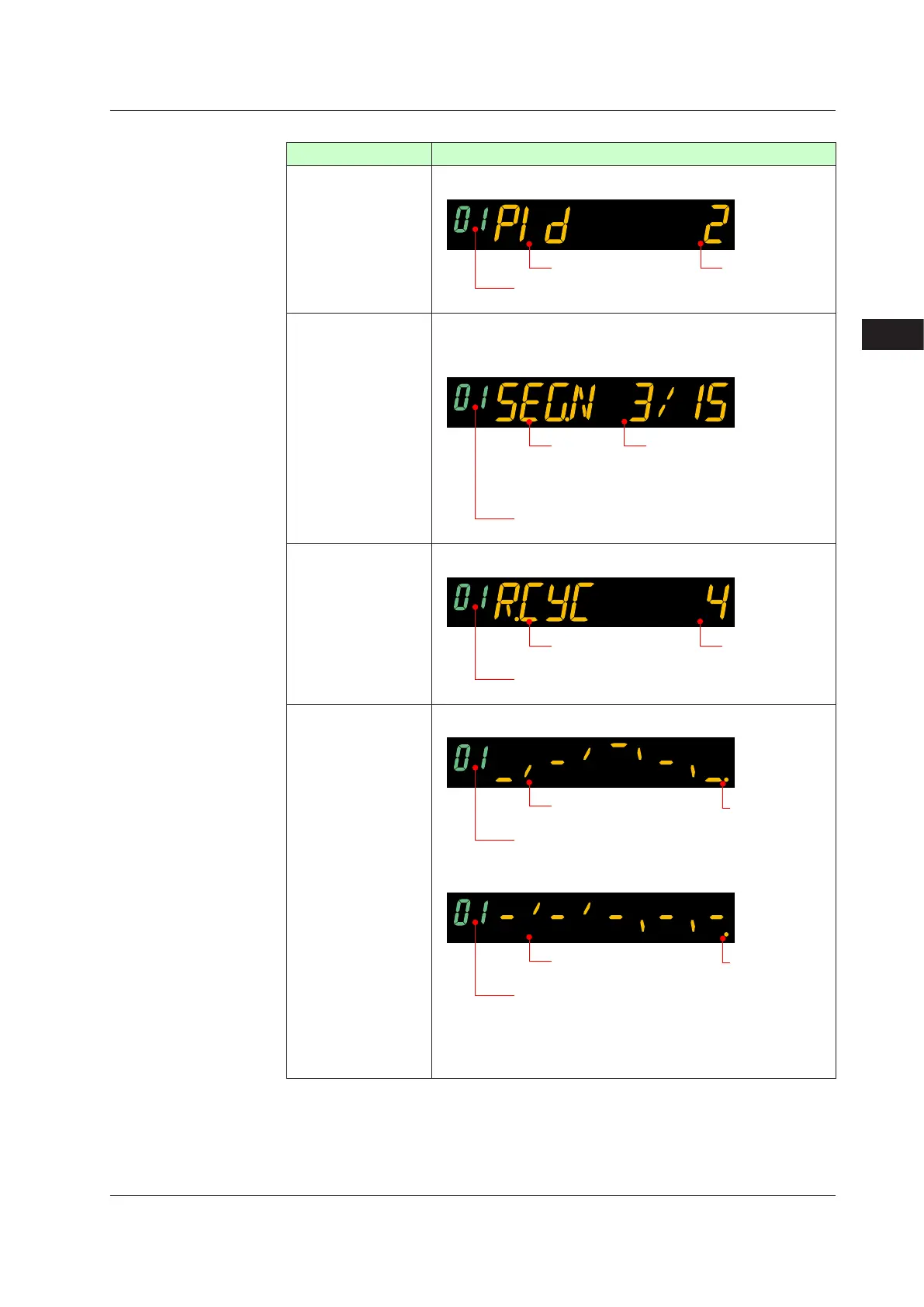

OperationDisplay Displayandoperationdescription
PID Number
Display
PV display: Displays measured input value (PV).
Setpoint display: Displays PID number currently being used.
Symbol PID number
Program pattern number (PTNO.)
SegmentNumber
Display
PV display: Displays measured input value (PV).
Setpoint display: Displays the segment number for which operation is in
progress / the number of segments included in the selected program
pattern.
The segment number for which
operation is in progress /
the number of segments included
in the selected program pattern.
Program pattern number (PTNO.)
Symbol
Remaining
RepetitionDisplay
PV display: Displays measured input value (PV).
Setpoint display: Displays the remaining repetition.
Remaining
repetition
Program pattern number (PTNO.)
Symbol
Program Pattern
Display
PV display: Displays measured input value (PV).
Setpoint display: Displays program pattern
Period (.)
This symbol is
displayed after the
final segment.
Program pattern number (PTNO.)
Program pattern (overview)
The Soak and ramp display can be displayed by parameter PTSL.
Period (.)
This symbol is
displayed after the
final segment.
Program pattern number (PTNO.)
Soak and ramp display
Program pattern display can be scrolled using Up/Down/Left/Right arrow
key. When the SET/ENTER key is pressed, the Program Pattern Display
returns to the former position.
6.1MonitoringandControlofOperationDisplays
