4.7.11 Replacing the SMB boards
Location of the SMB board

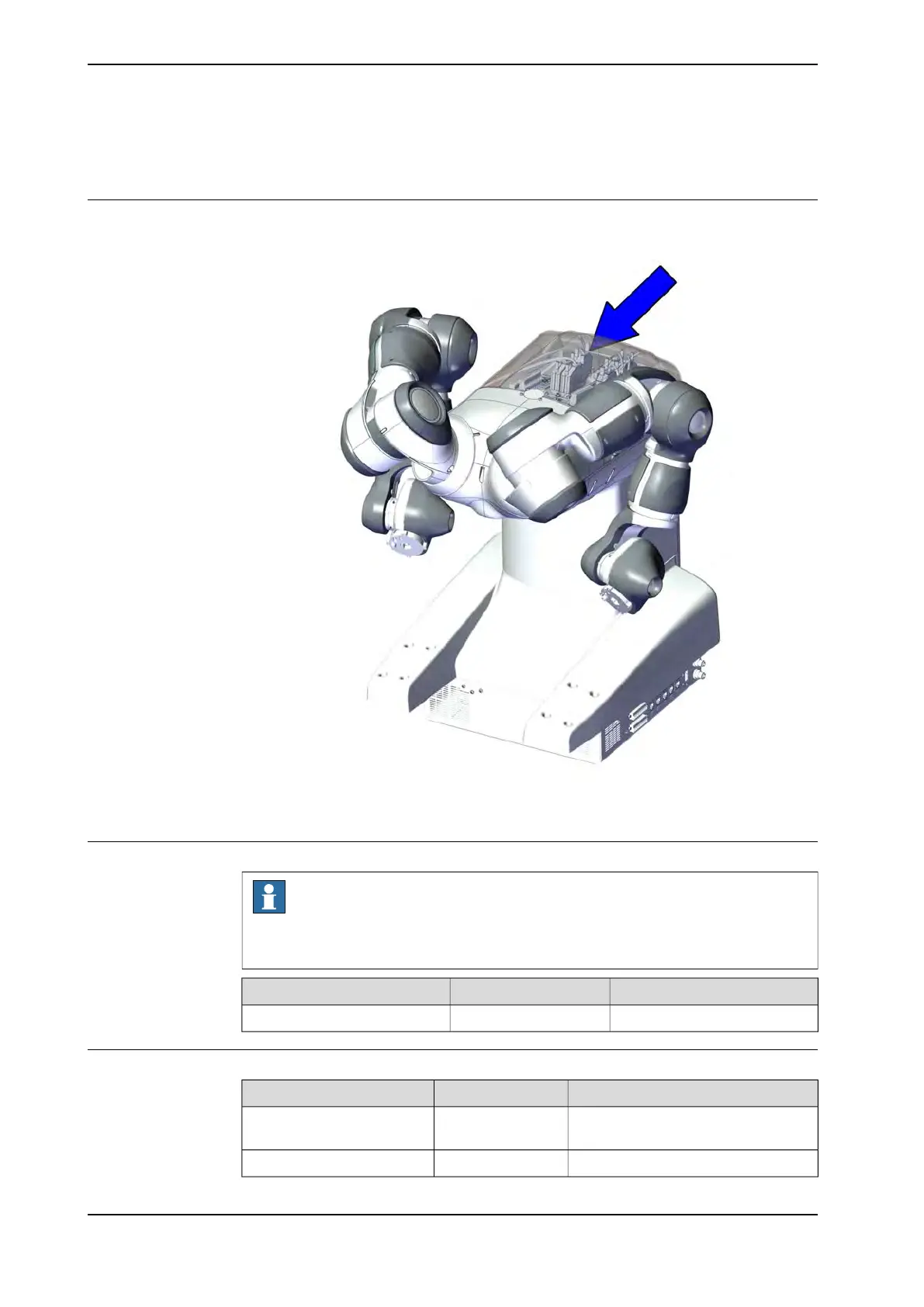

The SMB board is located as shown in the figure.
xx1500000414
Required spare parts
Note
The spare part numbers that are listed in the table can be out of date. See the
latest revision of Product manual, spare parts - IRB 14000 on ABB Library.
NoteArticle numberSpare part
3HAC048550-001DSQC633D measurement board
Required tools and equipment
NoteArticle numberEquipment, etc.
Content is defined in section Standard
toolkit on page 449.
-Standard toolkit
-Trolley
