Service Manual – Corrective maintenance
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A
272
4. Iterate the procedure until the required tolerances of |W1-W2| are reached.

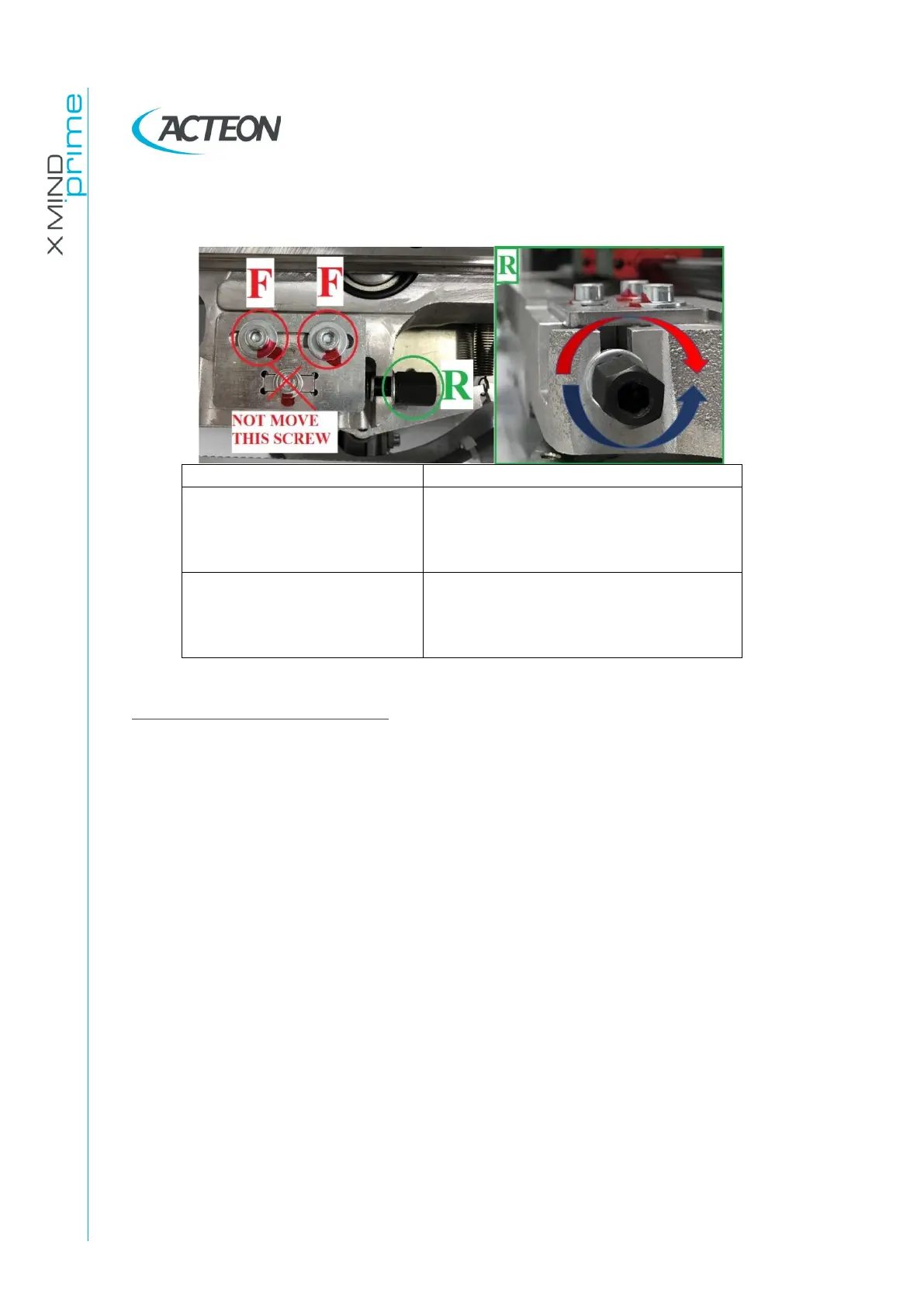

ACT of regulation screws
Effect on measure of W1-W2
R [clockwise]
INCREASE segment W1 on the
acquired image,
move RING on the LEFT of the
acquired image
R [anti-clockwise ]
DECREASE segment W1 on the
acquired image,
move RING on the RIGHT of the
acquired image
R screw turn-pixels “conversion”
1 complete screw R turn → add/remove about 14 pixels to the measure of |W1-W2|
on acquired image
