Service Manual – Corrective maintenance
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A

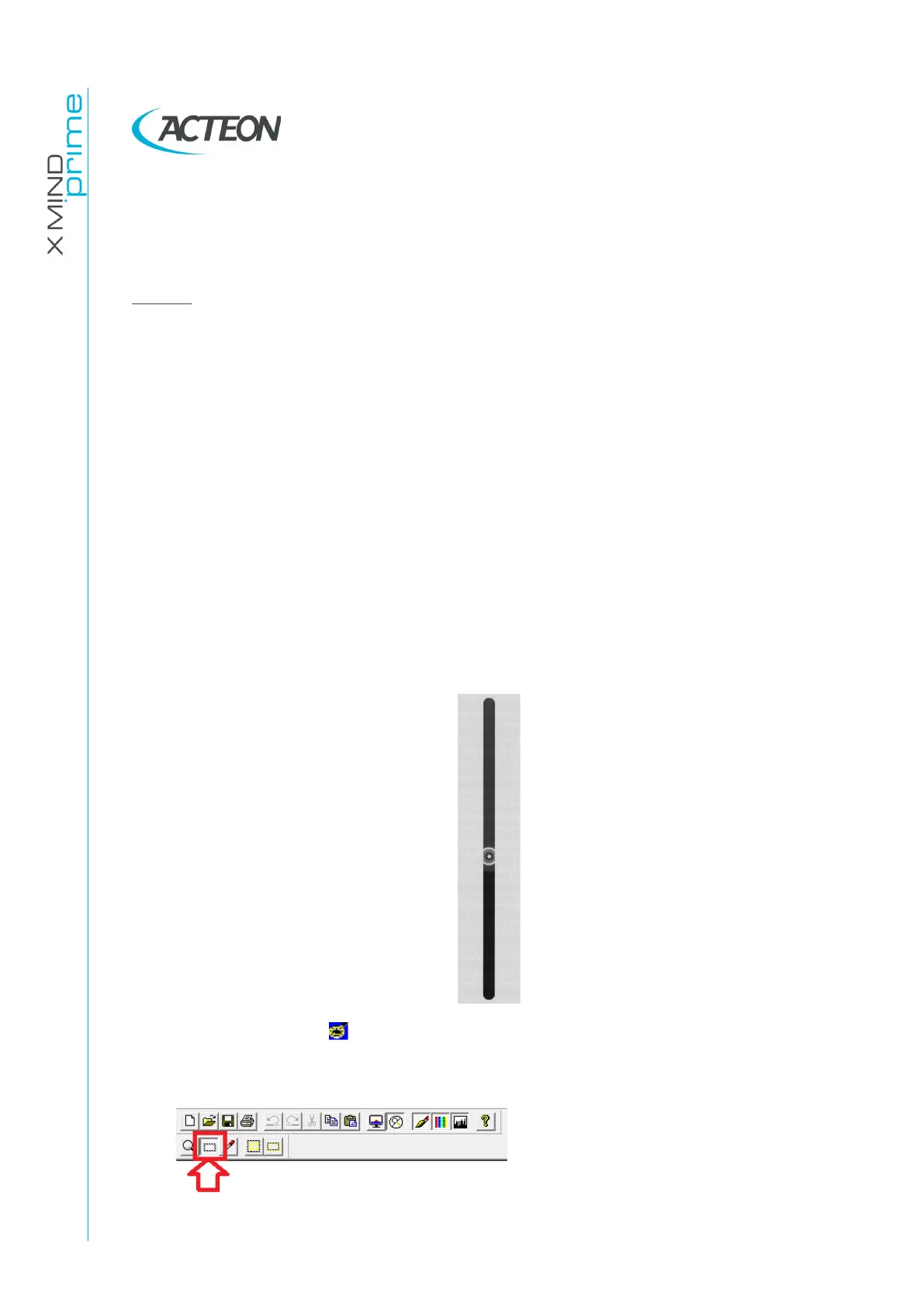

11.2.11.5
Secondary collimator offset
Checks
1.
Rotate the ceph head support in lateral position
2.
Open "PhD_C_Test.exe" service program
3.
Select the following parameters:
- Format: Height 24
- Resolution: High
- Param1: View of sec. collimator field
- 70kV 8mA
4.
In the image processing menu select: “Dynamic adjustment”
5.
Prepare the unit to take the ceph exam and then press the X-Ray button
until the end of the exposure
6.
Save the image as “Secondary.bmp”
7.
Open the image in SyMage software application (C:\Program Files
(x86)\Acteon Imaging\Panoramic X-Mind Prime Ceph\SyMage)
8.
In the menu bar select the “Rectangle Selection” tool
