Service Manual – Corrective maintenance
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A
282
11.2.11.6 Sensor ceph offset
Checks
1. Rotate the ceph head support in lateral position
2. Open "PhD_C_Test.exe" service program
3. Select the following parameters:
- Format: Height 24
- Resolution: High
- Param1: Static acquisition centred
- 70kV 8mA
- 300ms
4. Prepare the unit to take the ceph exam and then press the X-Ray button until
the end of the exposure

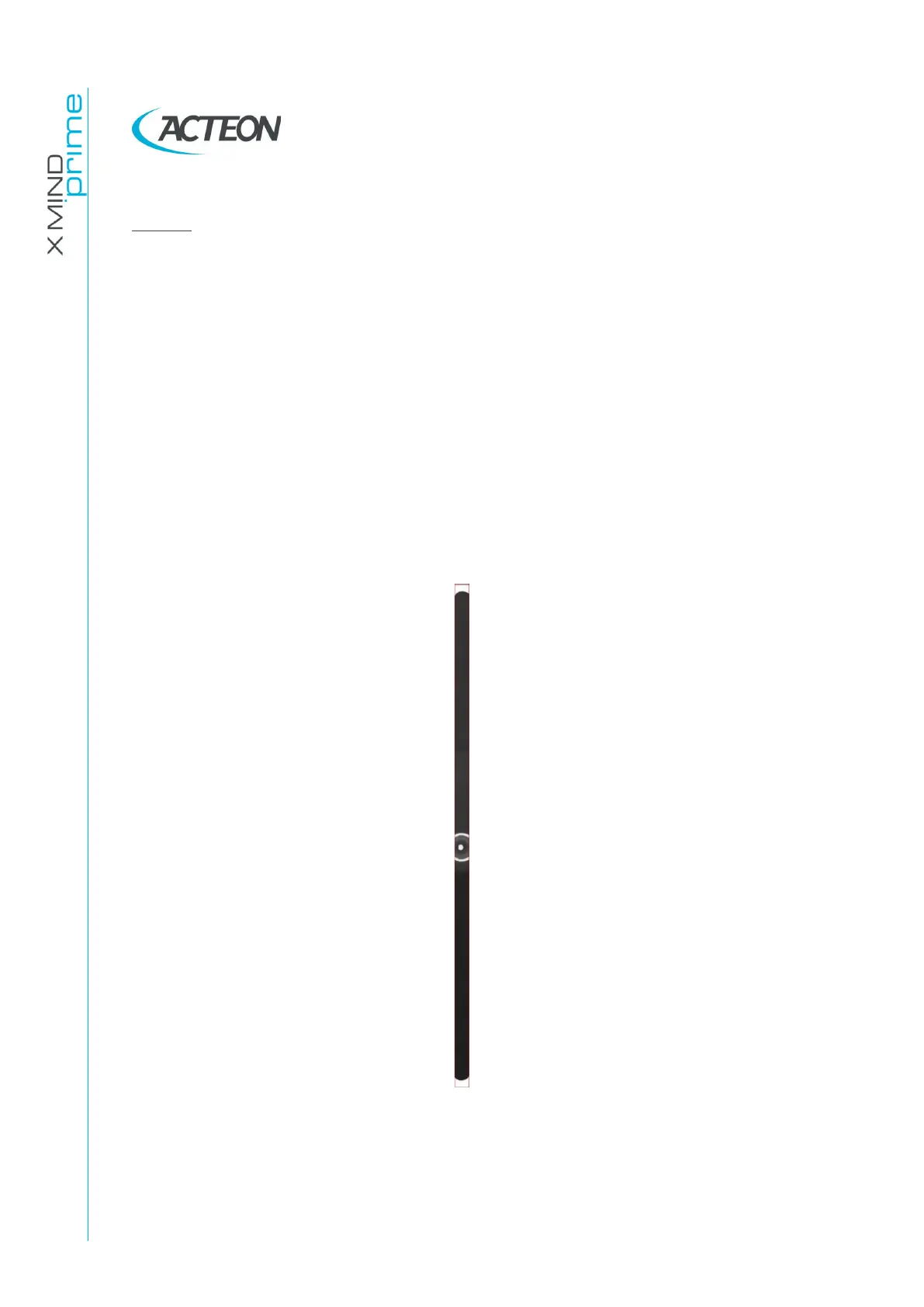

5. Save the image as “Static-ceph.bmp”
