Service Manual – Corrective maintenance
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A
301

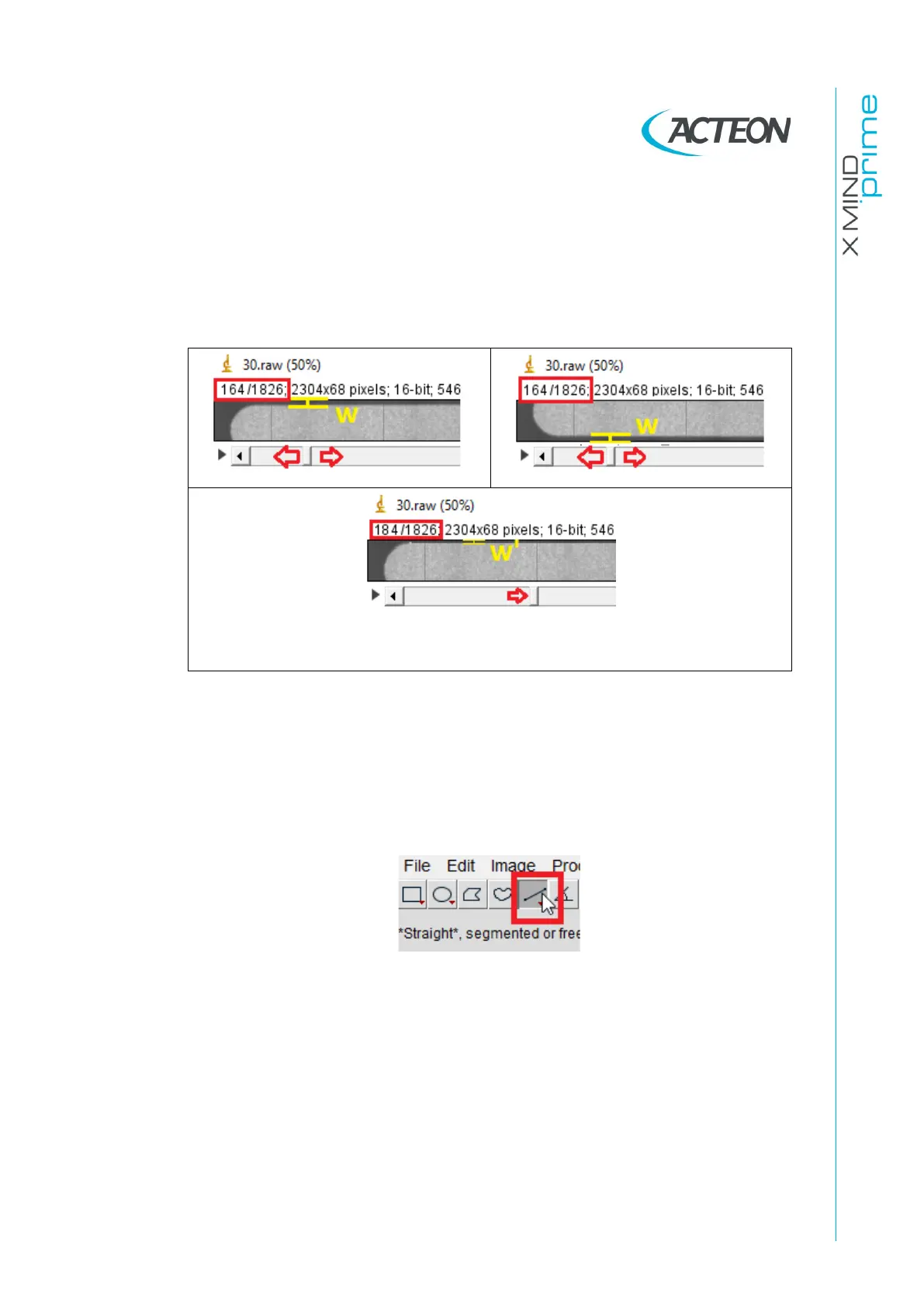

35. Zoom-in (press “+” on keyboard) in order to maximise the shadow view, and scroll
the frames with the scrolling bar in order to identify the frame where the shadow
width (segment “W”) is larger.
W[@frame 164]>w’[@frame184]
Eg. In the above example the frame where the shadow width is larger is the frame
number 164 .
36. Select the frame in which the shadow width is larger
37. Select the straight-line tool in the ImageJ tool set
