Adjustments

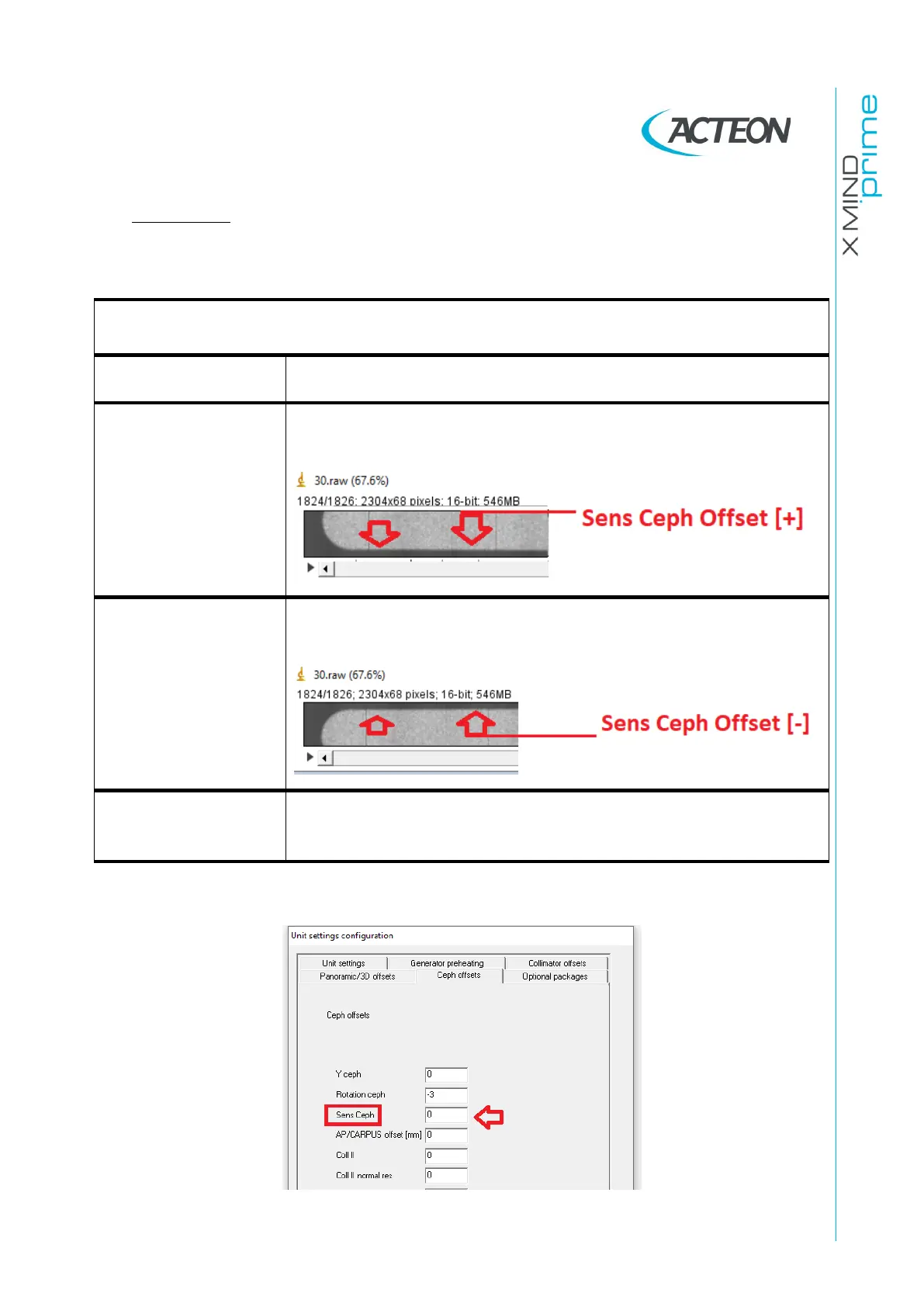

Minimize the secondary collimator shadow on the frame, changing the Sens Ceph offset
value following the criteria reported in the following table:
HD-Vertical Lines correction
OFFSET
EFFECT ON ACQUIRED FRAME
Sens Ceph [+]*
Reduce the secondary collimator shadow if it is located on
BOTTOM side of the frame
Sens Ceph [-]*
Reduce the secondary collimator shadow if it is located on
TOP side of the frame
Pixel Offset
Conversion
1 Offset Step = 2 pixel
*Note: The symbols [+] and [-] indicate respectively to increase and decrease the offset value
already stored in the Unit Setting configuration window:
