Tighten screws “D” and repeat the static acquisition.
15.
Once X-ray beam has been well centred, tighten all the screws.
16.
Mount the tubehead internal cover.
17.
Mount the tubehead external cover paying attention to insert first the lower
pins of the cover in the guide present in the tube head internal cover and then
fix the upper part of the covers.

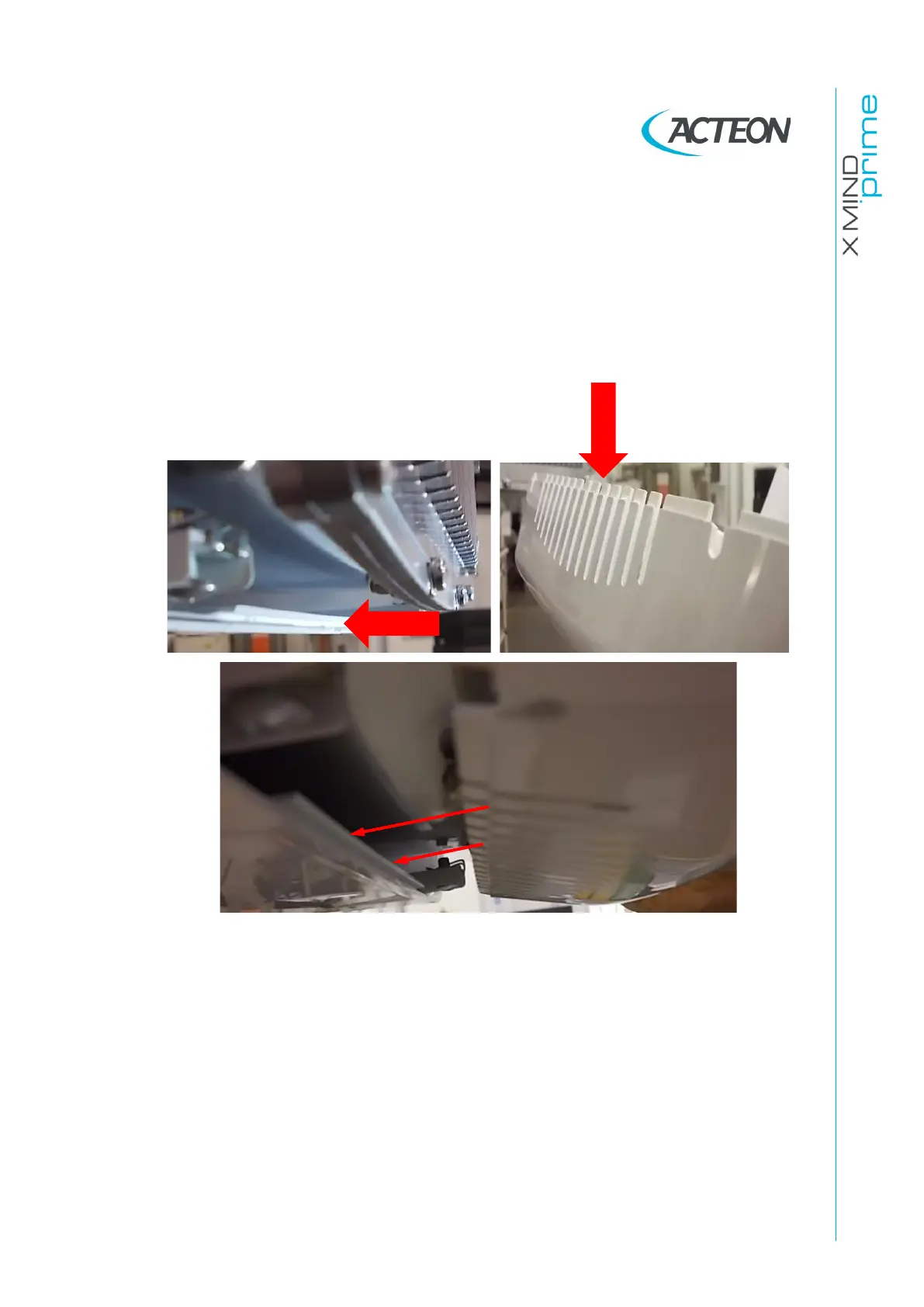

Figure 59
18.
Perform the sensor calibration and verification (see paragraph 10.2).
19.
Perform a panoramic symmetry verification (see paragraph 7.10).
