Service Manual – Corrective maintenance
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A
318

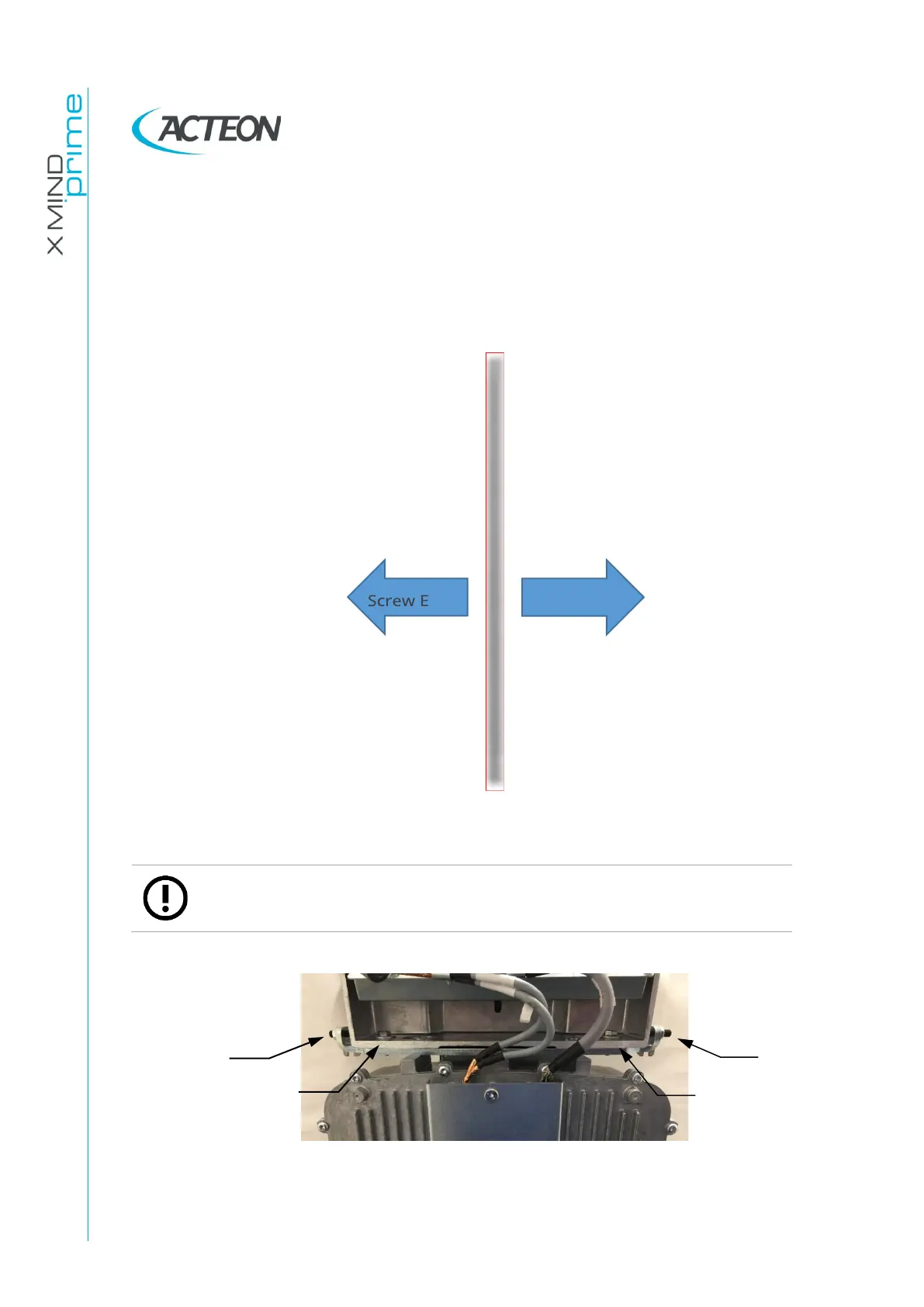

13. In case the beam is not centered to the sensor, loosen the screws “D” ( Figure
58 ) and act on screws “E” and “F” (Figure 58) following the convention reported
below:
- Screw “F” to move the X-ray beam on the right (on the image)
- Screw “E” to move the X-ray beam on the left (on the image)
Figure 57
Note
In order to act on a screw (E or F) on one side, loosen the other screw on
the opposite side.
Figure 58
Screw F
D
D
E
F
