7. Turn ON laser and press >0< button on the keyboard until sagittal laser is on
the middle of tool. Use adhesive tape and mark the laser position (using a pen).

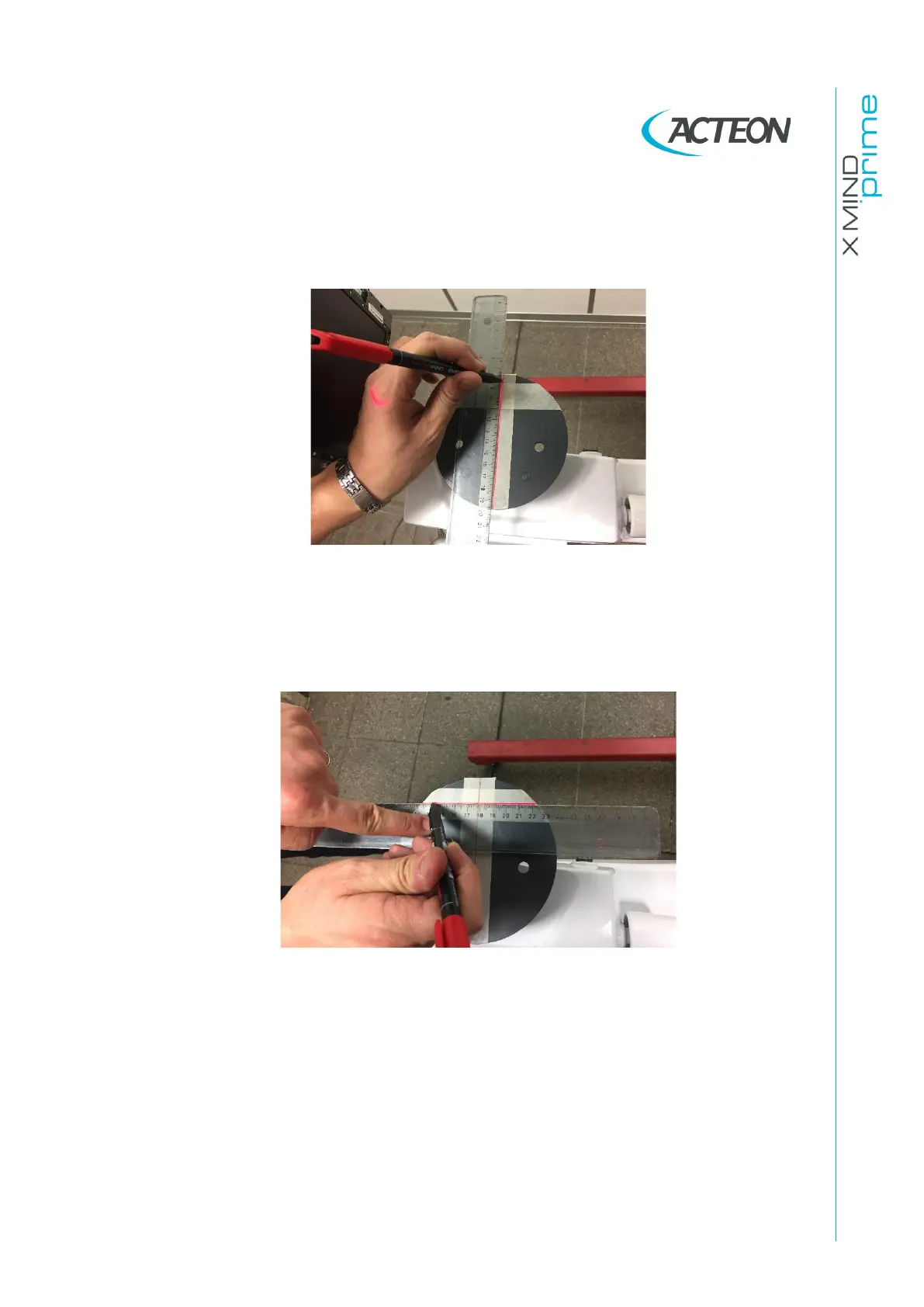

Figure 61
8. Put adhesive tape between the extremities of the tool.
9. Press >0< button on the keyboard until sagittal laser is parallel to chin support
arm. On adhesive tape mark the laser position (using a pen).
Figure 62
