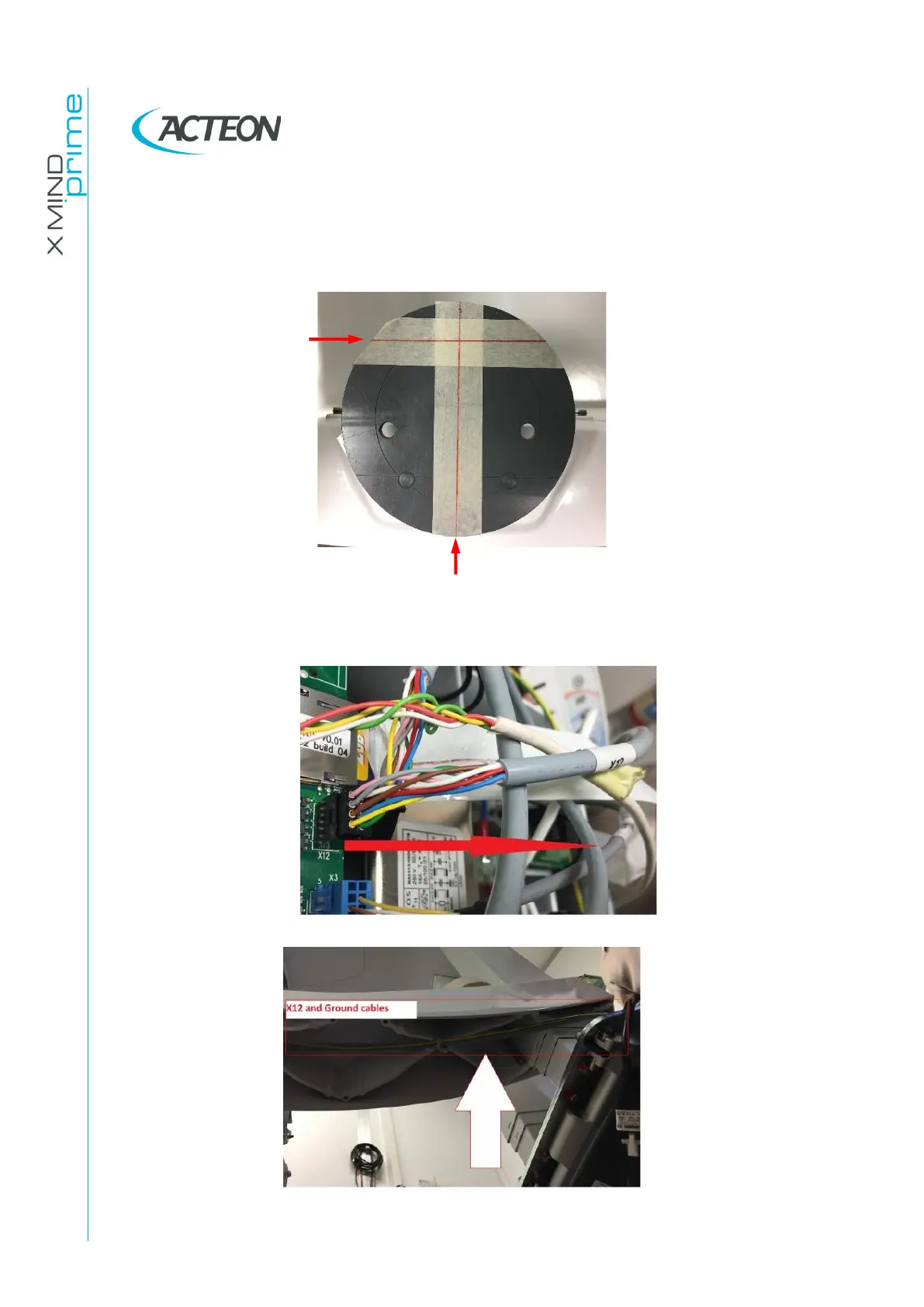

Rotation references are present on the tool and it has to be used as reference to
position the unit in the same position.
Figure 63
10. Unplug the X12 cable and the ground.
Figure 64
Figure 65
