8. Remove the screw behind the column.
9. Grab the package and lift until the coupling system has engaged the locking
bars on both sides, (see Figure 9 , Figure 10 , Figure 11 ).
NOTE : The force necessary to lift the unit is about 20kg, so that a single
technician can be enough to install the unit

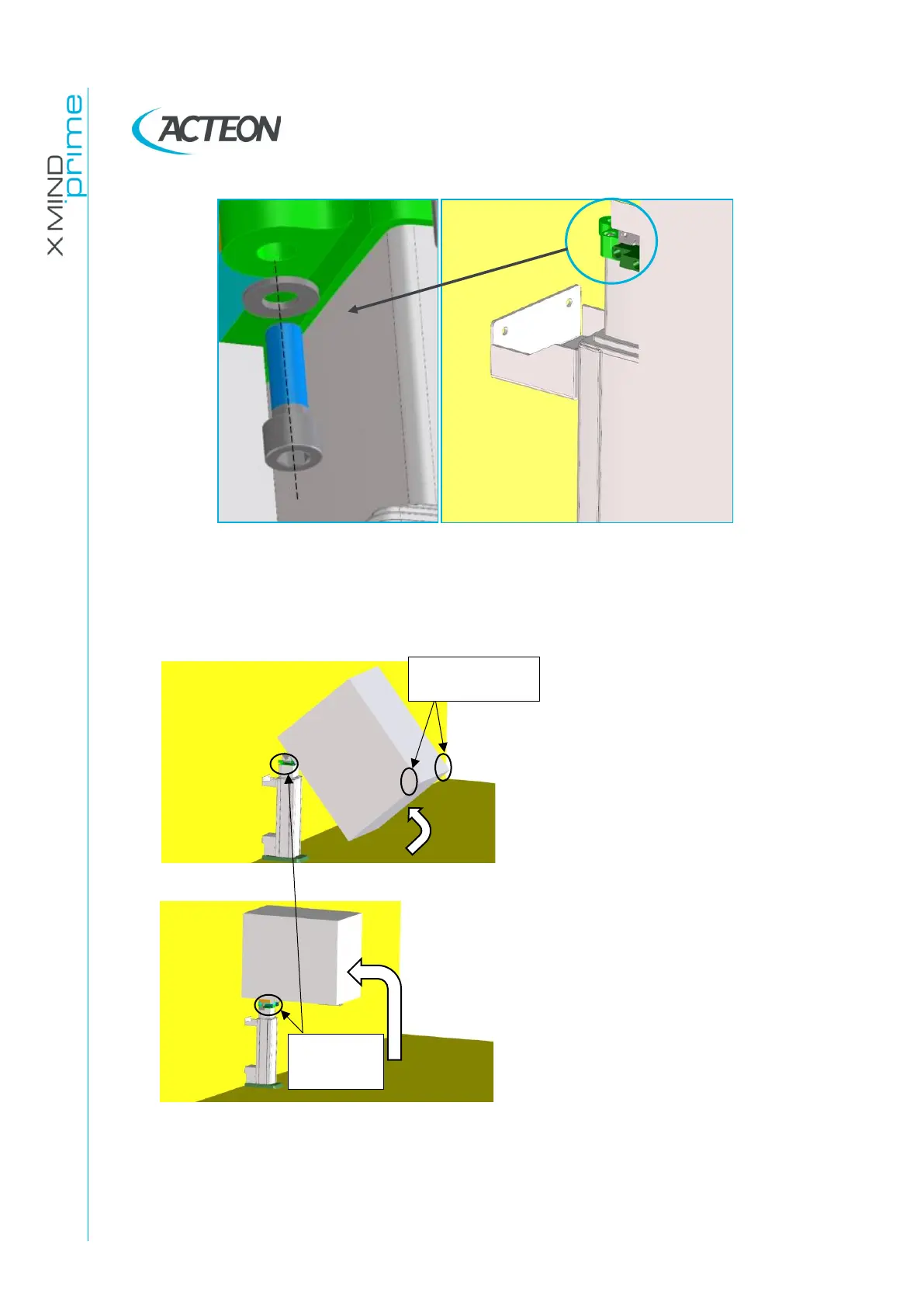

Figure 9
Lifting points
Coupling
system
