Service Manual – Installation
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A
78

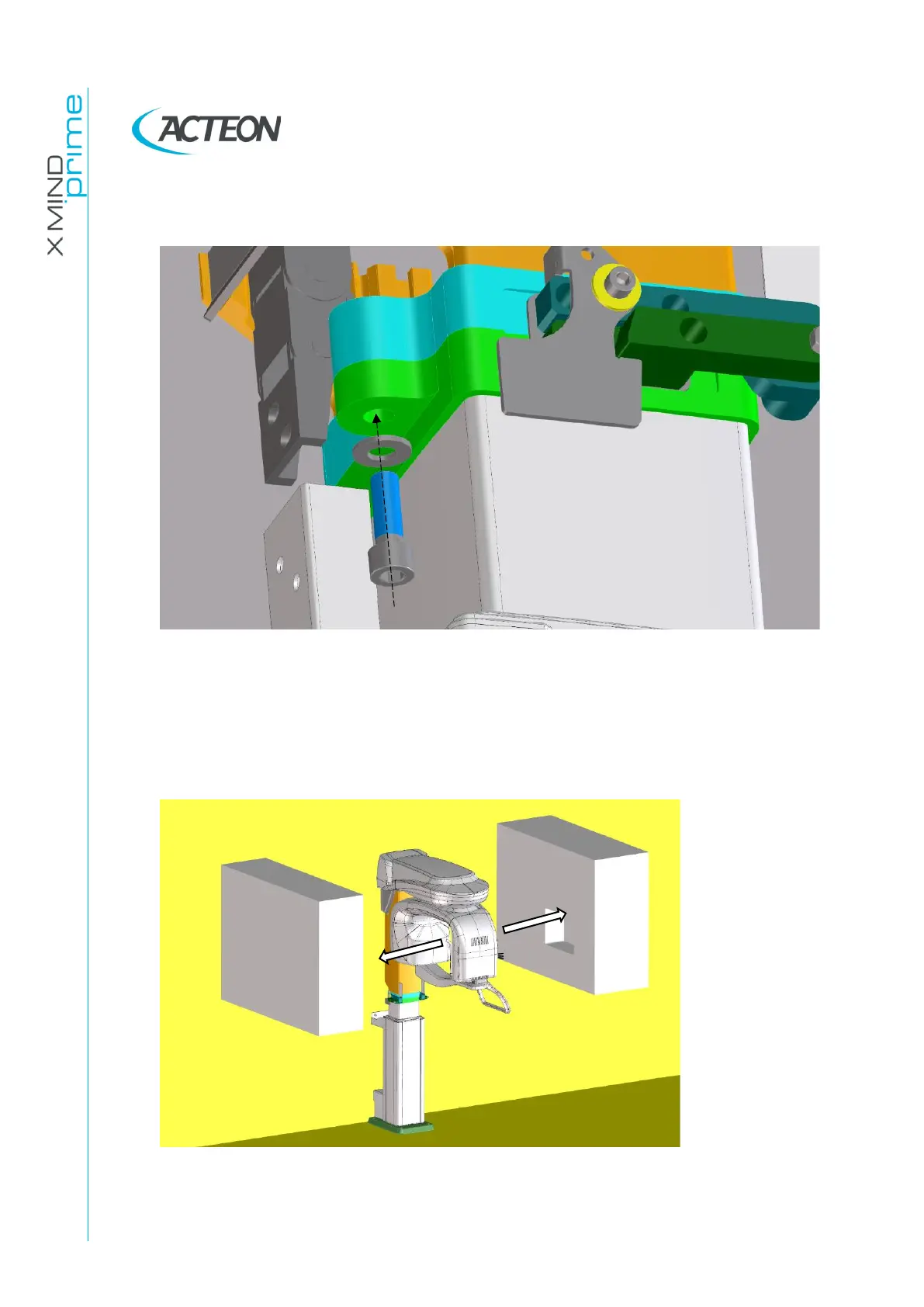

10. Lock the tilting movement of the machine head of the column with the
appropriate screw
Figure 12
11. Cut the straps that join the two polystyrene elements and remove them.
WARNING : inside the polystyrene elements, you can find the accessories of the
machine and the wall plate cover )
Figure 13
