Service Manual – Installation
SERVICE MANUAL • X-MIND prime 3D • (19) • 11/2019 • NXMPEN080A
79
12.

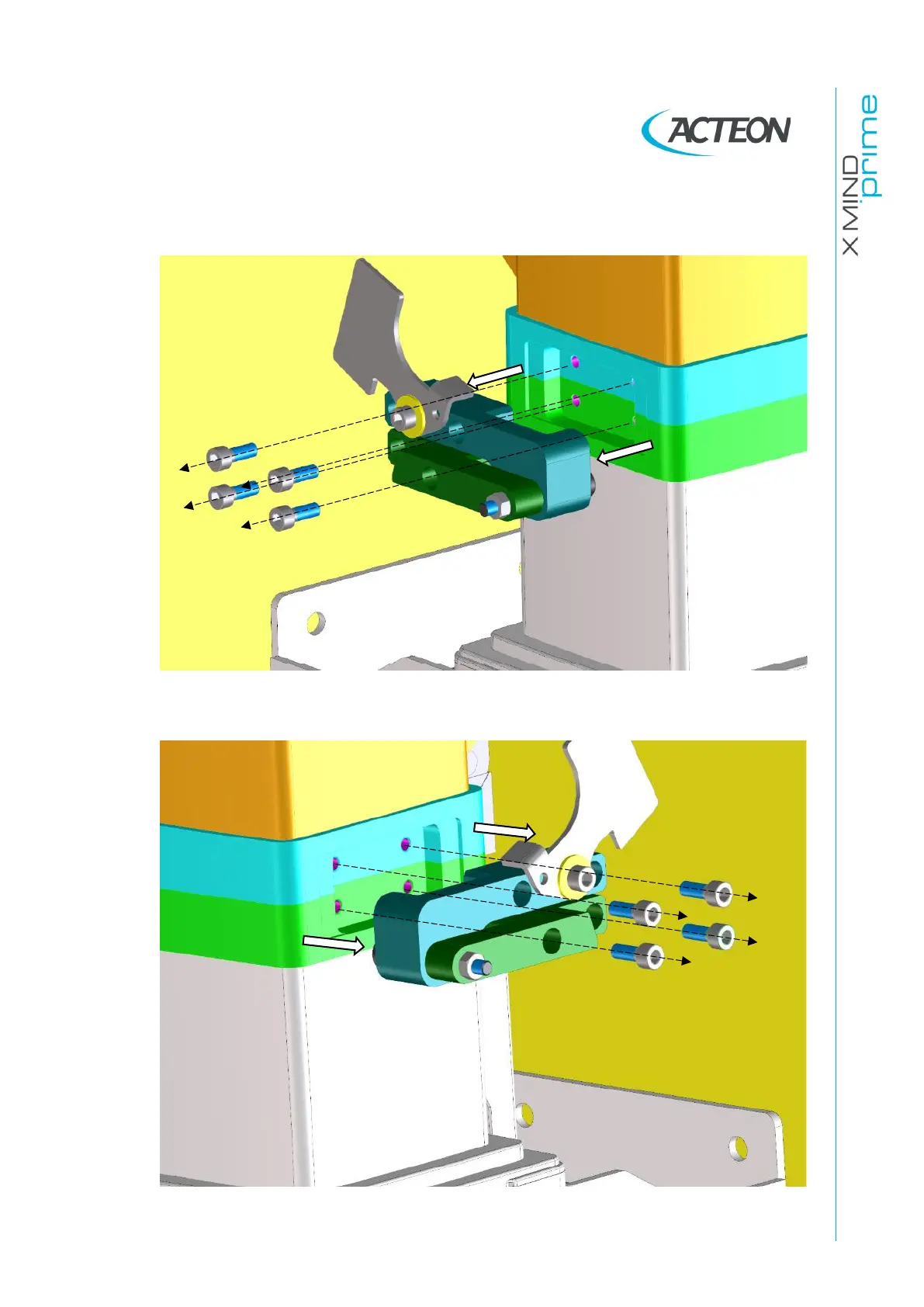

Remove the two hinges from the machine and store them in the upper fixing
bracket of the column.
Figure 14
Figure 15
