19. Using the handle and the support arm as gripping points, lift and rotate by
180 ° the Ceph arm approaching the rear of the machine. (Warning! don’t
grab the arm from ceph clamps, secondary collimator and sensor holder)

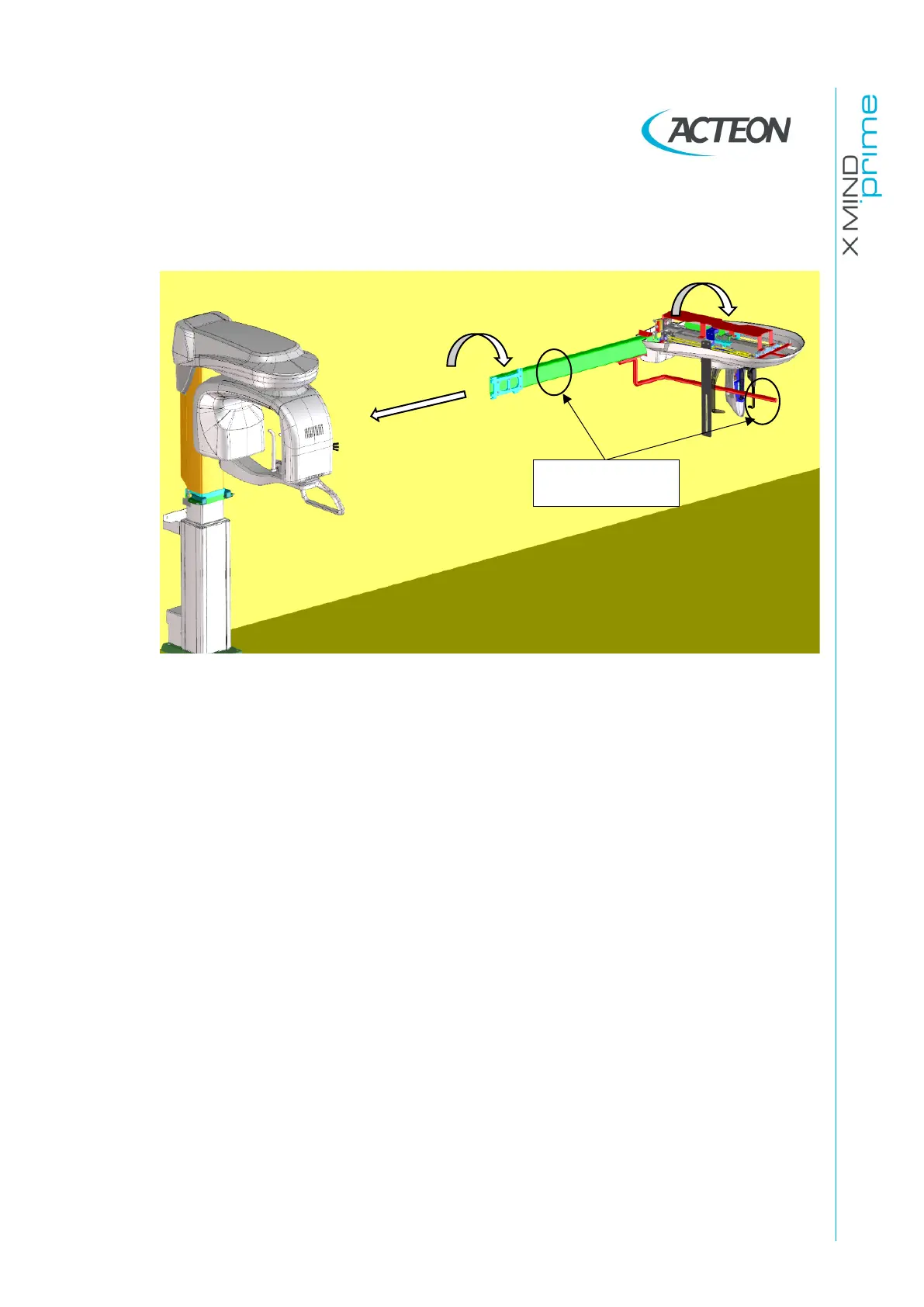

Figure 26
Gripping points
