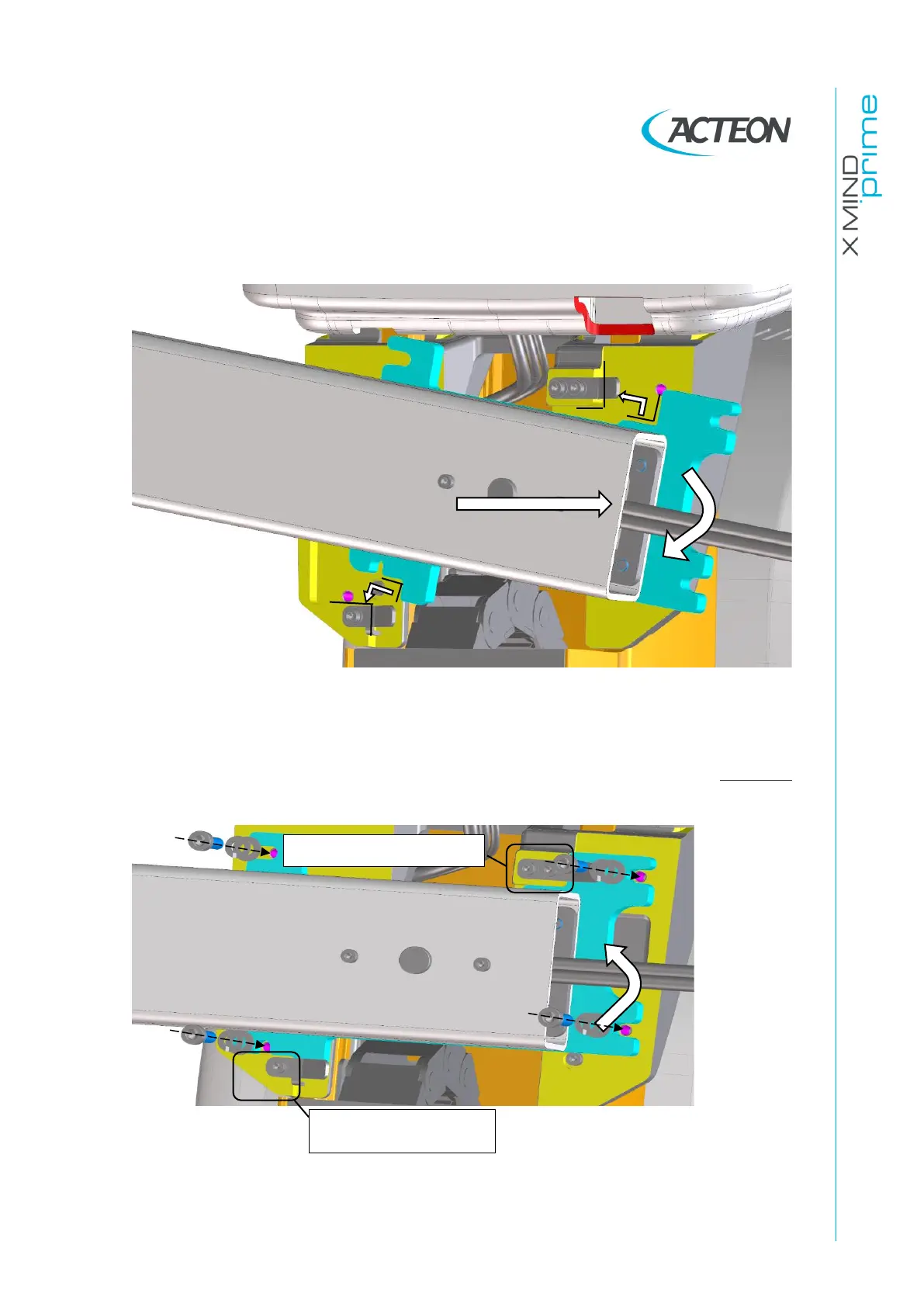

20. Insert the Ceph arm in its seat making the movement described in the following
images
Figure 27
21. Put the Ceph arm in contact with the appropriate supports, then fix very well
the Ceph arm to the machine with the screws and washers.
Figure 28
Ceph arm support
Ceph arm support
