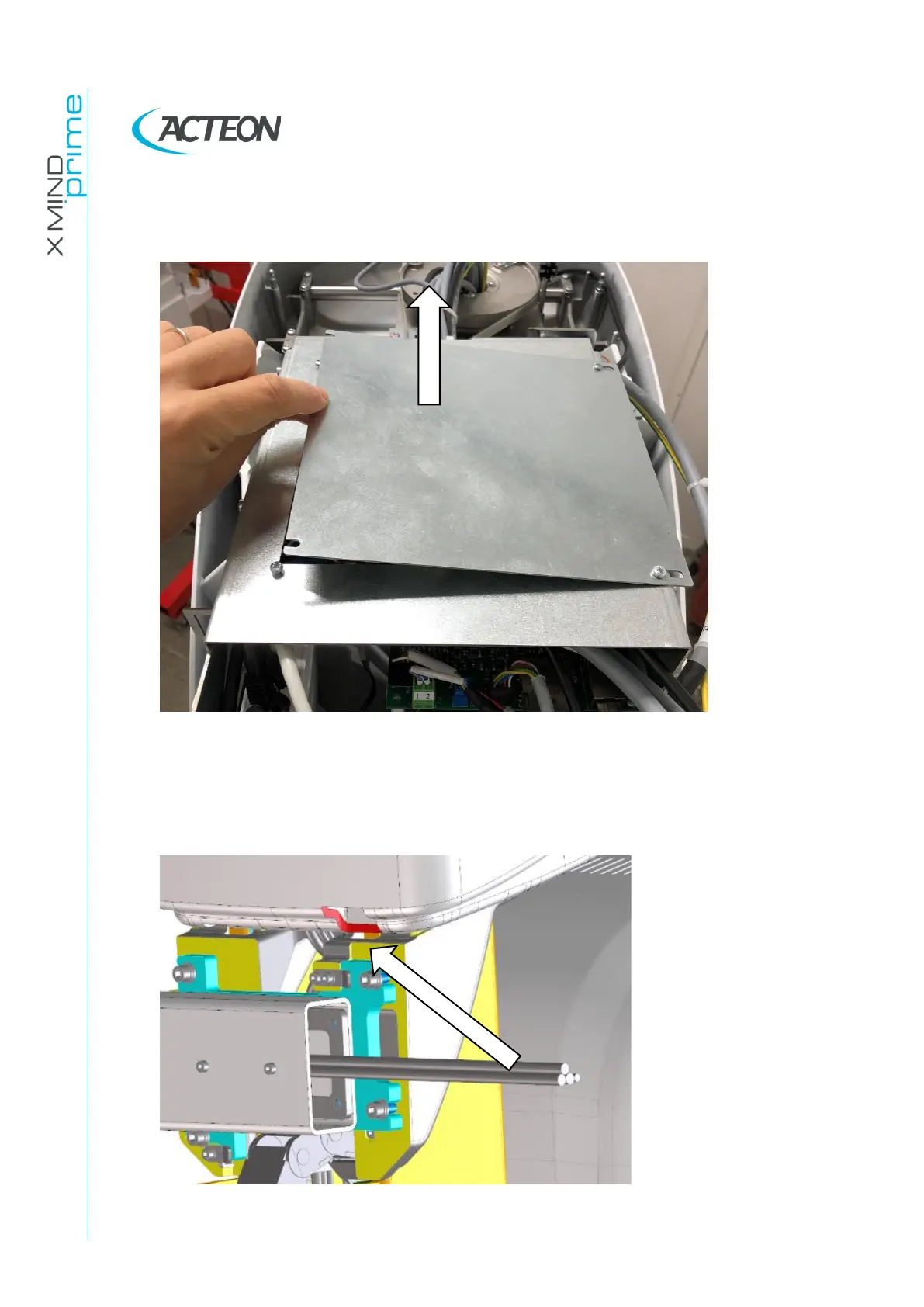

22. Remove the metallic protection plate on top of the electronic boards.
Figure 29
23. Pass the cables through the opening on the upper structure
Figure 30
