X11-1 / X11-2 contact closed when unit is ready
•
X11-3 / X11-4 contact closed during X-ray emission

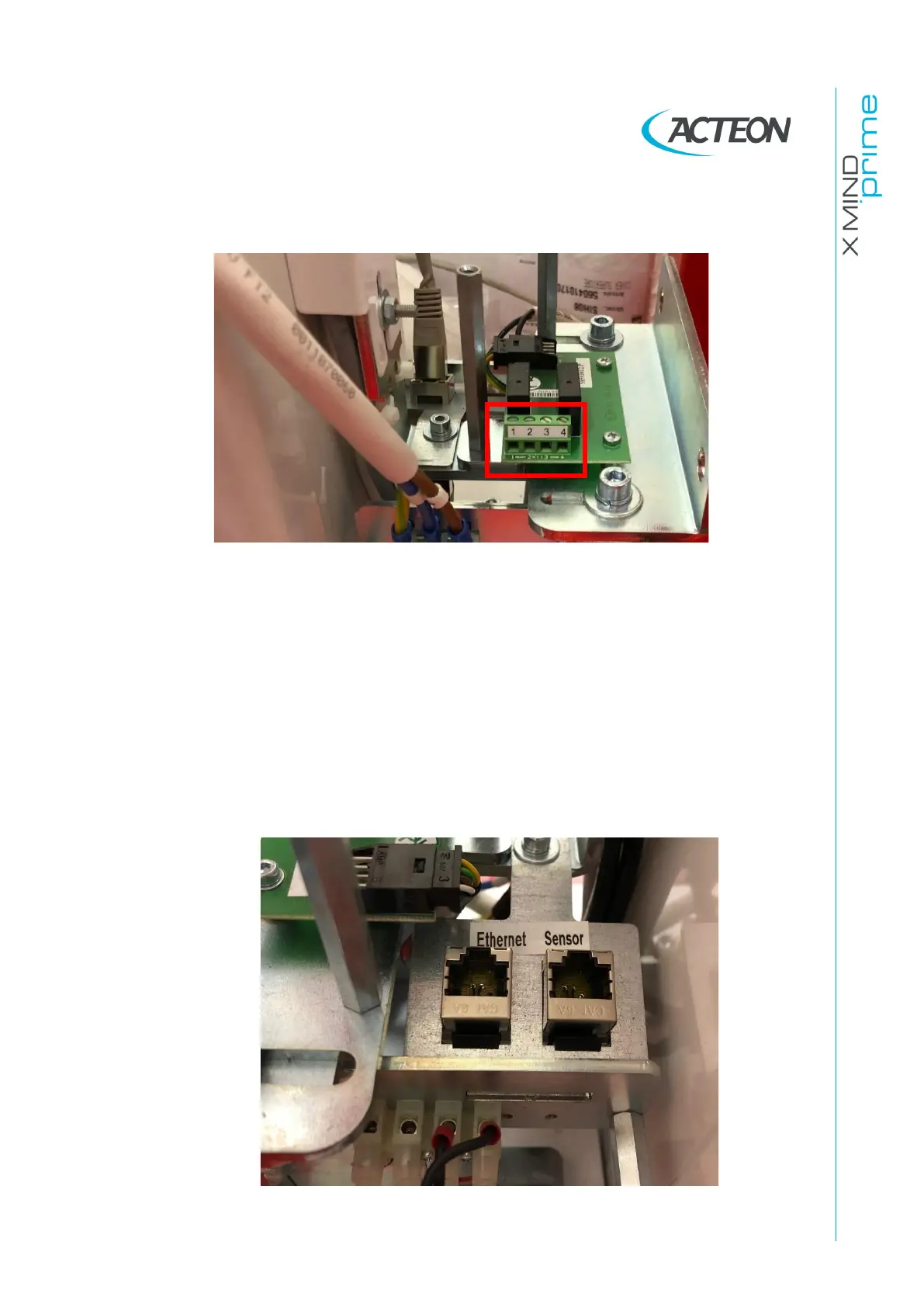

Warning lights connections, located on the right side of the unit base.
Ethernet connections to the PC
There are two RJ45 ethernet connections to the host PC.
Connections are located on the left side of the unit.
•
3D detector (labelled “SENSOR”):
dedicated line for point-to-point
connection from the 3D detector to the host PC.
•
Ceph detector and system interface (labelled “ETHERNET”):
point-to-
point connection from the unit and the panceph sensor to the host PC.
