External signalling lights

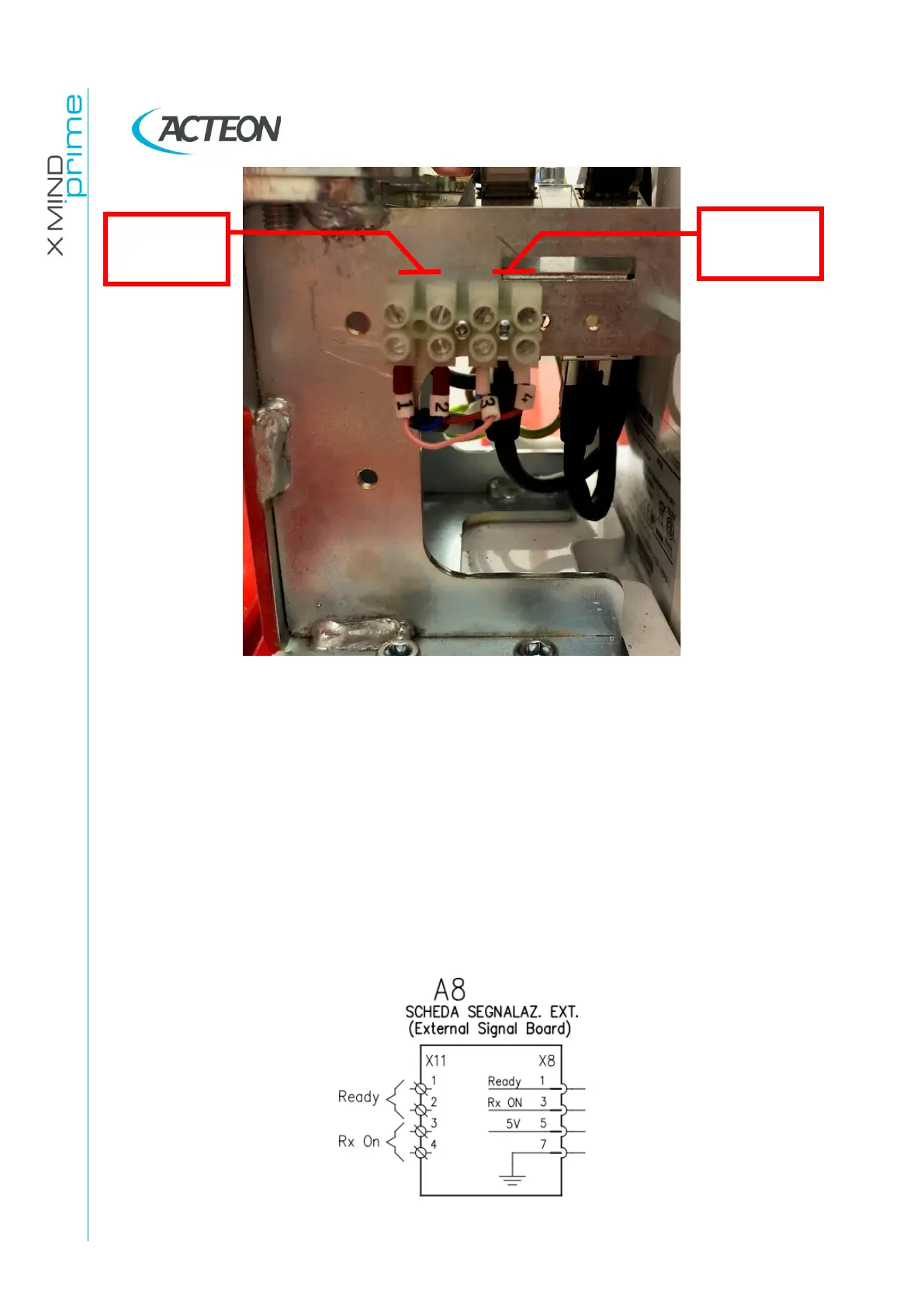

Connections are located on the right side of the unit.
•
READY light
: The signal is active when the unit is ready to perform the exam.
Normally Open dry Contact, maximum load 24V, 40W. Contacts X11-1 and X11-
2
•
X-RAY ON light
: The signal is active during X-Ray emission. Normally Open dry
Contact, maximum load 24V, 40W. Contacts X11-3 and X11-4
The unit only provides dry contacts only. Power supply for the relevant devices has
to be provided externally, making sure not to exceed the indicated ratings.
