2.2.6 Pulse Measurement
2-40
11. Press and tto select 3) Meas Delay. Press to enter the Input/Run
level.
12. Press 123..., 3 and ENTER in order.
Tdl is set to 3 ms.
13. Press and to select 4) Pls Width. Press to enter the Input/Run level.
14. Press 123..., 5, 0 and ENTER in order.
Tw is set to 50 ms.
15. Press and to select 5) Period. Press to enter the Input/Run level.
16. Press 123..., 1, 3, 0 and ENTER in order.
Tp is set to 130 ms.
17. Press MENU.
The HOME screen is displayed.

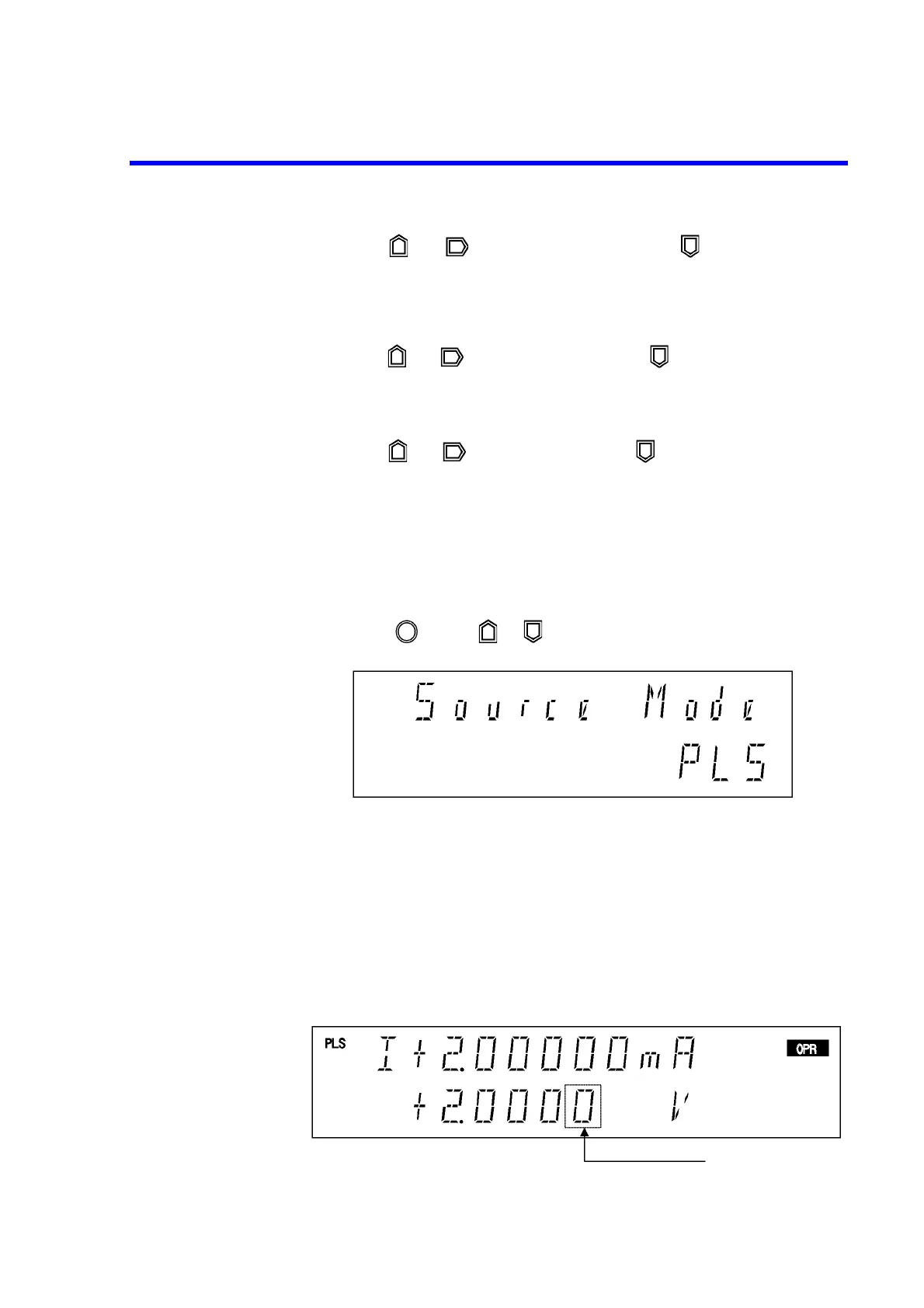

18. Press MODE.
19. Rotate or press or to select PLS.
Current measurement with the pulse value
20. Press ENTER.
The HOME screen is displayed.
21. Press OPR.
The Operate status is set.
The measured current value with the pulse value of 2 V (Point A in Figure 2-16)
is displayed.
Cursor (blinking)
