Agilent Technologies 8753ET Service Guide

2-84 Chapter 2
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests

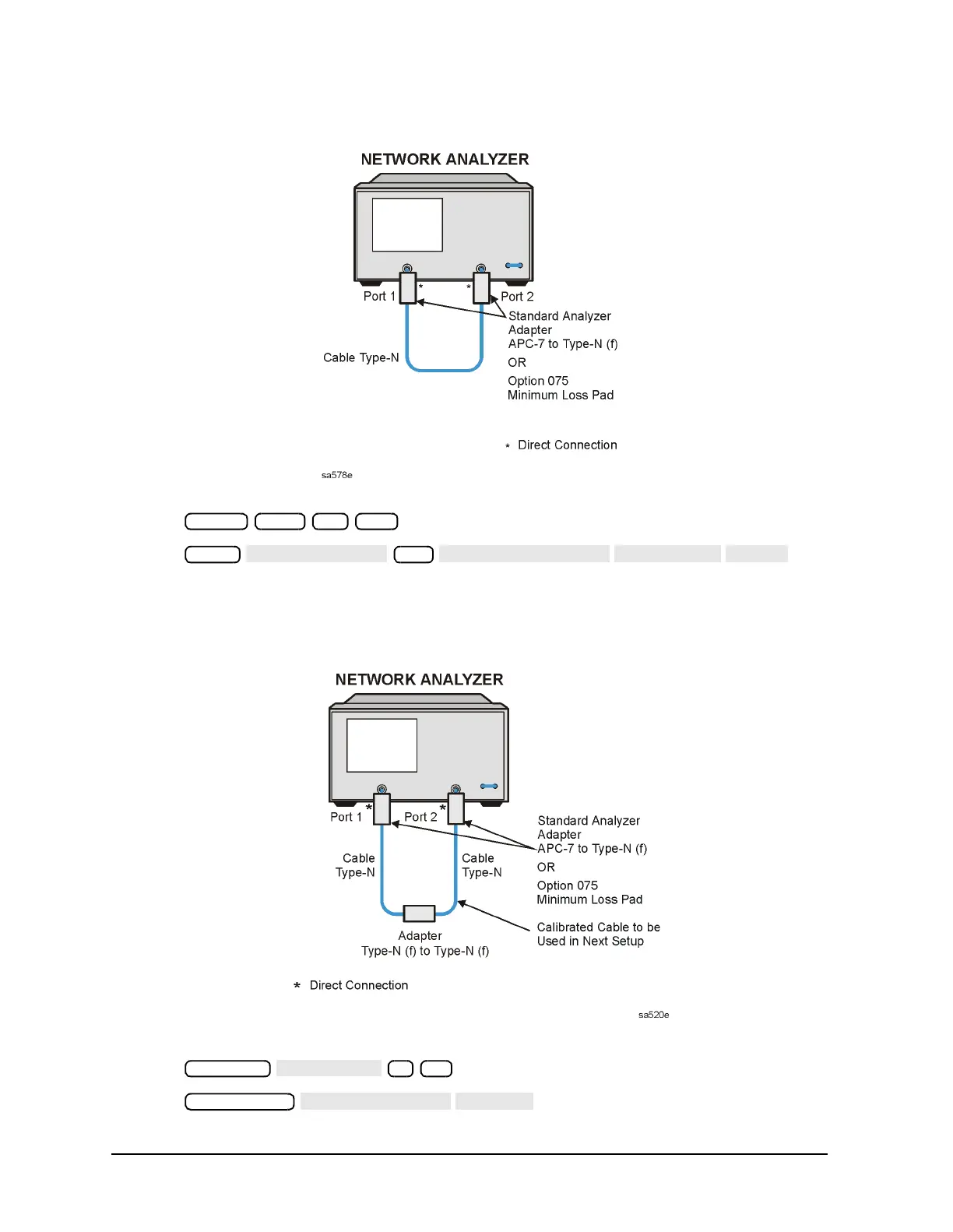

Figure 2-46 Harmonic Measurement Accuracy, Cable Loss Setup 1
2. Press .
3. Press .
4. Disconnect the cable from Test Port 2. Connect the type-N (f) to type-N (f) adapter to the
end of the cable and attach the second type-N cable as shown in Figure 2-47.
Figure 2-47 Harmonic Measurement Accuracy, Cable Loss Setup 2
5. Press .
6. Press .
Preset Start 40 M/µ
Meas
Trans: S21 (B/R)
Cal
CALIBRATE MENU
RESPONSE
THRU
Scale Ref
SCALE/DIV
1 x1
Sweep Setup
TRIGGER MENU
SINGLE
