2-90 Chapter 2
System Verification and Performance Tests
Agilent 8753ET System Verification and Performance Tests

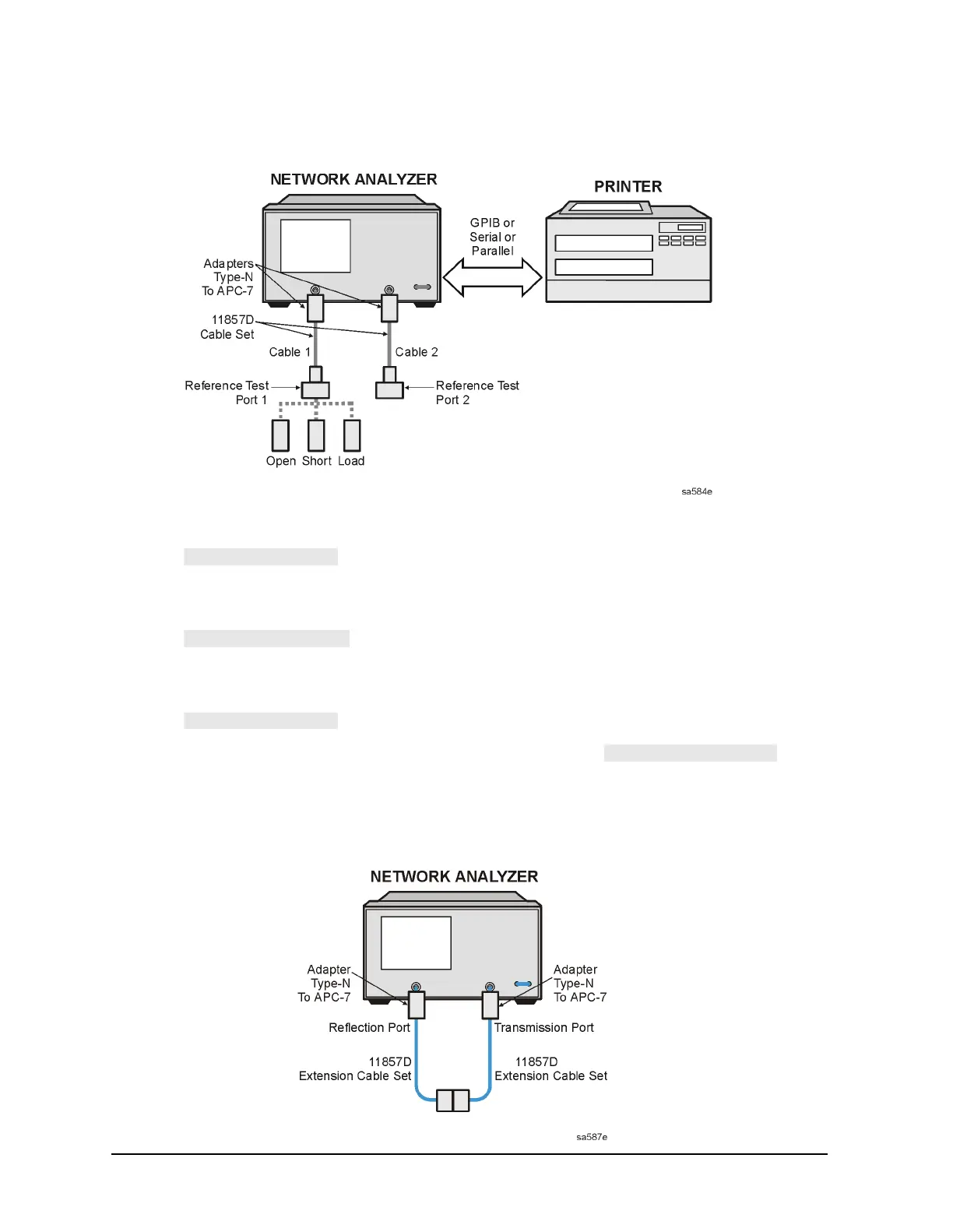

Figure 2-50 Connections for Measurement Calibration Standards
16.Press .
17.When the analyzer finishes measuring the standard, connect the “short” end of the
open/short combination to reference test port 1.
18.Press .
19.When the analyzer finishes measuring the standard, connect the 50 ohm termination
(supplied in the calibration kit) to reference test port 1.
20.Press .
21.When the analyzer finishes measuring the standard, press .
22.Remove the 50 ohm termination from reference test port 1 and connect both reference
test ports together as shown in Figure 2-51.
Figure 2-51 Transmission Calibration Setup
