Chapter 2 2-135
System Verification and Performance Tests
Agilent 8753ET System Verification and Performance Tests
33.Connect the equipment as shown in Figure 2-77.

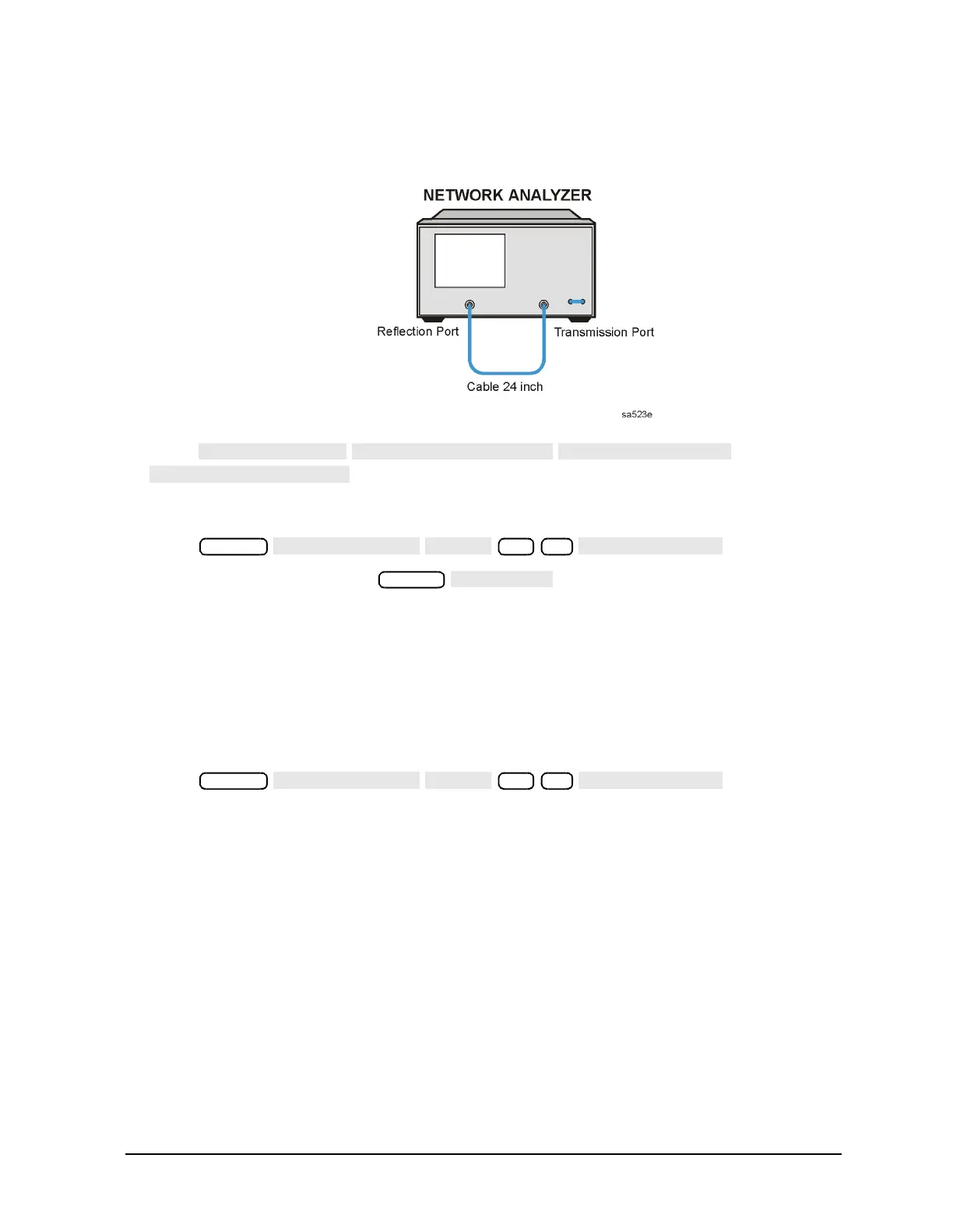

Figure 2-77 Transmission Calibration Test Setup
34.Press
.
Load Match (Forward) Calibration Coefficient
35.Press .
36.When the test is done, press .
37.Using the front panel knob, locate the maximum value of the data trace for the 300 kHz
to 1.3 GHz frequency range.
38.Write the maximum value on the performance test record.
39.Repeat the previous two steps for the other frequency ranges listed on the performance
test record.
Transmission Tracking (Forward) Calibration Coefficient
40.Press .
41.When the analyzer finishes the test, repeat steps 37 through 39.
In Case of Difficulty
1. Check the condition of the connectors and cables.
System
36 x1
Marker
System
37 x1
To Next Page
