2-134 Chapter 2
System Verification and Performance Tests
Agilent 8753ET System Verification and Performance Tests
Second Enhanced Response Calibration
23.Connect the equipment as shown in Figure 2-76.

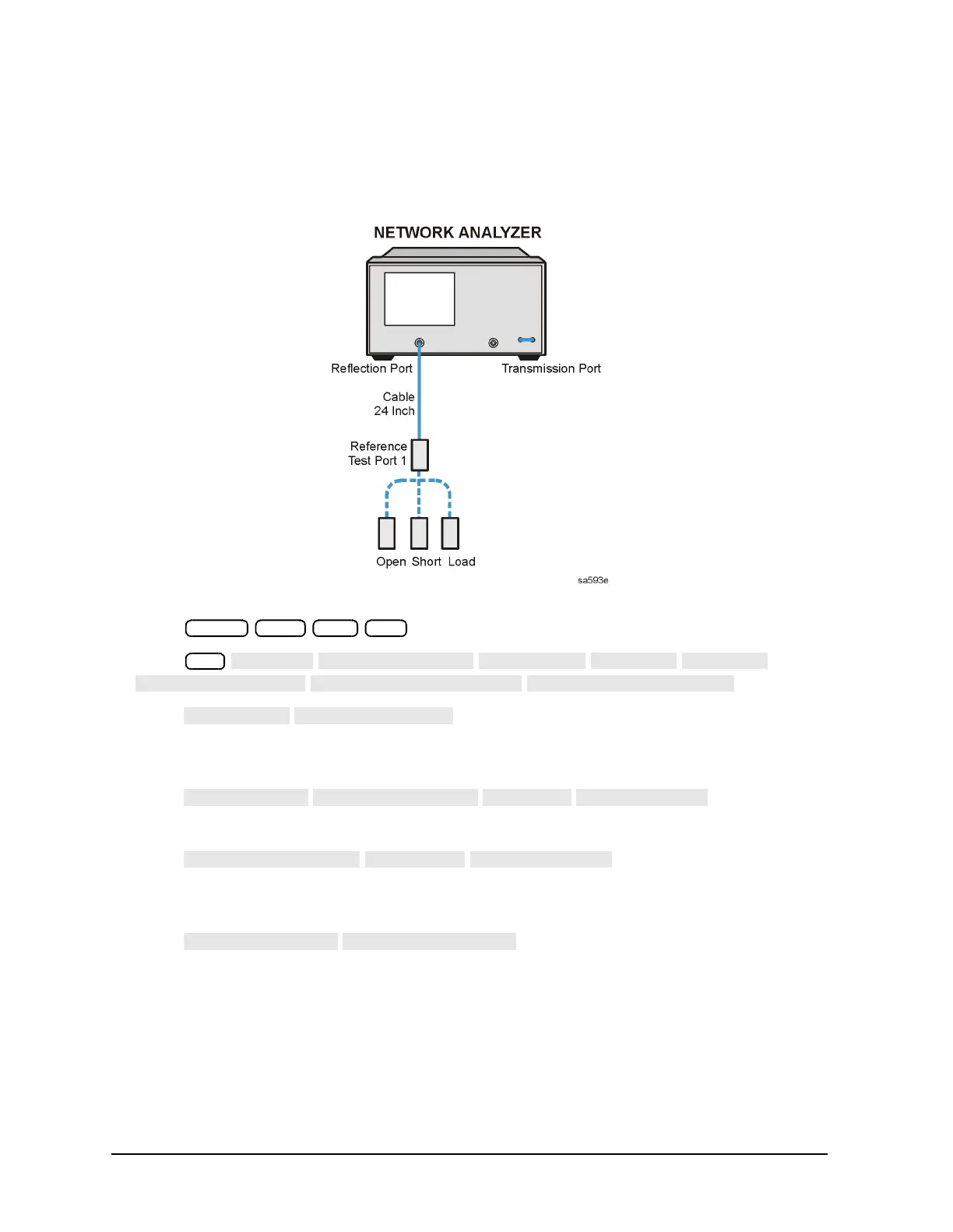

Figure 2-76 Second Enhanced Response Calibration
24.Press .
25.Press
.
26.Press .
27.Connect the OPEN (supplied in the calibration kit) to reference test port 1. Use the pin
extension provided in the calibration kit.
28.Press .
29.Connect the SHORT to reference test port 1.
30.Press .
31.Connect the 50 ohm termination (supplied in the calibration kit) to reference
test port 1.
32.Press .
Preset Start 300 k/m
Cal
CAL KIT
SELECT CAL KIT
N 50
85032
RETURN
RETURN
CALIBRATE MENU
ENHANCED RESPONSE
TRAN/REFL ENH. RESP.
ISOLATION
OMIT ISOLATION
REFLECTION
FORWARD:OPENS
OPEN(M)
DONE: OPENS
FORWARD:SHORTS
SHORT(M)
DONE: SHORTS
FORWARD:LOAD
STANDARDS DONE
