System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests
c. Press .
d. Press to terminate the first calibration factor data point entry.
e. To enter the second cal factor data point, press .
f. Press .
g. Press .
h. To terminate the second calibration factor data point entry, press .
i. Press and use the front panel knob to scroll through the sensor
calibration factors table. Check to be sure all values are entered correctly. If you see
an error, use the front panel knob to point to the data point you want to modify and
press .
13.Press the appropriate softkeys to create a power sensor calibration factors table.
14.Press to exit the sensor calibration factor entries menu.
15.Press to start the power meter
calibration.
NOTE The analyzer displays the PC annotation, indicating the power meter
calibration is active.
Output Power Linearity Measurement: 300 kHz to 3 GHz
1. Set up the equipment as shown in Figure 2-12.

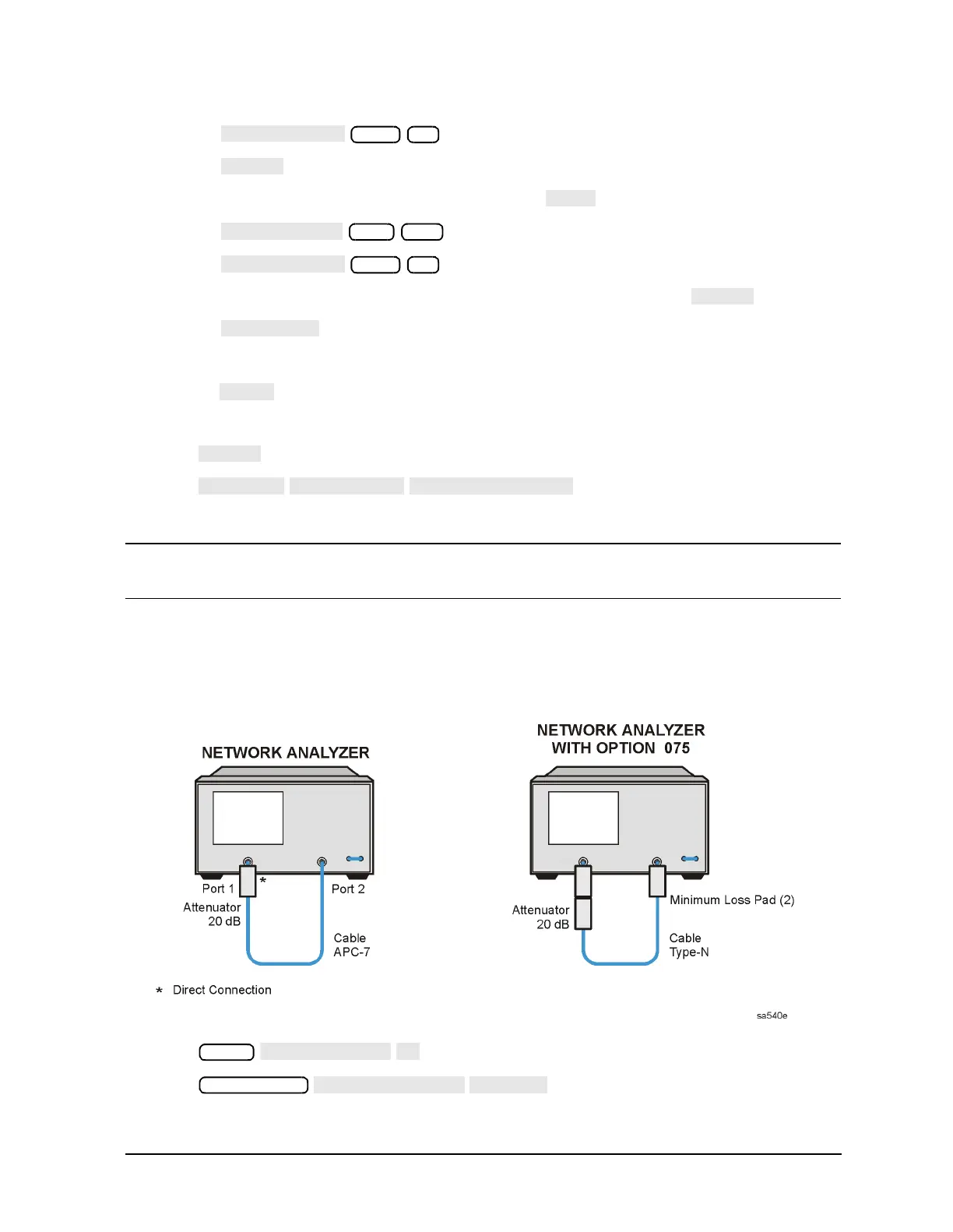

Figure 2-12 Test Port Output Power level Linearity Test Setup
2. Press .
3. Press .
96.4 x1
300
98.4 x1
Meas
To Next Page
