Chapter 2 2-41
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests

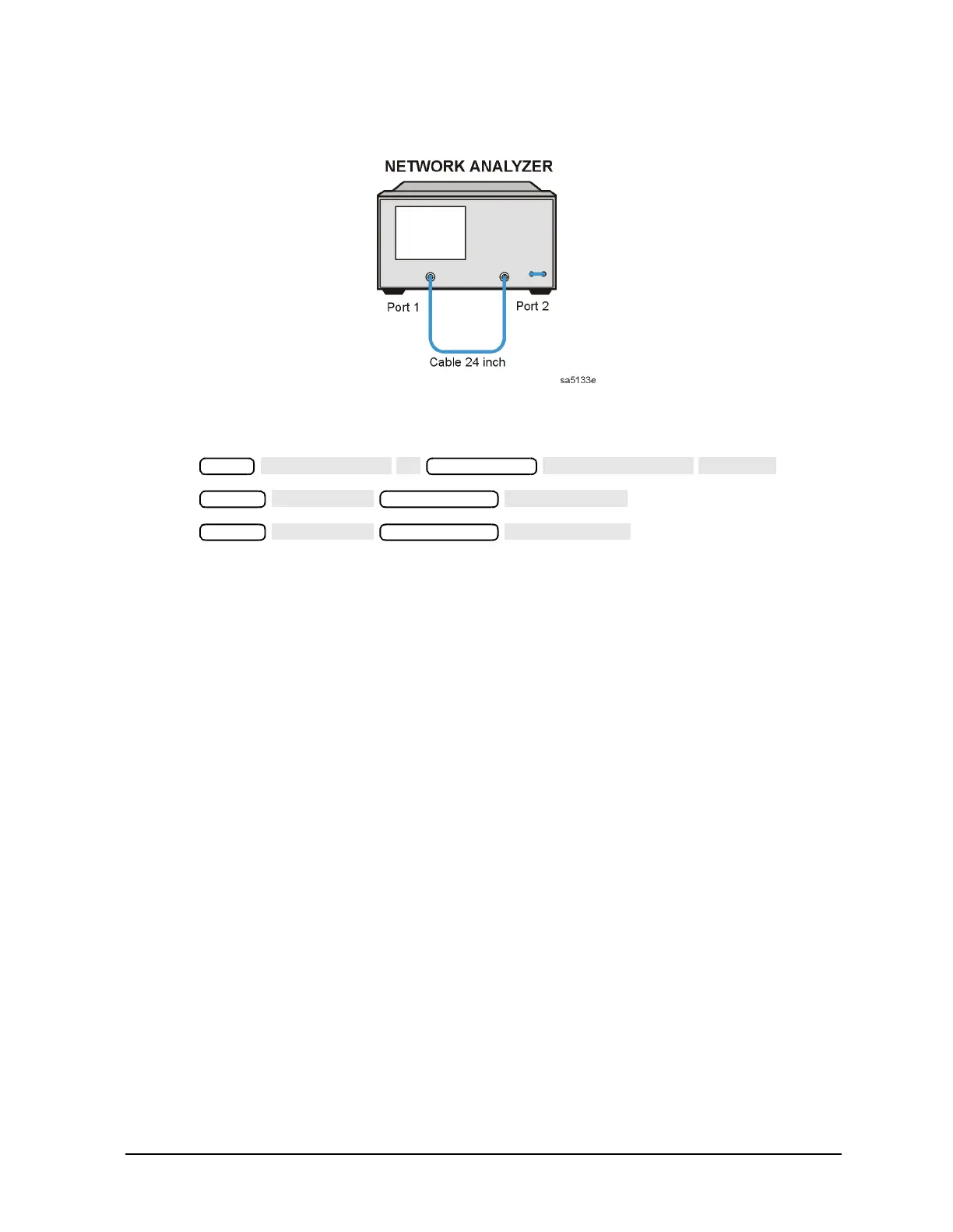

Figure 2-21 Test Port 1 Input Frequency Response Test Setup
Test Port 1 Input Frequency Response from 300 kHz to 3 GHz
26.Press .
27.Press .
28.Press .
29.Write the marker 1 or marker 2 reading, whichever has the larger absolute magnitude,
in the performance test record.
30.If your analyzer does not have Option 006, this completes the performance test. If your
analyzer has Option 006, continue with the next sections.
Power Meter Calibration for Test Port 2 from 3 GHz to 6 GHz (Option 006 only)
31.Replace the power sensor with the 8481A, and then set up the power meter:
a. Cycle the line power for the power meter.
b. Zero and calibrate the power meter with the new sensor.
32.Connect the equipment as shown in Figure 2-22.
