Agilent Technologies 8753ET Service Guide

2-40 Chapter 2
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests
Power Meter Calibration for Test Port 2 from 300 kHz to 3 GHz
22.Connect the equipment as shown Figure 2-20.

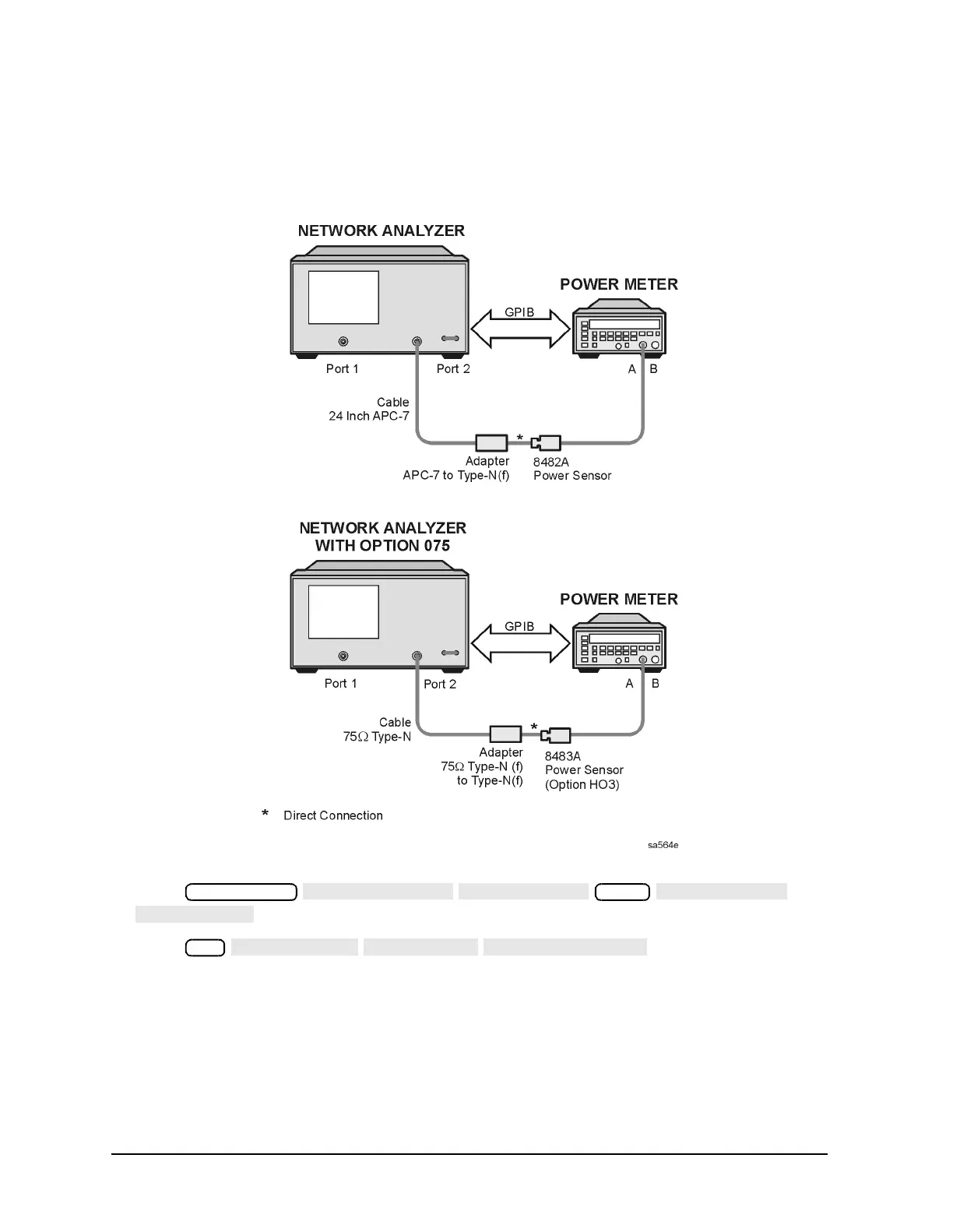

Figure 2-20 Setup for Power Meter Calibration on Test Port 2
23.Press
.
24.Press to start the power
meter calibration for test port 2.
25.When the analyzer displays the message POWER METER CALIBRATION SWEEP
DONE, connect the equipment as shown as in Figure 2-21.
Sweep Setup
TRIGGER MENU
CONTINUOUS
Meas
INPUT PORTS
TESTPORT 2
Cal
PWRMTR CAL
ONE SWEEP
TAKE CAL SWEEP
