Agilent Technologies 8753ET Service Guide

Chapter 2 2-47
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests
Crosstalk to Test Port 2 from 300 kHz to 3 GHz
1. Connect the equipment as shown in Figure 2-27. Use the shorts from the calibration kit.

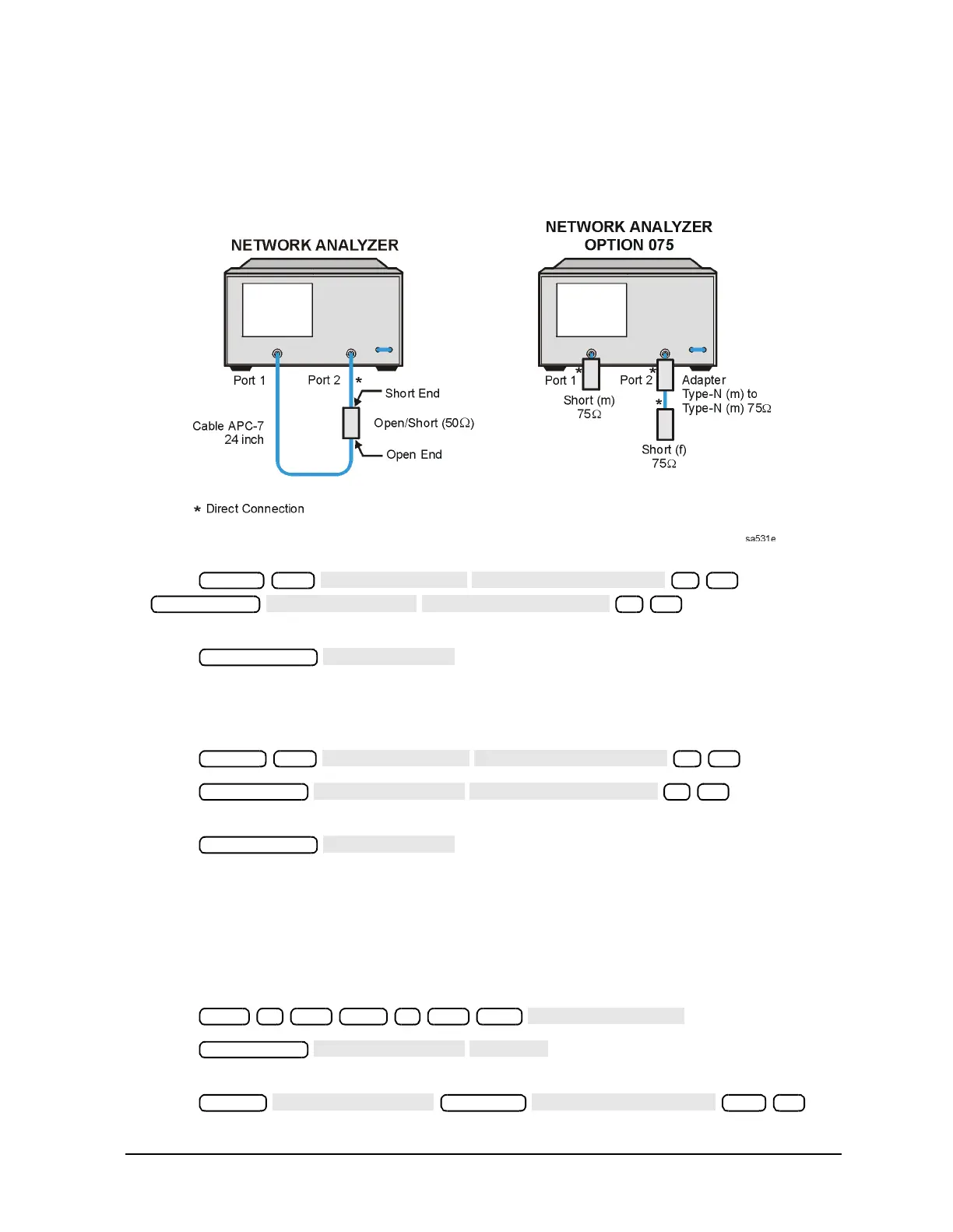

Figure 2-27 8753ES Crosstalk Measurement
2. Press
. Wait for the
sweeps to finish as indicated by the Hld indication on the left side of the display.
3. Press .
4. Write the marker value (which appears on the display) in the performance test record.
Crosstalk to Test Port 1 from 300 kHz to 3 GHz
5. Press .
6. Press . Wait for the
sweeps to finish as indicated by the Hld indication on the left side of the display.
7. Press .
8. Write the marker value (which appears on the analyzer display) in the performance test
record. This completes the test. If your analyzer has Option 006, proceed to the next
section.
Normalization from 3 GHz to 6 GHz (Option 006 only)
1. Set up the equipment again as shown in Figure 2-26 on page 2-46.
2. Press .
3. Press . Wait for the sweep to finish as
indicated by the Hld indication on the left side of the display.
4. Press .
Chan 1 Avg
AVERAGING ON
AVERAGING FACTOR
8 x1
Sweep Setup
TRIGGER MENU
NUMBER of GROUPS
8 x1
Marker Search
SEARCH: MAX
Chan 2 Avg
AVERAGING ON
AVERAGING FACTOR
8 x1
Sweep Setup
TRIGGER MENU
NUMBER of GROUPS
8 x1
Marker Search
SEARCH: MAX
Start 3 G/n Stop 6 G/n Avg
AVERAGING OFF
Sweep Setup
TRIGGER MENU
SINGLE
Display
DATA → MEMORY
Scale Ref
REFERENCE VALUE
−90 x1
