2-52 Chapter 2
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests
18.Connect the equipment as shown in Figure 2-30.

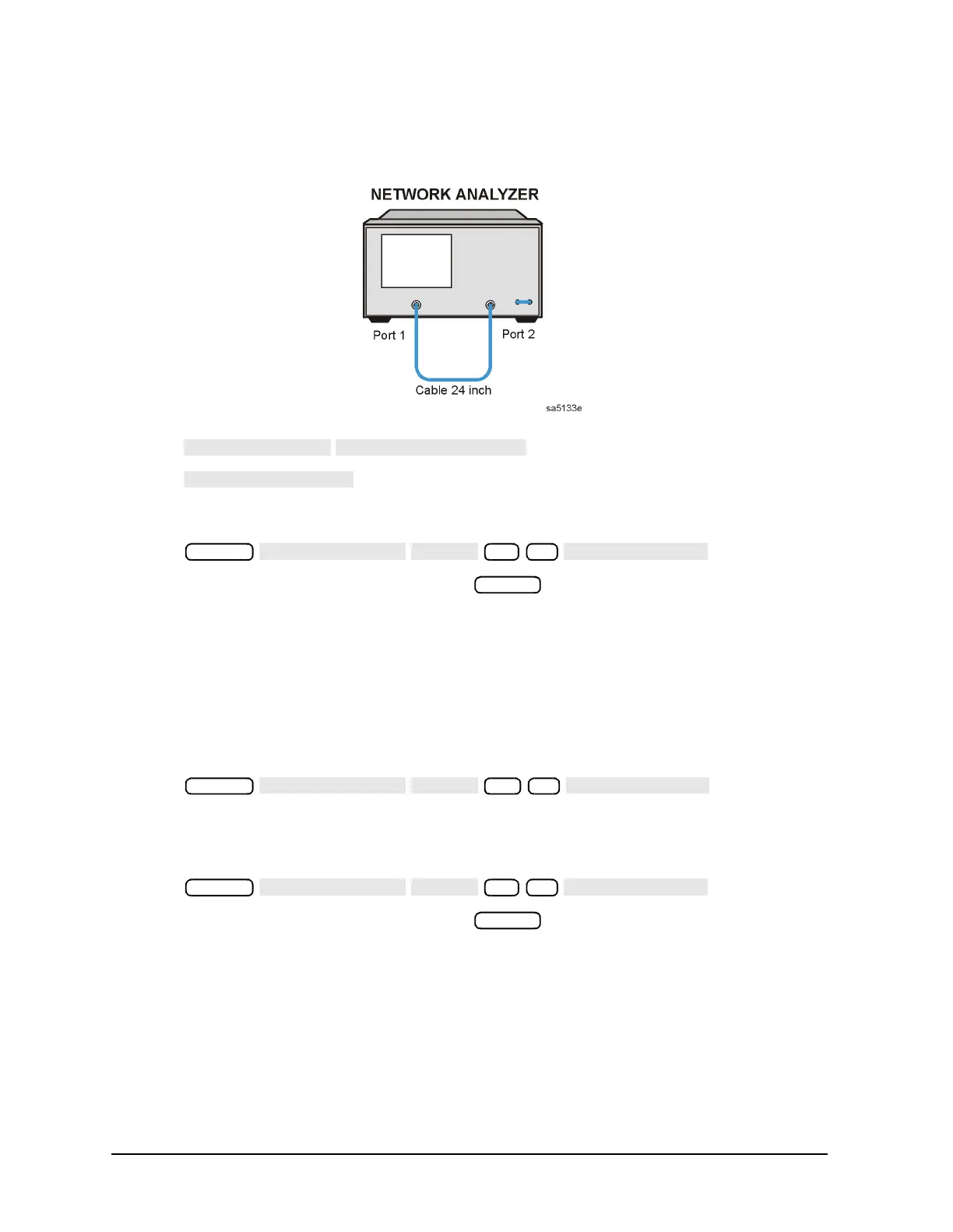

Figure 2-30 Transmission Calibration Test Setup
19.Press .
20.Press .
Directivity (Forward) Calibration Coefficient
21.Press .
22.When the analyzer finishes the test, press .
23.Using the front panel knob, locate the maximum value of the data trace for the 300 kHz
to 1.3 GHz frequency range.
24.Write the maximum value in the performance test record.
25.Repeat the previous two steps for the other frequency range(s) listed on the
performance test record.
Source Match (Forward) Calibration Coefficient
26.Press .
27.When the analyzer finishes the test, repeat steps 22 through 25.
Transmission Tracking (Reverse) Calibration Coefficient
28.Press .
29.When the analyzer finishes the test, press .
30.Using the front panel knob to move the marker along the data trace, locate the
maximum and minimum values for the 300 kHz to 1.3 GHz frequency range.
31.Enter the data trace value that is of greater deviation from zero into the performance
test record. (This is the greater absolute value of either the maximum data trace value
or the minimum data trace value.)
32.Repeat the previous two steps for the other frequency range(s) listed on the
performance test record.
TRANSMISSION
DO BOTH FWD + REV
DONE 2-PORT CAL
System
SERVICE MENU
TESTS
32 x1
EXECUTE TEST
Marker
System
SERVICE MENU
TESTS
33 x1
EXECUTE TEST
System
SERVICE MENU
TESTS
43 x1
EXECUTE TEST
Marker
