Chapter 2 2-65

System Verification and Performance Tests

Agilent 8753ES System Verification and Performance Tests

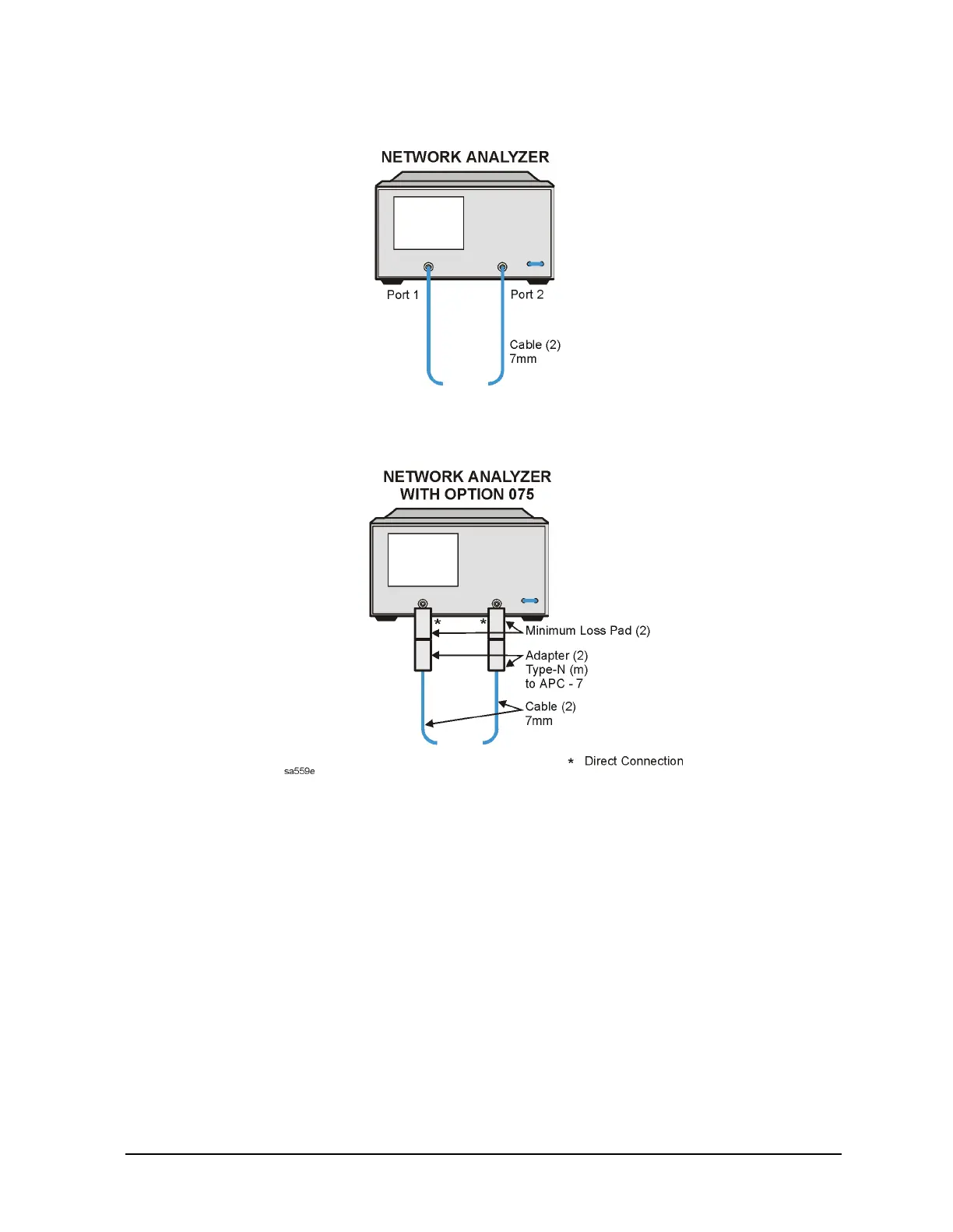

Figure 2-35 Full 2-Port Calibration

14.Perform a full 2-port error correction with isolation using the HP/Agilent 85031B cal

kit.
