2-66 Chapter 2
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests
Measure Test Port 2 Magnitude Dynamic Accuracy
15.Connect the equipment as shown in Figure 2-36. Confirm that the step attenuator is set
to 10 dB.

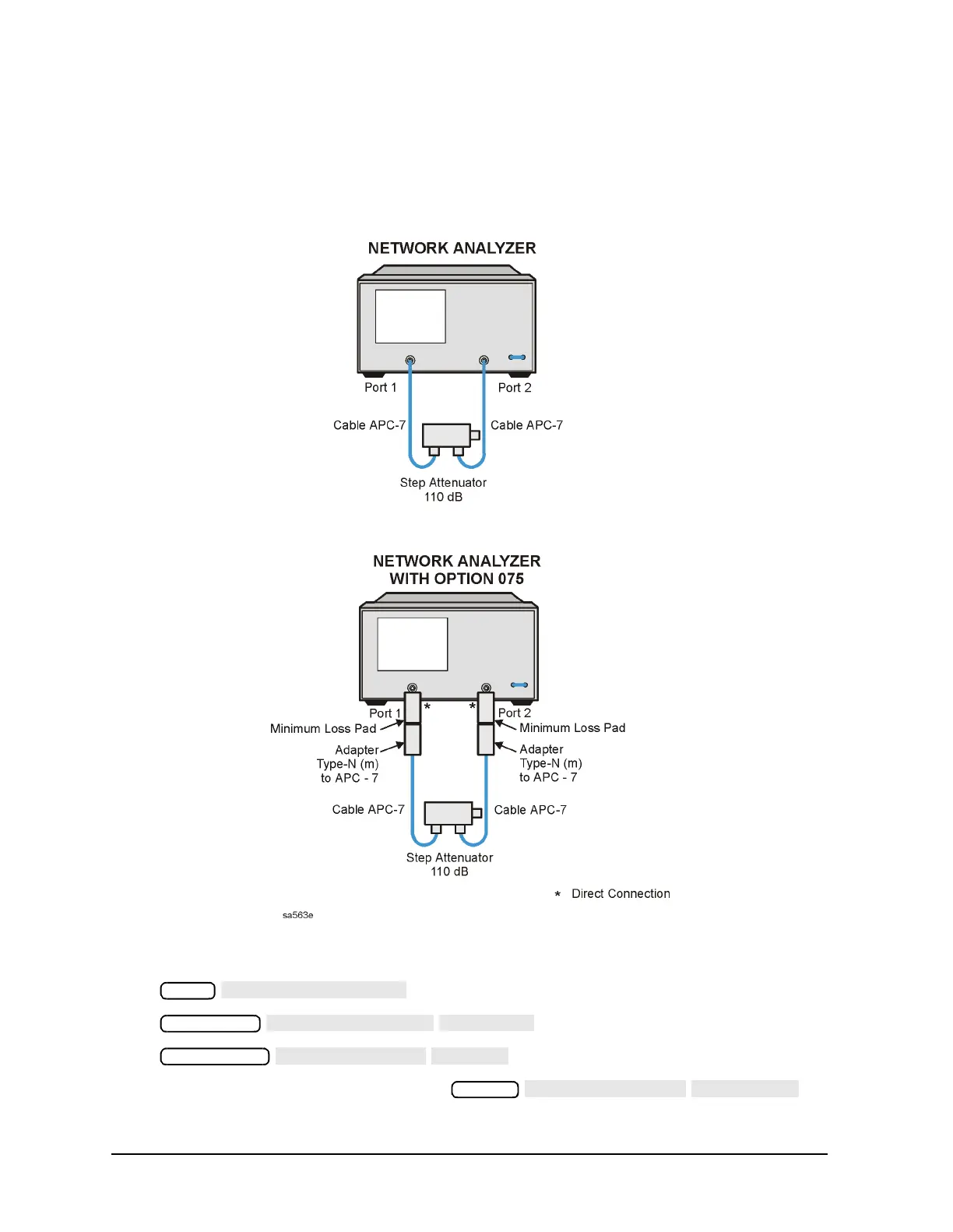

Figure 2-36 Magnitude Dynamic Accuracy Measurement
16.To set up the dynamic accuracy measurement, press the following:
•
•
•
17.Wait for the sweep to finish, then press .
Meas
Marker Fctn
Display
→
To Next Page
