274 Chapter 9
BERT
Measuring RF Loopback BERT with Option 300
Figure 9-4
10. Press
Amplitude > −95 > dBm.
The amplitude can also be set using an
Amplitude softkey, located in the Baseband BERT softkey menu, that
is accessed by pressing the
Aux Fctn > BERT > Baseband BERT softkeys.
11. Press
Mode Setup > RF On/Off.

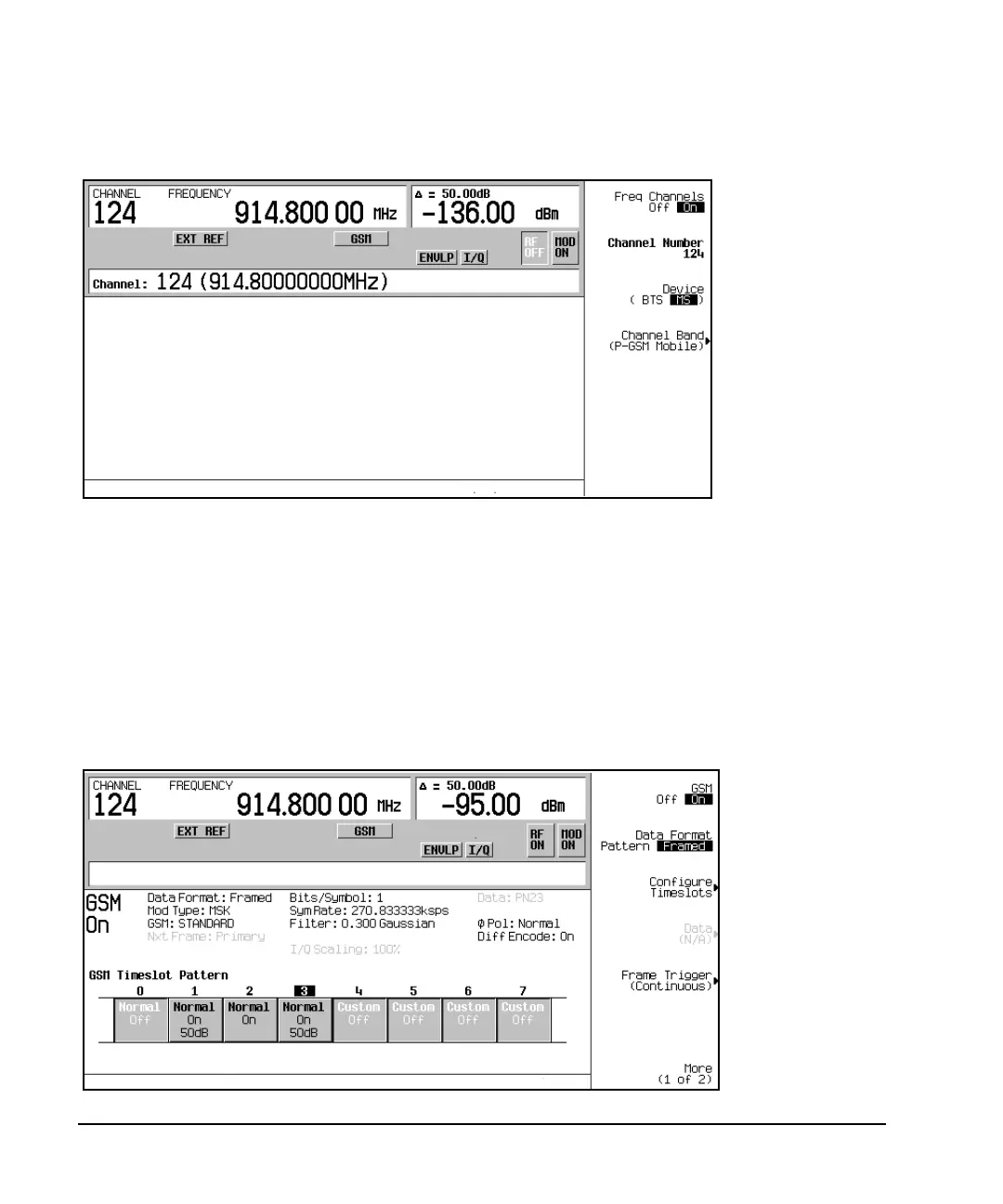

Refer to Figure 9-5. The screen now displays channels 1, 2, and 3 turned on and channels 1 and 3 with a
50 dB alternate amplitude setting. Also, the RF annunciator is turned on, and the new power level is
shown in the amplitude area of the display.
Figure 9-5
